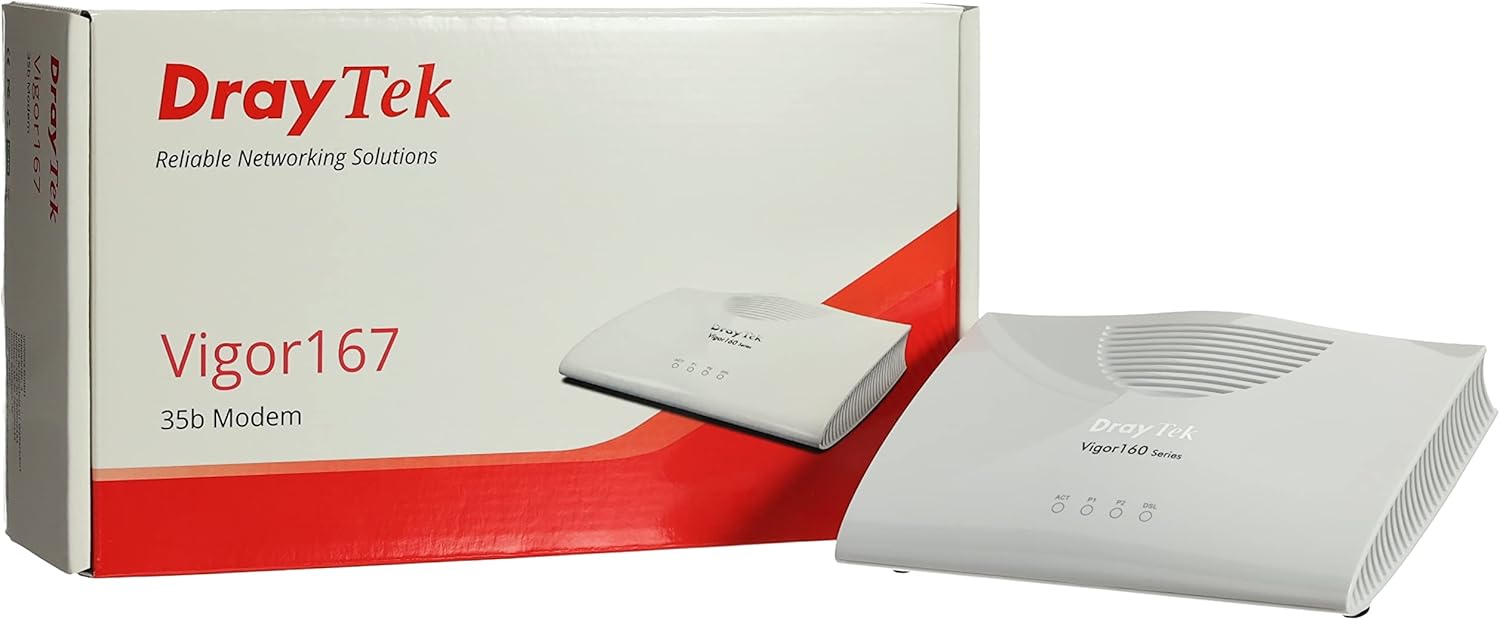

DrayTek Vigor 167 Supervectoring/VDSL2/ADSL2+ Modem DE-AT-CH White, Standard

Vigor 167 Supervectoring / VDSL / ADSL Modem The Vigor167 stands out for its versatile compatibility with most DSL variants and profiles. It supports from DSL Light to the most common VDSL and ADSL variants, such as profile 17a, with and without vectoring, to profile 35b supervectoring. In general, the conformity is additionally increased, hereby ITU-T G.992.1 ADSL G.dmt, G.992.3 ADSL2 G.dmt.bis, G.992.5 ADSL2+, G.993.1 VDSL, G.993.2 VDSL2, G.993...2 VDSL2,G.993....2 VDSL2, G.993....2 VDSL5 Vector. ing, G.997.1 supported. ANSI T1.413 Issue2 and VDSL Band Plan 997,998 are also ready and the VDSL profiles are taken into account: 8a, 8b, 8c, 8d, 12A, 12b, 17a, 30a and 35b. The connection options Annex A, Annex B, Annex J, Annex M, Annex Q are of course also part of the repertoire and the Vigor167 also masters the valback to the ADSL2/2+ standards and the compatibility with POTS / PSTN. It should also be noted that with regard to ADSL, both the variants Annex-A and Annex-B have been combined for the first time in one device, which also increased the possibilities of use of the modem even further. As a result, the Vigor167 complies with most connection variants. Only the G.fast option is reserved for the Vigor166 within the Vigor160 family. The modem also has two Gigabit Ethernet LAN ports and the device is included in addition to the power supply also the necessary connection cables, such as 1x RJ11 to RJ11, 1x TAE to RJ11 and 1x RJ11 to RJ45. The configuration and commissioning, as already widely known by the Vigor160 series, is still designed very simply and intuitively and does not present the user with unnecessary challenges so that the modem can work in no time. Box contents: 1 x drill template for wall mounting, 2 x screws/2 x wall mounting dowels, 1 x power supply, 1 x Ethernet cable, 1 x quick start guide (English language not guaranteed)

• Supports ITU-T G.992.1 ADSL G.dmt, G.992.3 ADSL2 G.dmt.bis, G.992.5 ADSL2+, G.993.1, VDSL, G.993.2 VDSL2, G.993.5 vectoring, G.997.1
• Supports VDSL profiles 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b
• ANSI T1.413 Problem 2
• VDSL Bandplan- 997, 998
• Supports the fall back to the ADSL2/2+ standard
• Note that by default, the device is preconfigured as modem only, and VLAN tag 7 is already set by default. Your Netgear router must therefore be configured with PPPoE dial-up and there should be NO VLAN TAGGING enabled on it (otherwise you would have marked the line twice).
