DVI VGA LVDs Display Controller Board for 21.5" 23" 27 inch 1920x1080 30 Pin LCD Screen Panel
4.5 (15 items)
Limited Time Sale$14.87 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211055564 | Release Date | 2026/04/04 | List Price | $9.92 | Model Number | 211055564 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

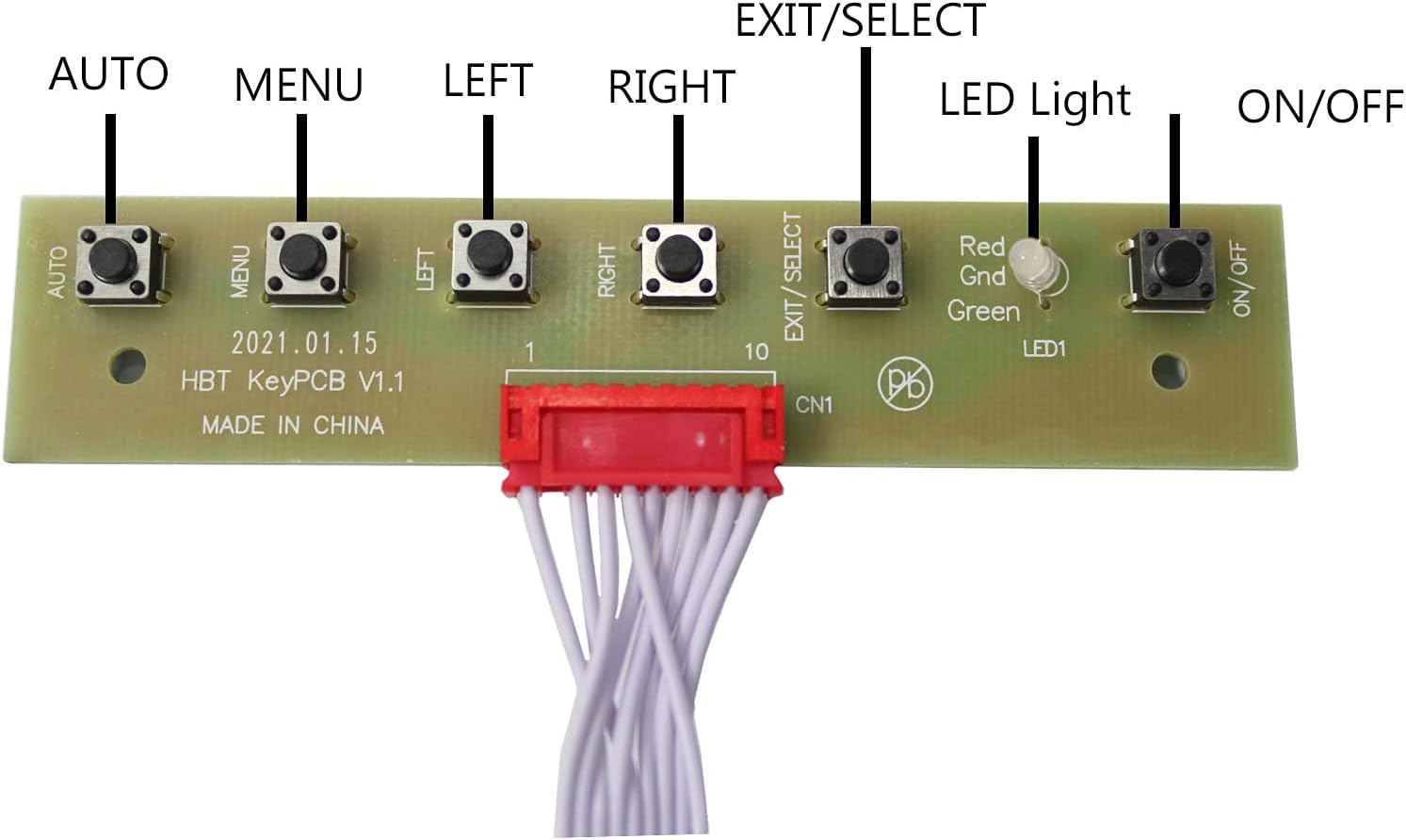

LCD Controller Board: DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Video Input: DVI VGA Audio Input: H/D Audio Output: Speaker Connector OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 125mm x 53mm x 17mm Compatible Work With: 21.5inch 1920x1080: HM215WU1-500 M215HGE-L10 M215HGE-L21 M215HW01 VB M215HW02 V0 M215HW03 V1 M215HW03 V2 M215HTN01.1 M215HGE-L21 LM215WF3-SLK1 LM215WF3-SLC1 T215HVN01.0 M215HW02 V0 23inch 1920x1080: LM230WF5-TLF1 LM230WF5-TLF2 LM230WF5-TLF4 LM230WF5-TLE1 LM230WF5-TLH1 23.6inch 1920x1080: M236HGE-L10 M236HGE-L20 27inch 1920x1080: M270HW02 Packing list: 1× VGA DVI LCD Controller Board 1× Inverter Board 1× LVDS Signal Cable 1× Keyboard With Cable
- Video input: VGA DVI ,Audio Output: Speaker Connector (8ohm 2W 70x33x15mm 4Pin PH2.0 connection), if you need protect box for this board ,You can find:Acrylic Case Acrylic Material for M.NT68676
- Input power adapter (should be prepared by yourself) : 12Vdc More than 2A.Port size :5.5x2.1mm .(current is decided by screen power ,If the current is small ,the screen maybe can't be lit up ,or restart again and again.)
- Compatible screen model no.: HM215WU1-500 M215HGE-L10 M215HGE-L21 M215HW01 VB M215HW02 V0 M215HW03 V1 M215HW03 V2 M215HTN01.1 M215HGE-L21 LM215WF3-SLK1 LM215WF3-SLC1 T215HVN01.0 M215HW02 V0 LM230WF5-TLF1 LM230WF5-TLF2 LM230WF5-TLF4 LM230WF5-TLE1 LM230WF5-TLH1 M236HGE-L10 M236HGE-L20 M270HW02
- Plug and play: Connecting the cables and ports according to link picture details ,Power on ,Button light become green,Then plug signal ,with correct resolution ,the screen can work well.
- The function for this board is to light up the screen. Please use in insulated environment. Before purchasing, Pls confirm your Display model firstly, which mark at the back side of the panel label,need to open the rear case to check.If you can't make sure ,Pls confirm with us via Amazon message
| UPC | 601285612447 |
|---|---|
| Brand | LCDBOARD |
| Color | Green |
| Finish | Hdmi |
| Unit Count | 1.0 Count |
| Item Weight | 0.13 Kilograms |
| Manufacturer | LCDBOARD |
| Model Number | HM215WU1-500 |
| Input Voltage | 12 Volts |
| Connector Type | DVI, VGA |
| Current Rating | 2 Amps |
| Number of Items | 1 |
| Number of Ports | 1 |
| Power Plug Type | No Plug |
| Package Quantity | 1 |
| Compatible Devices | Keyboard, Speaker |
