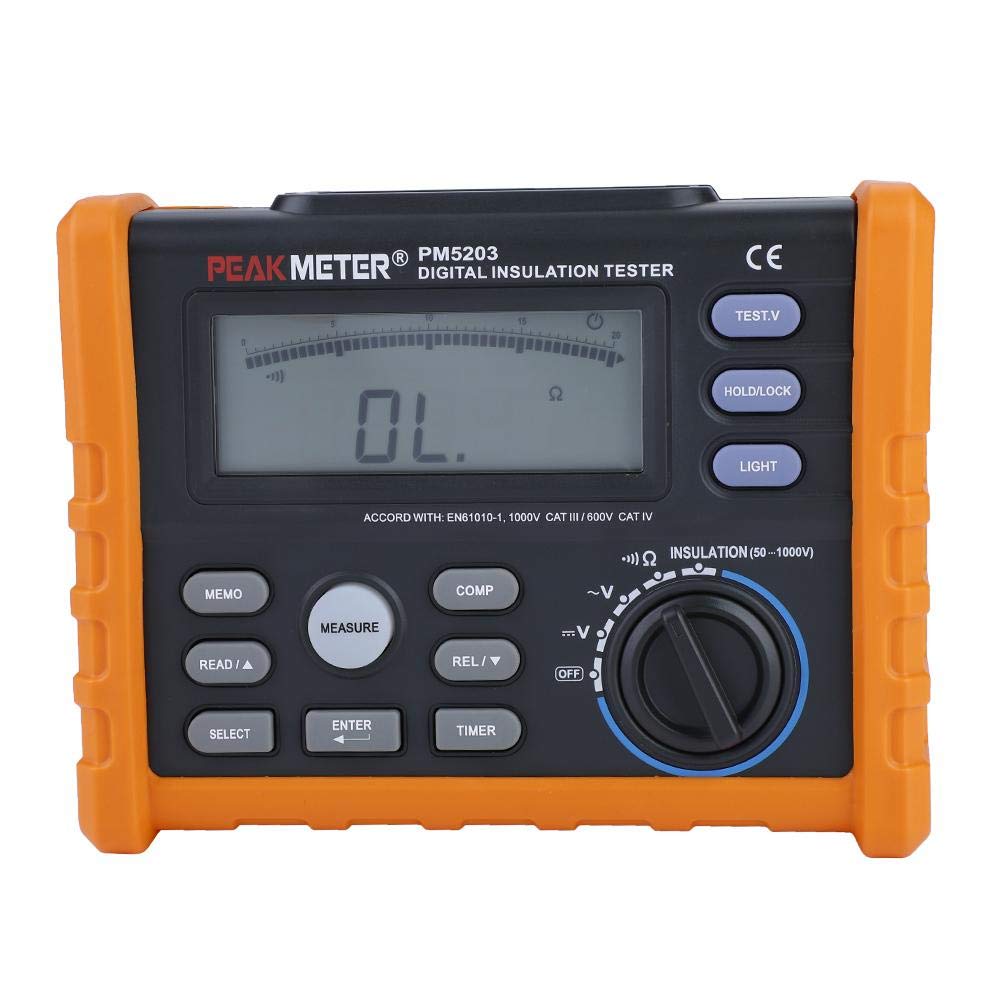

Earth Tester PM5203 Digital Insulation Tester Megohmmeter AC DC Voltage Tester Analog Display 50-1000V Meter Automatic Calculation

Specification: Technical Parameter Insulation Test: Output Voltage:50V(0 %~+20%) ,Measuring Range:0.01MΩ~50MΩ ±(3%+5) Output Voltage:100V (0%~+20%),Measuring Range:0.01MΩ~100MΩ ±(3%+5) Output Voltage:250V (0%~+20%),Measuring Range:0.01MΩ~250ΩM ±(3%+5) Output Voltage:500V (0%~+20%),Measuring Range:0.01MΩ~500MΩ ±(3%+5), 1.00GΩ~5.00GΩ±(5%+0.1GΩ) Output Voltage:1000V (0%~+20%) ,Measuring Range:5.00GΩ~10.00GΩ±(10%+0.2GΩ) Multimeter Functions DC Voltage Test :Measuring Range:0.1~1000V±0.5% AC Voltage Test:Measuring Range:0.1~50V±1% Continuity Test:Measuring Range:0.01Ω~200Ω±0.5% Short Circuit Current:1.8mA Characteristics Auto Calculate PI and DAR Data Storage/Loading Data Comparision Auto Discharge for Capacitive Load Timer Function for Insulation Test Lock Function For Insulation Test Low Battery Indication DC/AC Voltage Test Continuity Test Auto Power Off Digital and Analog Display General Parameter Brand :PEAKMETER Model :PM5203 Power Supply :6 x 1.5V Batteries (NOT included) Item Size :19*15*7cm / 7.48*5.91*2.76in Weight Approx.:1977g Safety Rating :CE CAT.III 1000V CAT 600V RoHS Package Includes: 1 x PM5203 Digital Insulation Tester 1 x User Manual 2 x Clips 2 x Test s 1 x Hand Bag 1 x Sling

• Material】This 5203 Earth tester is a professional instrument in detecting ground of the electrical equipment. Upgraded from the traditional ground meter with its circuit, structure and techniques. Now present as fashionable, and easy operational.
• 【Measurement Mode】Gear selection,you can choose the measurement range you want,so that you can use in many situations.Powered by 6 batteries (NOT included).This Earth tester also has Maximum/minimum/average measurement function.It Can also be used to AC/DC voltage measurement and continuity test. Automatic calculation of PI (polarization index) and DAR (dielectric absorption ratio).
• 【Easy Reading】This Digital megohmmeter has Large digital LCD and backlight applied to the meter facilitate users to read the information on LCD.Large-screen high-definition backlight: Press the backlight button to turn the backlight on or off.And this Earth tester Display: has analog bar and digital display function.Under voltage indication.This Earth Test the insulation with 50V-1000V voltage.
• 【Excellent Design】This grounding meter has double insulation for safer measurement.The multi-slot card-type protective sleeve is closely fitted with the meter, so that the meter is non-slip and anti-fall.The meter is capable of storing up to 28 groups of measurement data.Lock function: lock data during insulation test.Timing function: timing function during insulation test.Automatic discharge: the meter will automatically discharge when the load is capacitance.
• 【Widely Used】Resistance Meter Tester is small and easy to carry. Applicable to the shop, postal, railway, , chemical, communications, mining and other departments to measure the grounding of various devices,such as Suitable for high voltage tower measurement, grid grounding measurement, rod measurement.Check the insulation of high voltage electrical equipment such as motor, transformer, cable, etc.
