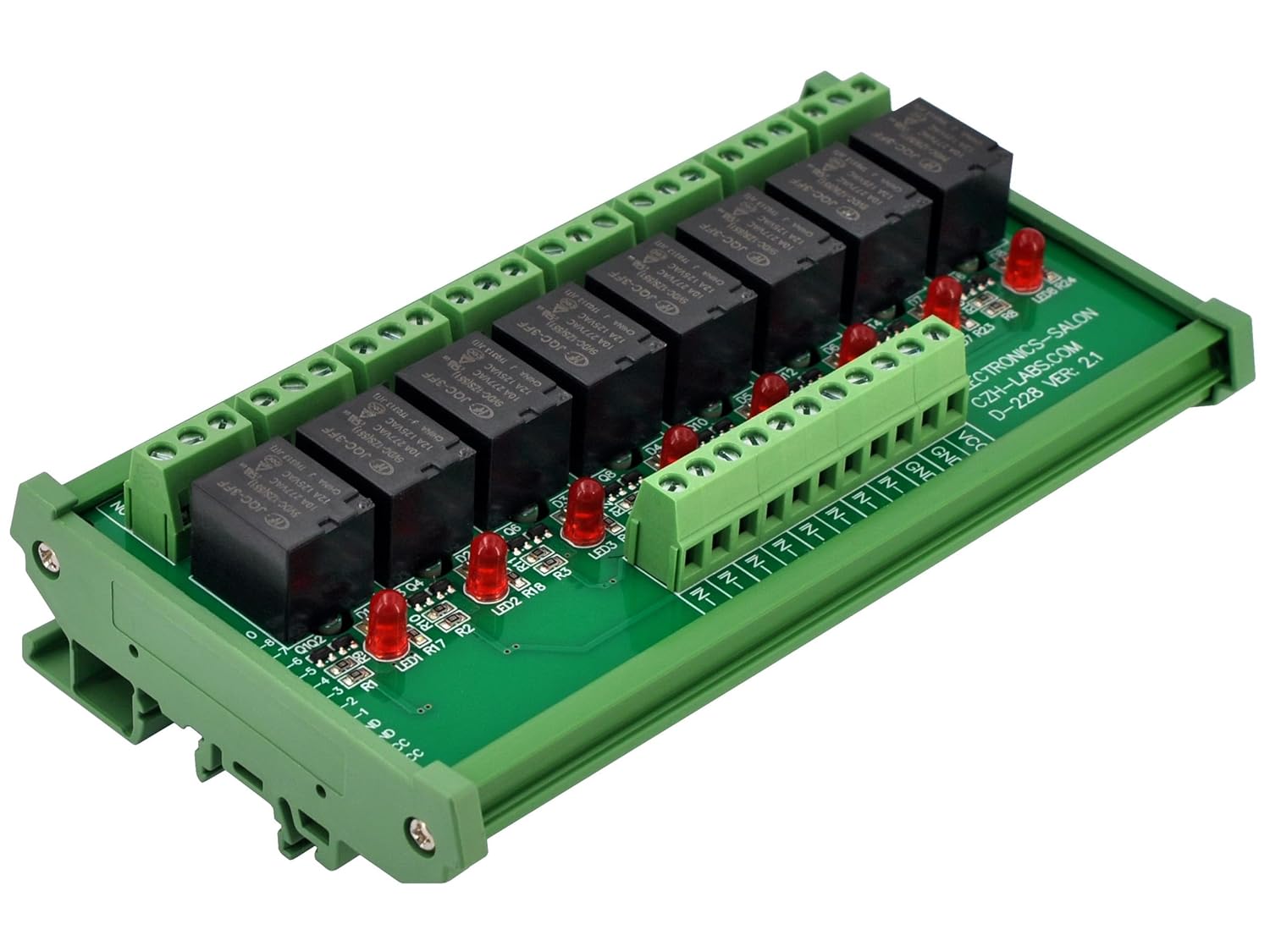

Electronics-Salon DIN Rail Mount 8 SPDT Power Relay Interface Module. (Operating Voltage: DC 5V)
4.4 (63 items)
Limited Time Sale$30.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211089599 | Release Date | 2026/04/04 | List Price | $20.00 | Model Number | 211089599 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
DIN Rail mount 8 Channel 10Amp SPDT Power Relay Module, DC 5V Version. JS1-5V-F Power Relays. LED indicator for each relay channel. Darlington transistors circuit driving relay, improve the reliability of action. DIN rail mount carrier: High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail. FR-4 fiber glass dual layers PCB. High quality terminal block: Pitch 5.0mm/0.197", Wire range 28AWG ~ 12AWG / 2.5mm square, Strip length 7mm. Screws - M2.5,steel,Cr3+ Zn plated. Pin header and Cage - Brass. External dimensions: 152 x 87 x 43mm(L x W x H).Operating Voltage / Current: DC 5V / 720mA. Input control signal voltage: 0V - 0.5Vdc, low level, relay not action. 2.5V - 24Vdc, high level, relay action. Input control signal high level current: 2.5V: 0.1mA. 5V: 0.35mA. 12V: 1.1mA. 20V: 1.9mA.Relay Specification: Part number: JS1-5V-F power relays. Contact Rating: 125VAC/250VAC 10Amp or 30VDC 5Amp.Wire connection: VCC: Power supply input. GND: Power supply ground and control signal ground. CH-x: Control signal input, Low: relay OFF, High: relay ON. COM / NO / NC: (Cx=COMx) . Control signal state low, the relay OFF, COM - NO disconnected, COM - NC connected. Control signal stage high, the relay ON, COM - NO connected, COM - NC disconnected.This is a very simple module board, no paper specifications, any questions, feel free to tell me. Datasheet: https://images-na.ssl-images-amazon.com/images/I/91AHtk3PT3L.pdf
- DIN Rail mount 8 Channel 10Amp SPDT Power Relay Module, DC 5V Version.
- JS1-5V-F Power Relays. LED indicator for each relay channel. Darlington transistors circuit driving relay, improve the reliability of action.
- DIN rail mount carrier: High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail. FR-4 fiber glass dual layers PCB.
- High quality terminal block: Pitch 5.0mm/0.197", Wire range 28AWG ~ 12AWG / 2.5mm square, Strip length 7mm. Screws - M2.5,steel,Cr3+ Zn plated. Pin header and Cage - Brass.
| Wattage | 50 watts |
|---|---|
| Brand Name | Electronics-Salon |
| Part Number | MD-D228T Series |
| Coil Voltage | 5 Volts |
| Contact Type | Normally Open |
| Manufacturer | Electronics-Salon |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw Terminals |
| Current Rating | 10 Amps |
| Operation Mode | Automatic |
| Contact Material | Silver |
| Specification Met | Din, Ma |
| Contact Current Rating | 10 Amps |
| Maximum Switching Current | 10 Amps |
| Maximum Switching Voltage | 5 Volts |
| Minimum Switching Voltage | 0.5 Volts (DC) |
