Emuca - Lot of 20 X91 Full Overlay Hinges with Soft Closing and Screw-on Staright Plates, Height 1, Steel, Nickel Plated

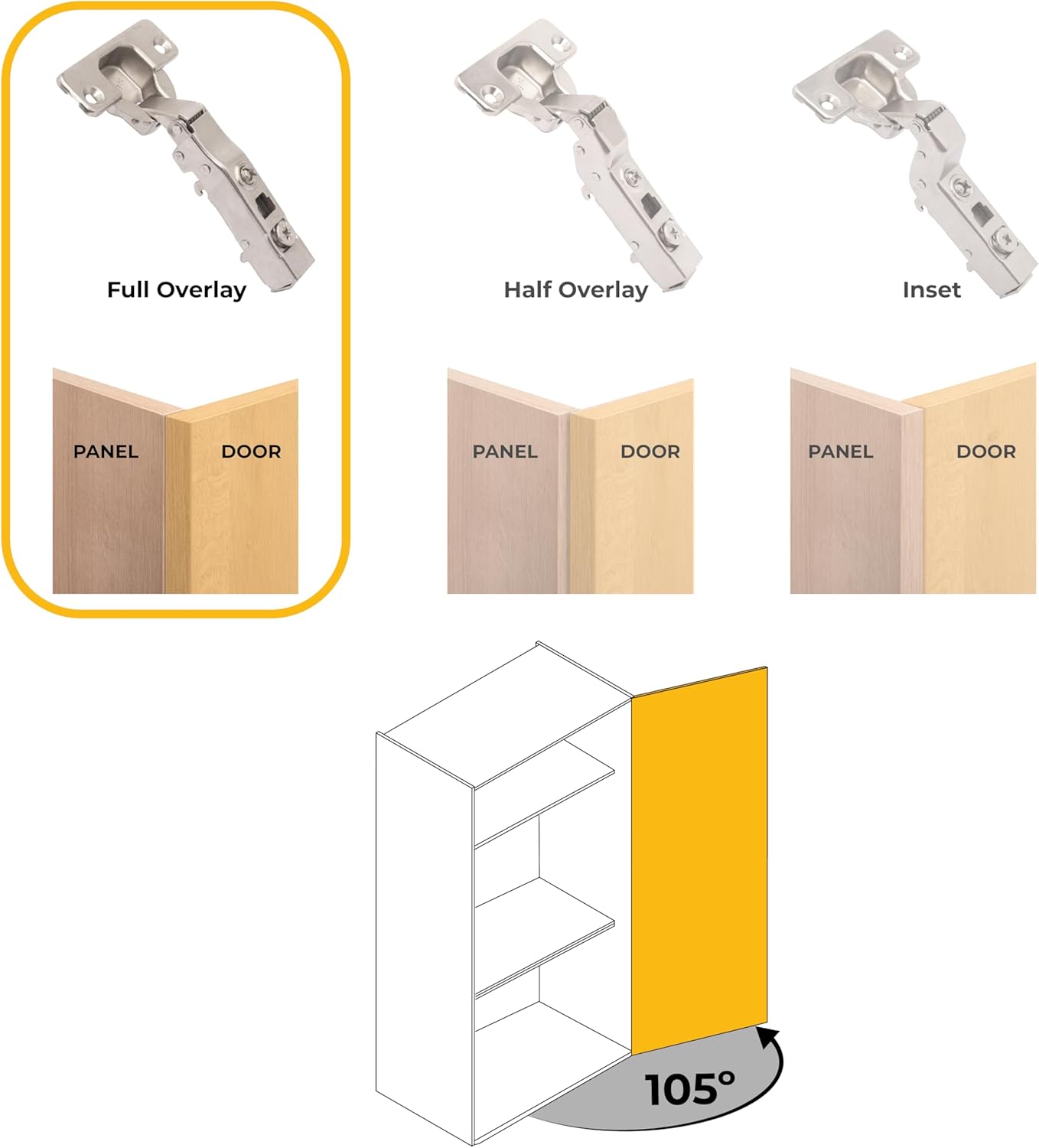

Lot of 20 full Overlay hinges with soft closing and staright plates for doors designed to fit out your kitchen, wardrobe, home, bathroom and office furniture with the highest quality at the best price. The hinges of the cup hinges stand out for their cushioning piston which provides soft closing of the door. They are available in a full overlay version with 105º opening of the door. Straight plate designed to attach the hinges to the module. Thanks to its dimensions, the straight plate remains hidden under the hinge arm. Furthermore, it is fully compatible with the hinge cover made of plastic. In order to install them you need to drill a 35mm hole beforehand for the concealed hinge. Fastening to the board is carried out using the screws included. Likewise, they stand out for their easy installation thanks to the automatic clip assembly system of the hinge to the plate. Also, both have eccentric screwing for quick and convenient adjustment.

• Lot of 20 full Overlay hinges with soft closing and staright plates.

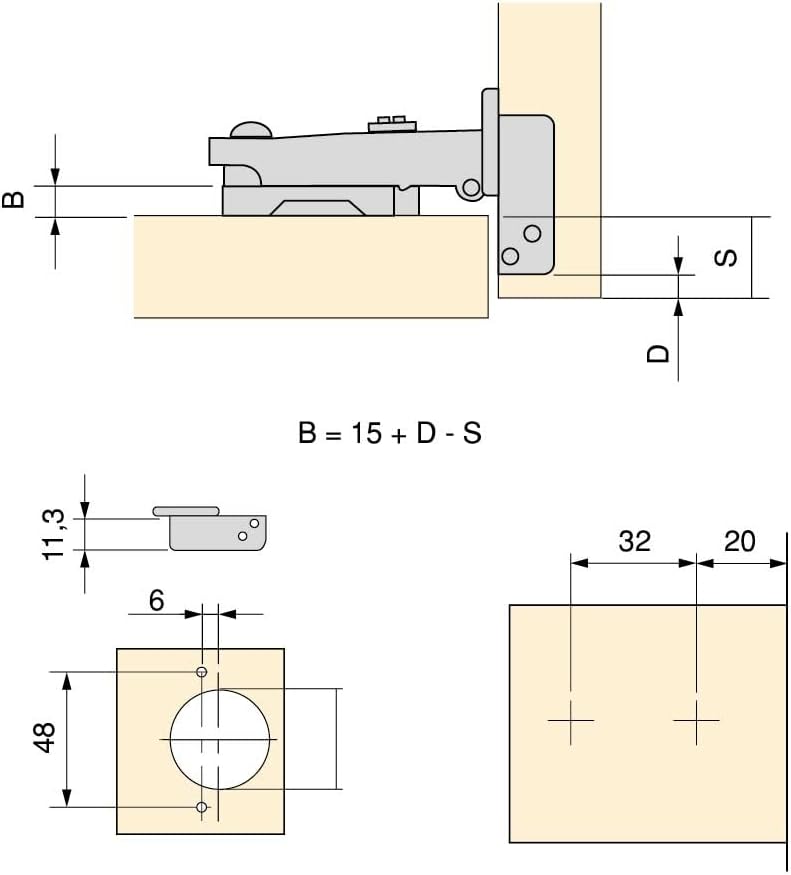

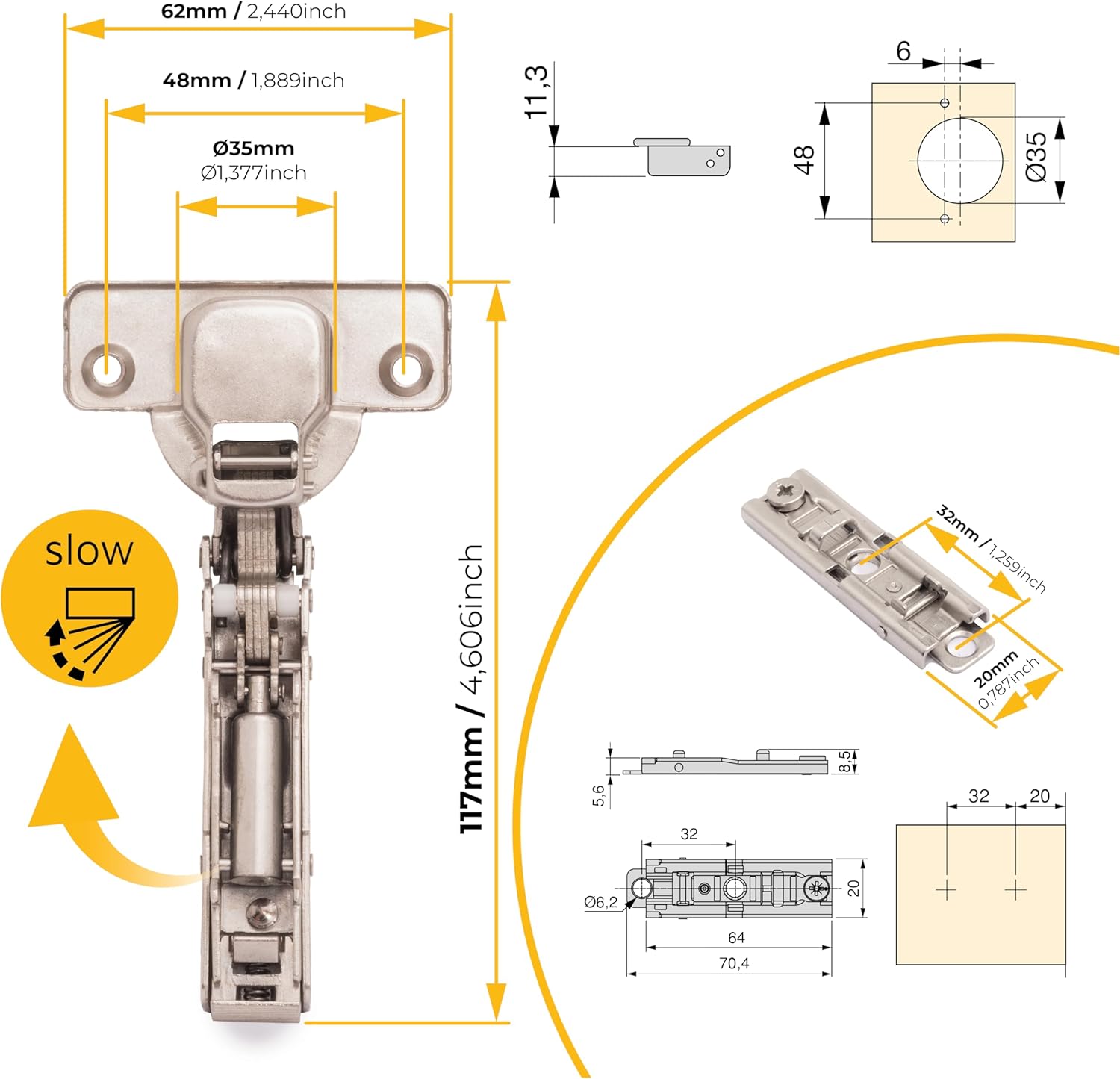

• Concealed hinge with a diameter of 35 mm, 105º opening and drilling range of the concealed hinge D = 3 ~ 7 mm. Door thickness of 14 to 24 mm. Can be adjusted three-dimensionally and depth adjustment via eccentric screw. pring for both closing and opening and it has a cushioning piston for soft closing of the door.
• Screw-on supplement for height 1. Door height adjustment with eccentric ±1.5 mm. Thanks to its technical design, the plate is concealed under the hinge arm when installed with the hinge.

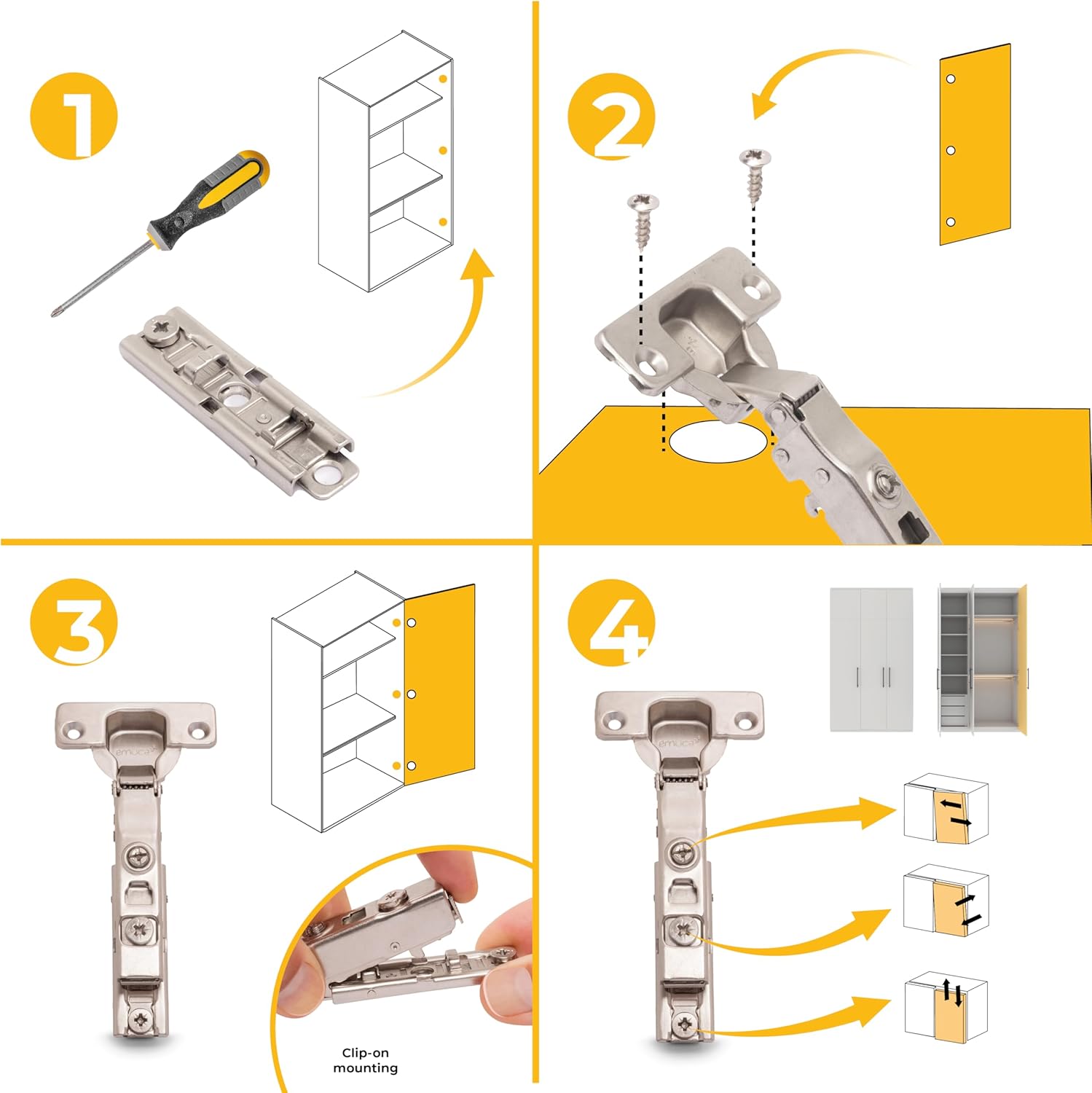

• Automatic system for clip assembly of the hinge to the plate. It is recommended to use the screws provided for installation.
• Made from steel with a nickel finish.
