ESP32-P4-WIFI6 7inch Touch LCD Display Development Board Based on ESP32-P4 and ESP32-C6, 7inch 5-Point Touch IPS Screen 1024×600 Pixel, with MIPI-CSI/DSI, USB 2.0 OTG HS, Dual Microphones, etc.

Introduction ESP32-P4-WIFI6-Touch-LCD-7B is a high-performance development board based on ESP32-P4 chip, with integrated RISC-V 32-bit dual-core and single-core processors. Equipped with 7inch 1024 × 600 touch display, features rich human-machine interfaces including MIPI-CSI (with integrated Image Signal Processor), it also supports USB OTG 2.0 HS for high-speed communication. Features High-performance MCU with RISC-V 32-bit dual-core and single-core processors 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP Static RAM, 8 KB TCM 32MB PSRAM in the chip's package, with onboard 32MB Nor Flash Equipped with 7inch IPS touch screen, 160° wide viewing angle, capacitive 5-point touch, 1024 × 600 resolution, 16.7M color, 350cd/m² brightness Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG HS, SDIO 3.0 TF card slot, dual microphones (supports echo cancellation), speaker header and RTC battery holder, etc. Adapting 2*12 GPIO header with 17 x remaining programmable GPIOs Onboard RS485, CAN, I2C, and UART headers for easy communication with industrial equipments Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation Package Content ESP32-P4-WIFI6-Touch-LCD-7B x1 USB Type-A dual-plug cable x1 USB Type-A to Type-C cable ~1m x1 Speaker x1 SH1.0 4PIN cable ~150mm x1 PH2.0 12PIN cable ~200mm x2 PH2.0 4PIN cable ~200mm x4 Note: Online Dev Resources and Tutorials to help you easily get started. Please feel free to contact us with any questions.

• ESP32-P4-WIFI6-Touch-LCD-7B development board based on ESP32-P4 and ESP32-C6, high-performance MCU with RISC-V 32-bit dual-core and single-core processors, supports 2.4GHz Wi-Fi 6 and Bluetooth 5 / BLE 5, supports AI speech interaction
• ESP32-P4-WIFI6 7inch touch LCD dev board, equipped with 7inch touch display 1024 × 600 resolution 16.7M Color, features rich human-machine interfaces including MIPI-CSI, MIPI-DSI, USB 2.0 OTG HS, SDIO 3.0 TF card slot, dual microphones, speaker header, etc.
• 32MB PSRAM in the chip's package, with onboard 32MB Nor Flash. 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP Static RAM, 8 KB TCM
• Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder

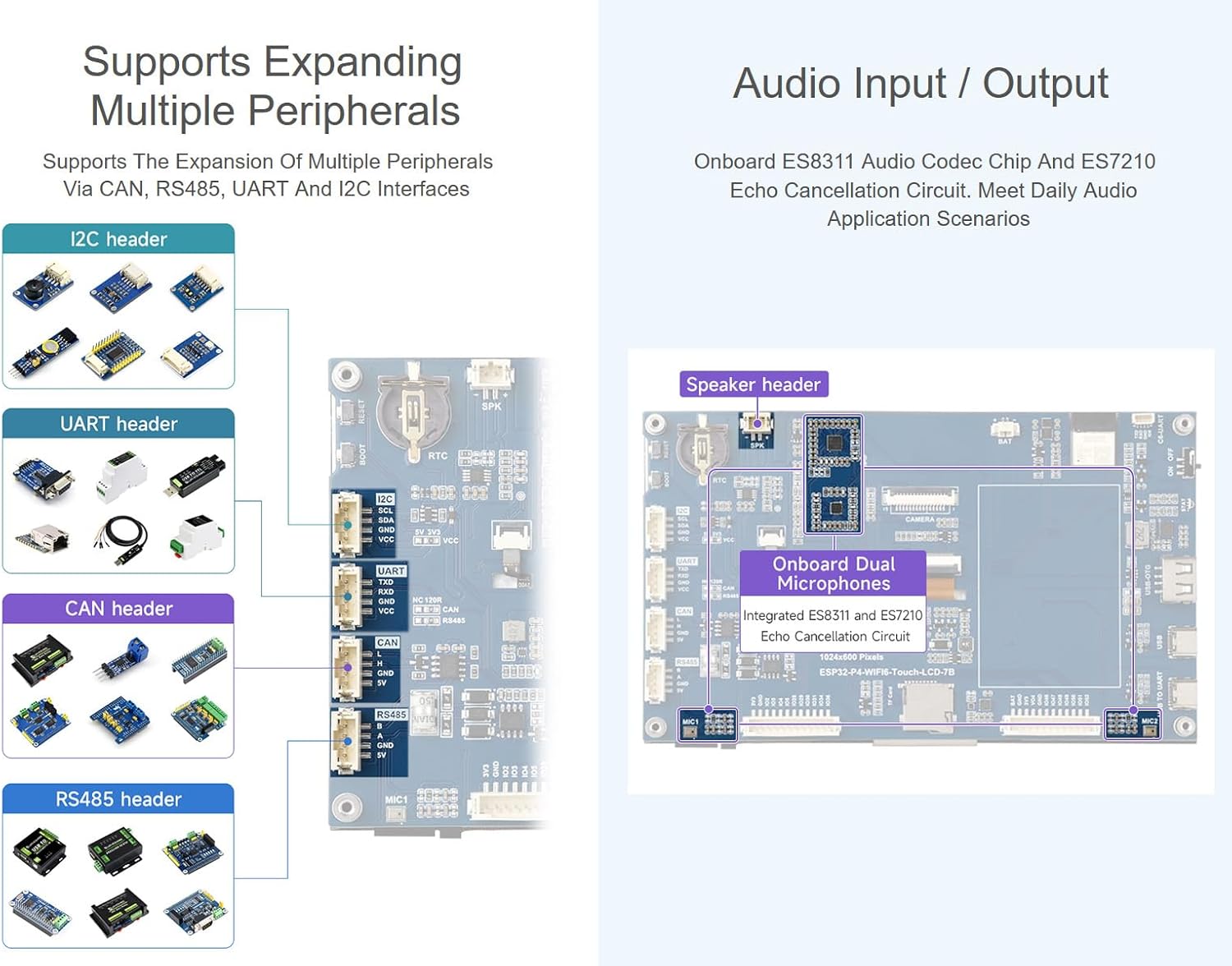

• Onboard RS485, CAN, I2C, and UART headers for easy communication with industrial equipments. Adapting 2*12 GPIO header with 17 x remaining programmable GPIOs
