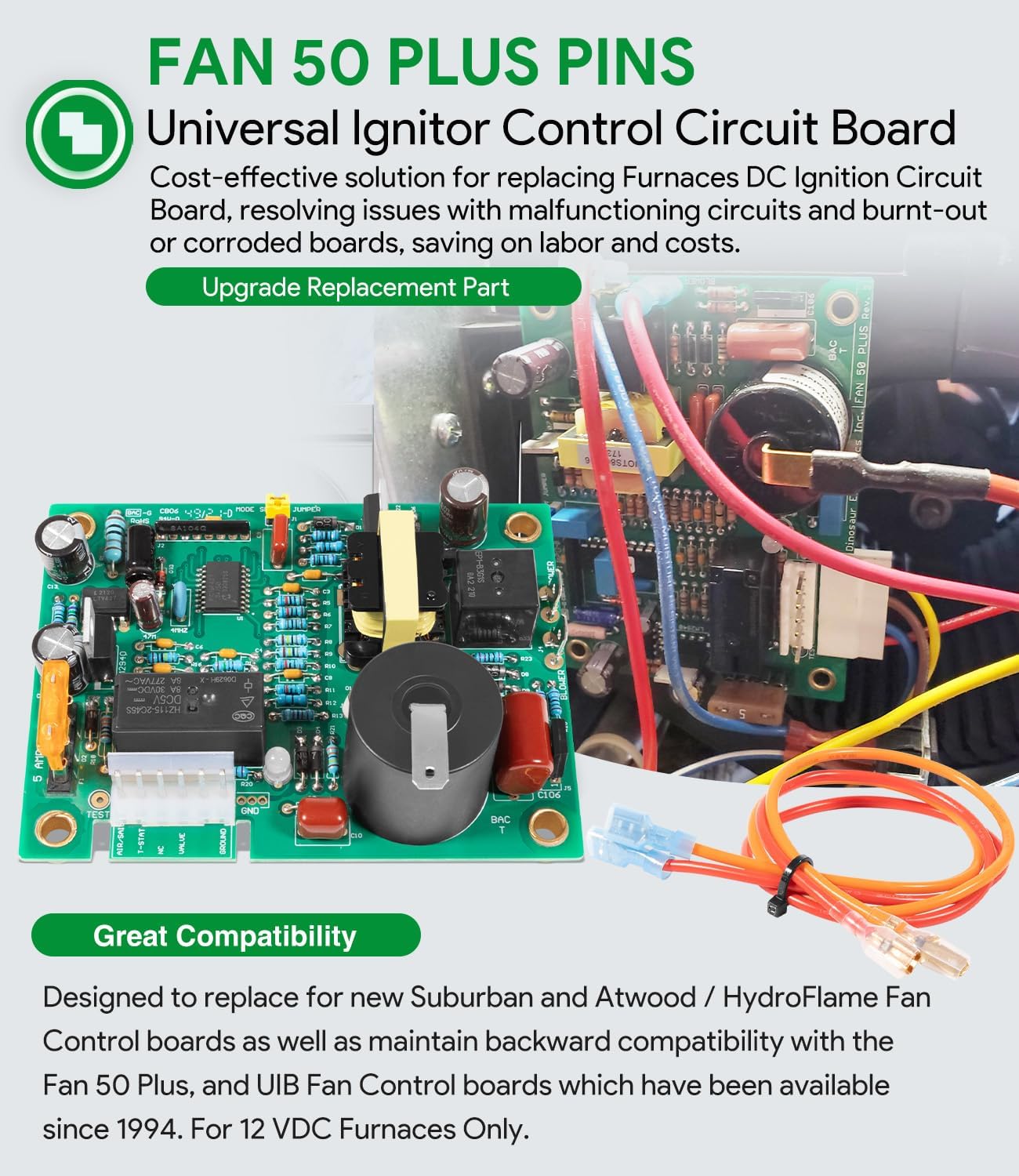

FAN 50 PLUS PINS 12V DC Universal Ignitor Control Circuit Board with Fan Control for Suburban and Atwood/HydroFlame, FAN50PLUS

FAN 50 PLUS PINS 12V DC Universal Ignitor Control Circuit Board with Fan Control for Suburban and Atwood / HydroFlame, FAN50PLUS. Compatible with and not limited the following model. For Atwood Hydro Flame Furnaces: 7912-II, 7916-II, 7920-II, 8012-II, FA 79D, HF 80D, DC82 25-32, DC82 35-41, FA 76D, FA 78 25-32, FA 72D, 8500-IV Series, 8500-III Series, 85-II Series, 85-I Series, 8900-I DC Series, 8900-II DC Series, 8900-III DC Series, AFSD12, AFSD16, AFSD20, AFMD20, AFMD25, AFMD30, AFMD35, DFMD20111, DFMD25111, DFMD30111, DFMD35111 DFSD12111, DFSD16111 and DFSD20111. SF-30F furnace.

• 【Great Compatibility】 FAN 50 Plus Pins is designed to replace for new Suburban and Atwood / HydroFlame Fan Control boards as well as maintain backward compatibility with the Fan 50 Plus, and UIB Fan Control boards which have been available since 1994. For 12 VDC Furnaces Only.
• 【Replacement Part Number】Replacement for Atwood and Suburban Control Boards: 232613, 232614, 31501 Kit with 33488, 33488 (included in 31501 Kit)& a 6 pin header connector, 33550L, 36716, 37875, 520741, 520814, 520871, 520820 Kit with 232613, 521099, AP4896608. Replace for UIB L POST, UIB L, UIB S, UIB 24VAC, UIB S; 05-299000-153, 05-299004-153, 05-309014-153, 10-12-15-7-7-E002, 10-12-2-12-12-E310, 10DM-12-1-12-12-E3002, 10N-12-1-5.5-5.5-E222.
• 【Compatible Furnaces】Suitable for and not limited to the following Hydro Flame Furnaces: 7912-II, 7916-II, 7920-II, 8012-II, FA 79D, HF 80D, DC82 25-32, DC82 35-41, FA 76D, FA 78 25-32, FA 72D, 8500-IV Series, 8500-III Series, 85-II Series, 85-I Series, 8900-I DC Series, 8900-II DC Series, 8900-III DC Series, AFSD12, AFSD16, AFMD20, AFSD20, AFMD25, AFMD30, AFMD35, DFMD30111, DFMD20111, DFMD25111, DFMD35111 DFSD12111, DFSD16111 and DFSD20111.
• 【Compatible Furnaces】Compatible with selected Suburban Furnaces, such as: SF20/25/30/35/42, SF20F/25F/30F/35F/42F use 520832 wire kit, NT24/30/34SP, NT40 use 520839 wire kit, NT12/16/20S, NT12/16/20SE use 520840 wire kit, DD17DSI with date comes below 9124 use 520612, DD17DSI with date comes above 9124 use 520741. SW4D, SW6D, SW6DE, SW6DEL, SW6DEM, SW6DM, SW10D, SW10DE, SW10DEL, SW10DEM, SW10DM, SW12D, SW12DE, SW12DEL, SW16DEM, SW16DEL, SW16DEM and other vehicles.
• 【Control Board Upgrade】 FAN50PLUS board can be used to upgrade older furnaces to add the Fan Control feature. The has been designed to work with the industry standard 6-pin “edge connector” or the newer 6-pin “header” style connector to address changes in the industry while maintaining backwards compatibility.
• 【Poweful Functions】Fan Control Ignitor Board is designed to shut the fan motor off if the board fails to sense a flame after the third ignition try. Thus, battery drain is reduced and the needless blowing of cold air is eliminated. The FAN 50 Plus Pins , after shutting the fan motor off, will wait for 1 hour and repeat the whole sequence again before permanent shut down.
• 【Special Features】Comes with a “removable” MODE SELECT jumper on the board and a separate set of red and orange wires to convert “older furnaces”, giving them fan control features. Please note: The “fan control feature” must be used.
• 【Safe Work & Easy Installation】 Constructed of premium-grade PCB material. Electronic waterproof coating has corrosion resistance and waterproof properties. Transparent and colorless molecular waterproof film chain allows water droplets to adhere normally, Protecting the components. High Temperature Resistance, Corrosion and cold ResistanceExcellent moisture resistance for stable performance and reliable durability. No wiring kit is necessary. Work well with the original wiring as with the updated wiring. User manual included.
• 【100% Satisfaction Guarantee】 Your satisfaction is our priority. We strive to give our customers excellent service. All Sixcow products support 30-Day money-back guarantee, 12-Month warranty for quality-related issues. Simply return it for your warranty.
