FASTTOBUY Digital Readout 3 Axis DRO + 3pc Linear Scale Glass Sensor 5um Linear Encoder Kit (Customized Size),

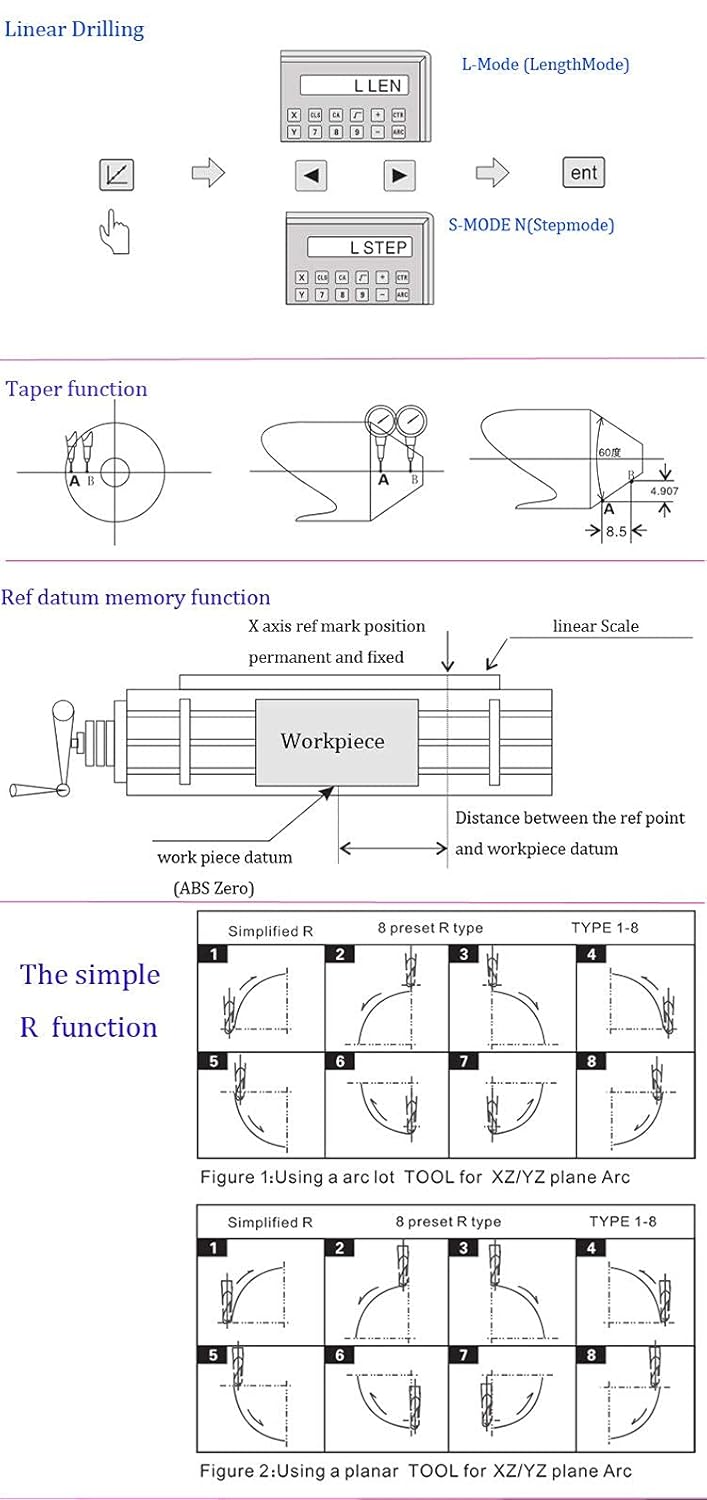

FASTTOBUY 3 Axis DRO Digital Readout uses a glass precision metrology grating as the measurement reference, characterized with high scanning frequency, quick graphic machining and low measuring error. Suitable for lathe, grinding machine, milling machine, boring machine and EMD. ●Shipping list● 1 PC 3 Axis digital readout display 3 PCS Linear Scale 1PC Instruction Manual (English) Accessories:scale cover, L connecting bracket, scale cover, screw bag and so on. ●Specifications of digital readout● Digital Readout Displayer: 2 Axis Distance of Travel(L0): 50~1500mm (please choose the correct linear scale) Resolution: 5um Supply Voltage range: AC 80V~260V; 50~60Hz Power consumption:15VA Operating temperature: 0~45 degree centigrade Storage temperature: -30~70 degree centigrade Relative humidity:Less than 90% Readout allowable input signa:TTL square wave Allowable input signal frequency: Less than 5M Hz Max resolution of digital display length: 5um Min resolution of digital display angle:0.0001/pulse Linear Scale:DB9(RS232) ●Basic Function● 8 bit LED High-definition nixie tube mm/inch mode ABS/INC coordinate conversion zero clearing, reset liner error compensation center of 1/2, R arc function(RAC) vibration filtering, digital filtering sleep mode, divide circle evenly (PCD) 200 sets sub datum function drilling of oblique line taper measurement ●Special Functions Linear drilling PCD function Chambering Tool conpensation Machining of oblique plane Calculator

• ✔【Customized Size】Customizable Travel Length, Note: The Total Length =Travel Length+140mm.
• ✔【Note】After purchasing, please provide the range you need and the size of the machine (range, total length) so that we can provide an accurate range size.
• ✔【IDEAL PROFESSIONAL CHOICE】This is a complete kit. Just need to hook the readout system to your machine.It includes one 3 Axis Digital Readout, two scales, protective covers, brackets, etc, an english manual and all the accessories for installation.

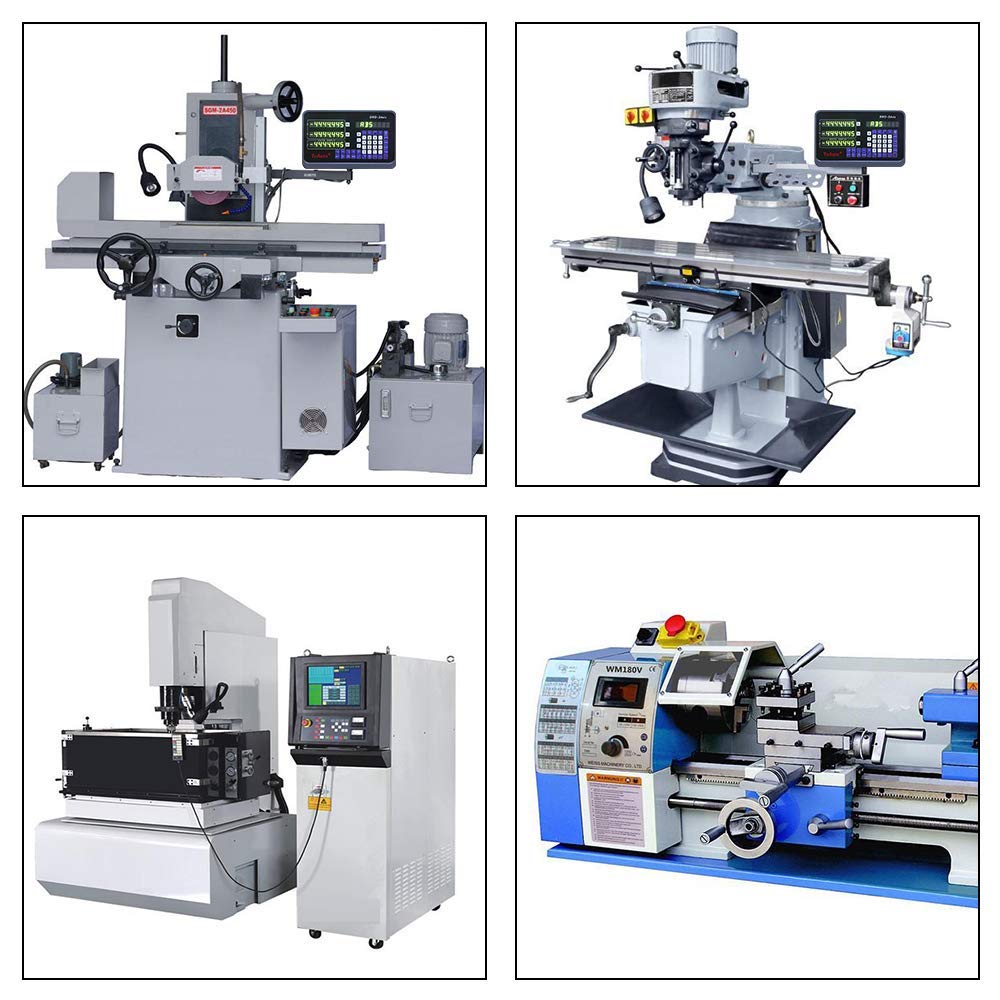

• ✔【WIDE APPLICATION】Applicable for milling machine, drilling machine, grinding machine, lathes, profile projector, video measuring machine, position monitoring, coordinate measurement, X-Y-Z working table monitor, mechanical control as well as other area of linear scale and rotary encoder.
• Please notice: We only provide scale travel length at 50mm multiples, 50mm, 100mm... 1000mm for example. You will receive 2 separate packages due to the different dimensions of scales and display if you only receive one of them, the other one is maybe on the way to you. Please just wait for a while.
