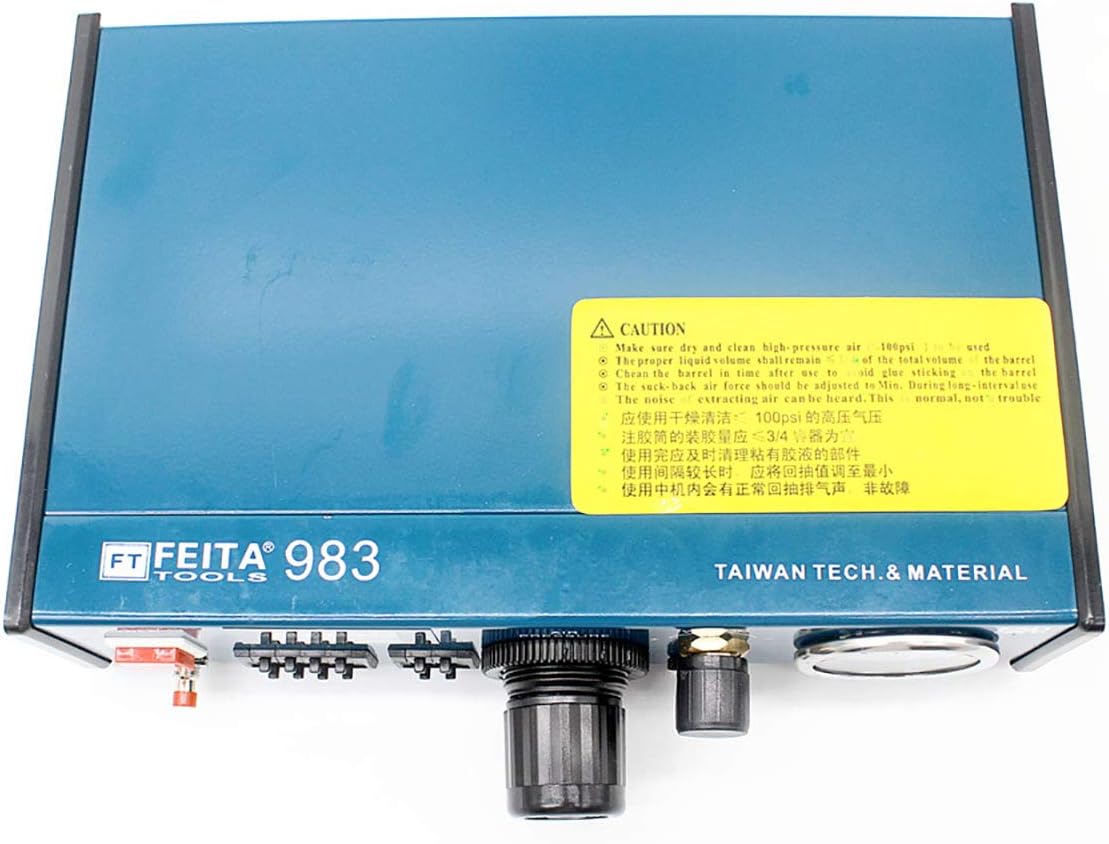

FEITA 983 Auto Digital Display Glue Dispenser AC 110v Automatic Solder Paste Liquid Adhesive Controller Dropper Machine

Feature:Foot pedal controlled.Free to set 16 kinds of ways. Suck-back feature ensure no dripping.Specification:Dispensing type: Free to set 16 kinds of ways, with dispensing time displayManual timing dispensing: Can dispensing coating, lineation continuouslyDispensing time interval: 0.1-9.9S(automatic timing function)Automatic Timing dispensing: 00.01S-99.99SMinium dispensing: 0.0001 mlInput air pressure: 10-100pSi Output air pressure: 1-80pSiInput voltage: AC 110V 60 HzInternal voltage: 24V DCHow to use:1. Power Switch: putdown light on shows “On”, light off shows “Off”2. Dispensing time display: Display setting time3. Input air pressure pressure governor: First pull out, Reversal is lower pressure,veering is the higher pressure4. Barometer: display range: 0-100pSi5. Vacuum control unit: Reversal is Vacuum pumpback high, veering is the Vacuum pumpback low6. Testing button: During testing, it can replace the foot switch7. Dispensing time dial code button: Display setting time, adopts add andsubtract way 00.01S-99.99S8. time interval setting dial code button: Display setting time, adopts add and subtract way 0.1S-9.9S9. Dispensing output interface: Connect to dispensing needle cylinder.10. Air pressure input interface: Connect to clean high pressure source11. Dispensing way: 16 kinds of free way12. The foot controller interface: Connect to foot switch13. Power input socket14. Fuse holderPackage Included: 1 x Solder Paste Liquid Controller Dropper1 x Dispenser Stand1 x Hand Switch1 x Foot Switch1 x Power Cable1 x Air Tube to Barrel3 x 30cc Liquid Barrels1 x Air Tube to Air Supply1 x Steel & Plastic Tip Needles Set

• Feita 983 glue dispenser machine using 0.18CV constant flow solenoid control valve,with indicator switch,adjustable air suction device up to 15 inches / mercury (Hg). Service life could be more than 12 years.
• Precise control of dispensing drops and dispensing cycle;Two Controlling Modes: manual mode & semi-automatic mode. Materials could be dispensed continuously until operator release the foot pedal when it is in the manual mode.
• The humanized function, simpler operation, easier coating, lineation and drop, highlight high-quality products,improve production efficiency.
• The professional precise glue dispenser be used the latest digital control system,digital display, assure timing output consistently.It need to be connected to air compressor (1.5HP or above)
• Feita automatic glue dispenser widely used on electronics, aviation, optics, chemistry, automobile, medical treatment, petroleum, packaging, jewelry and machinery industry.
