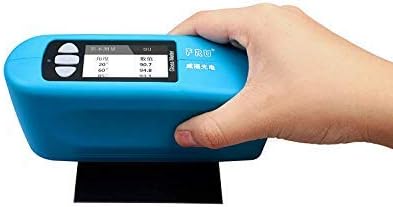

Gloss Meter FRU WG68 Portable Multi-Angle Precision Glossmeter 20° 60° 85° 0-2000Gu

Specification: Measuring Angle Degree 20° 60° 85° Measuring Range GU 20°:0-2000 60°:0-1000 85°:0-160 Measuring Spot mm 20°: 10x10 60°:9x15 85°:5x18 Measuring Spot GU 0-1000:0.1 1000-2000:1 Repeatability GU 0-100:0.2 >100:0.2% Indication Error GU ±1.5 Zero Error GU 0.2 Working Temperature Range ℃ 10℃ - 40℃ Storage Temperature Range ℃ -10℃ - 70℃ Humidity Range Relative humidity less than 85%,without condensation Power Adapter Section 2 5 alkaline batteries/power adapter Volume mm 159x49x72 Weight g 500 (1) ISO2813, ISO7668 (2) ASTM D523, ASTM D2457 (3) GB/T 9754, GB/T 13891, GB/T 7706, GB/T 8807 Warranty: 1 year Attachment Description (1) Power adapter: standard + 5V, 2A external power supply; (2) Standard board: provide calibration criterion. (3) USB cable: connect instrument to PC.

• WG68 gloss meter is produced according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability.
• The machine has automatic shutdown function, low power warning functions, full data storage hint functions. USB communication interface to communicate with PC. Manually entering standard gloss data.
• Storage capacity can be up to 50000 testing records, storage structure is: 100 prototypes, each prototype with 500 testing data.
• Optional angle (20° 60° 85°) mode: choose measuring angle or angle combination according to user needs.
• Mainly used coatings, printing ink, paint, paint, wood, marble, granite, polishing brick, brick of pottery and porcelain, plastic, paper, metal and non-metallic materials to the surface of the mirror gloss measurement, more stable performance, more durable, more comfortable.
