GOWE DIY CNC Router machine Frame for CNC Engraving Drilling and Milling Machine

Technical Parameters; (2 in 1)--- USB and Parallel port:Spindle motor: 300W; ER11: 3.175mm; Stepper motor: NEMA17 Stepper motor; Current of Driver: 1.68A; Lead screw: M8 threaded stainless steel Lead screw triangle; Spindle, 300W high-speed (10,000 rpm); MAX. X axis travel: 200mm; MAX. Y axis travel: 200mm; MAX. Z axis travel: 70mm; Working area:200*200*70mm; Size: 600*700*500 mm; Resolution ratio: 0.0125 mm; Table structure: 10mm PCB; MAX. moving speed: 4000 mm/min;

• Technical Parameters; (2 in 1)--- USB and Parallel port:Spindle motor: 300W; ER11: 3.175mm; Stepper motor: NEMA17 Stepper motor; Current of Driver: 1.68A; Lead screw: M8 threaded stainless steel Lead screw triangle; Spindle, 300W high-speed (10,000 rpm); MAX. X axis travel: 200mm; MAX. Y axis travel: 200mm; MAX. Z axis travel: 70mm; Working area:200*200*70mm; Size: 600*700*500 mm; Resolution ratio: 0.0125 mm; Table structure: 10mm PCB; MAX. moving speed: 4000 mm/min;
• Control: 3000 mm/min; Main shaft power: 300w; Main shaft speed: 6000-12000 rpm/min; Tool DIA. range: ¦µ0.3-3.175 mm,4mm,6mm; Voltage: AC 110V/220V (BOTH OK ); Drive model: Stepper; Instruction: G-code; System: Window 2000/XP; Feature; 1. Support MACH3 System.2. Suitable for engraving PVC PCB wood materials.3.USB interface, support for both desktop and notebook computers; 4. Working table size 200 * 200 * 70mm; 5. Equipped with a 300W high-speed spindle;

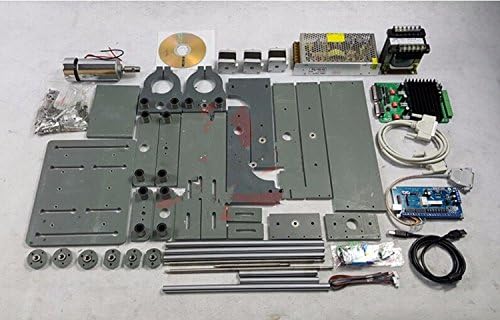

• 6. With English installation manual, simply operation; Packing list:1pcs engraving machine; All parts of the mechanical parts, including :1pcs Spindle motor; 3pcs Stepper motor; 2pcs press plate; 1pcs Information CD; 1pcs driver board; 1pcs Parallel port lines; 1pcs Switching Power Supply; 1pcs Transformer and rectifier bridge; 2pcs milling cutter; 1pcs USB interface board; 1pcs Data line
