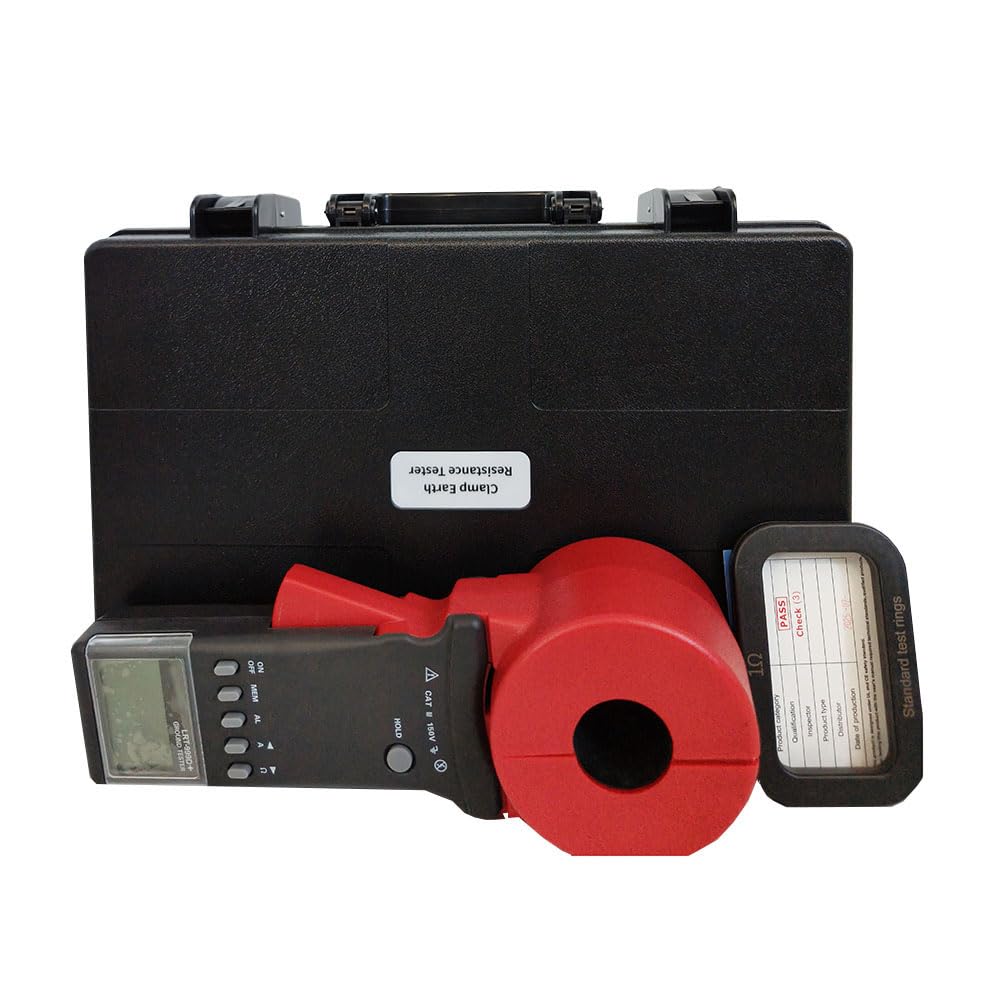

Ground Resistance Tester Meter Earth Resistance Tester Grounding Resistance Measurement Instrument with Resistance Range 0.010Ω-1200Ω Current Range 0.00mA-20.0A 4 Digits LCD Display

YFYIQI Ground Resistance Tester Meter Earth Resistance Tester Grounding Resistance Measurement Instrument with Resistance Range 0.010Ω-1200Ω Current Range 0.00mA-20.0A 4 Digits LCD Display Technical Specifications ❤Measurement of earth resistance,loop resistance ❤Clamp Size:Φ32mm ❤LCD Size:4 Digits LCD display, Screen: 47mm×28.5mm ❤Range: Resistance: Resistance: 0.010Ω~1200Ω Current:Current: 0.00mA~20.0A ❤Resolution:Resistance: 0.001Ω; Current: 0.05mA ❤Accuracy:Resistance: ±1%±0.01Ω; Current:±2.5%±1mA ❤Data Storage: 99 sets ❤Auto Power-off:Automatically power off after 5 minutes without any operate ❤Power Consumption:≤50mA， continuously working for 30 hours ❤Alarm Threshold Setting Range:Resistance：1~199Ω ❤Audible and VisibleAlarm: “Beep-beep-beep” alarm sound, alarm symbol flashing, pressALkey to turn on/off and setting ❤Protection Level: Double insulation ❤Structural Feature:Clamp CT ❤Shift:Automatic shift ❤External Magnetic Field:＜40A/m ❤External Electrical Field:＜1V/m ❤Single Measurement Time: 0.5 second ❤Resistance Measurement Frequency: ＞1KHz ❤Measured Current Frequency:50/60Hz Automatic ❤Low Battery Voltage Indication:When the battery voltage is lower than 5.3V, the low battery voltage symbol is displayed ❤Storage Full Indication:Storage data full of 99 sets,flashed display "MEM" symbol ❤Tester Weight:1160g ❤Tester Dimension:285mm×85mm×56mm

• Breakthrough in self-test the boot a long time to waiting, start immediately into the test.Breakthrough relay self-test mode, using the most advanced processing algorithms and digital integration technology.
• Breakthrough the old product to heavy issues, more in line with characteristics of hand-held devices.New design, panel operation with 6 buttons, better performance.
• Increase sound and light alarm function, with "beep-beep-beep” alarm sound.Increase the interference signal recognition indicator function, with "beep-beep-beep” indicator.
• Measurement range: 0.01Ω-1200Ω.Stored data 99 Units. Lower power consumption, Maximum operating current less than 50mA.
• The Clamp Earth Resistance Tester is widely used in the grounding resistance measurement of the power, telecommunications, meteorology, oilfield, construction and the industrial and electrical equipment.
