Gustard Audalytic DR70 R2R Network Streaming Desktop DAC with Remote Control (Silver)

Digital Input: COAX/OPT Input Support: PCM 16-24bit/44.1-192kHz; DSD DoP64 USB/Streamer Input Support: PCM 16-32bit/44.1-768kHz; DSD DoP64-DoP256: Native DSD: DSD64-DSD512 Bluetooth 5.0 Support: LDAC,AAC, SBC, aptX, LDAC enables 24-bit/96kHz high-resolution transmission USB Host Compatibility: Windows 7/8/10/11(32/64-bit); macOS; Linux Analog Output: Frequency Response: 20Hz-20kHz(±0.2dB, OS Mode) Dynamic Range: >111dB Signal-to-Noise Ratio: >113dB Channel Crosstalk: -125dB @ 1kHz THD+N: ≤0.004% @ 1kHz IMD: ≈0.009% @ -2dBFS RCA Output Level: 2Vrms (Fixed) RCA Output Impedance: 100Ω XLR Output Level: 4Vrms (Fixed) XLR Output lmpedance: 100Ω Others: Power Supply: AC 115V/230V, 50/60Hz Power Consumption: <10W Dimensions(WxDxH): 220 x170x 50mm(excluding protrusions) Net Weight: 1.5 kg Package Dimensions: 295 x 265 x 85 mm Shipping Weight: 2.0 kg WHAT IN BOX? DR70 * 1, Remote control * 1, User manual * 1

• 【Proprietary Discrete R-2R Module】 R-2R ladder network DAC utilizes resistor-based switching to convert digital signals into analog. Compared to modern delta-sigma DACs, which rely on high-frequency 0/1 switching, the R-2R conversion process is more direct and inherently pure, delivering a more natural sound quality. However, this architecture demands extremely high precision in the resistor network. Achieving superior performance not only involves significant cost but also requires a high level of technical expertise.
• 【FPGA】 Employing a field-programmable gate array (FPGA), this custom-configured digital integrated circuit allows flexible implementation of logic functions, including clock management and digital shaping. Integrated with exclusive technologies such as DoP demodulation and PCM/DSD depop switching, the FPGA lavs a solid foundation for exceptional sound quality.
• 【1-Bit DSD】 True 1-Bit DSD D/A Converter with native DSD512 support. This is equivalent to 8x oversampling of SACD-standard DSD64 and 512x the data density of CD format. In DIRECT DSD mode, the DSD signal is routed directly to the 1-bit switching array DAC circuit, completely bypassing PCM conversion. Using pure hardware processing, the system directly translates the DSD bitstream into analog, preserving the full dynamic range and detail of the original pulse modulation.

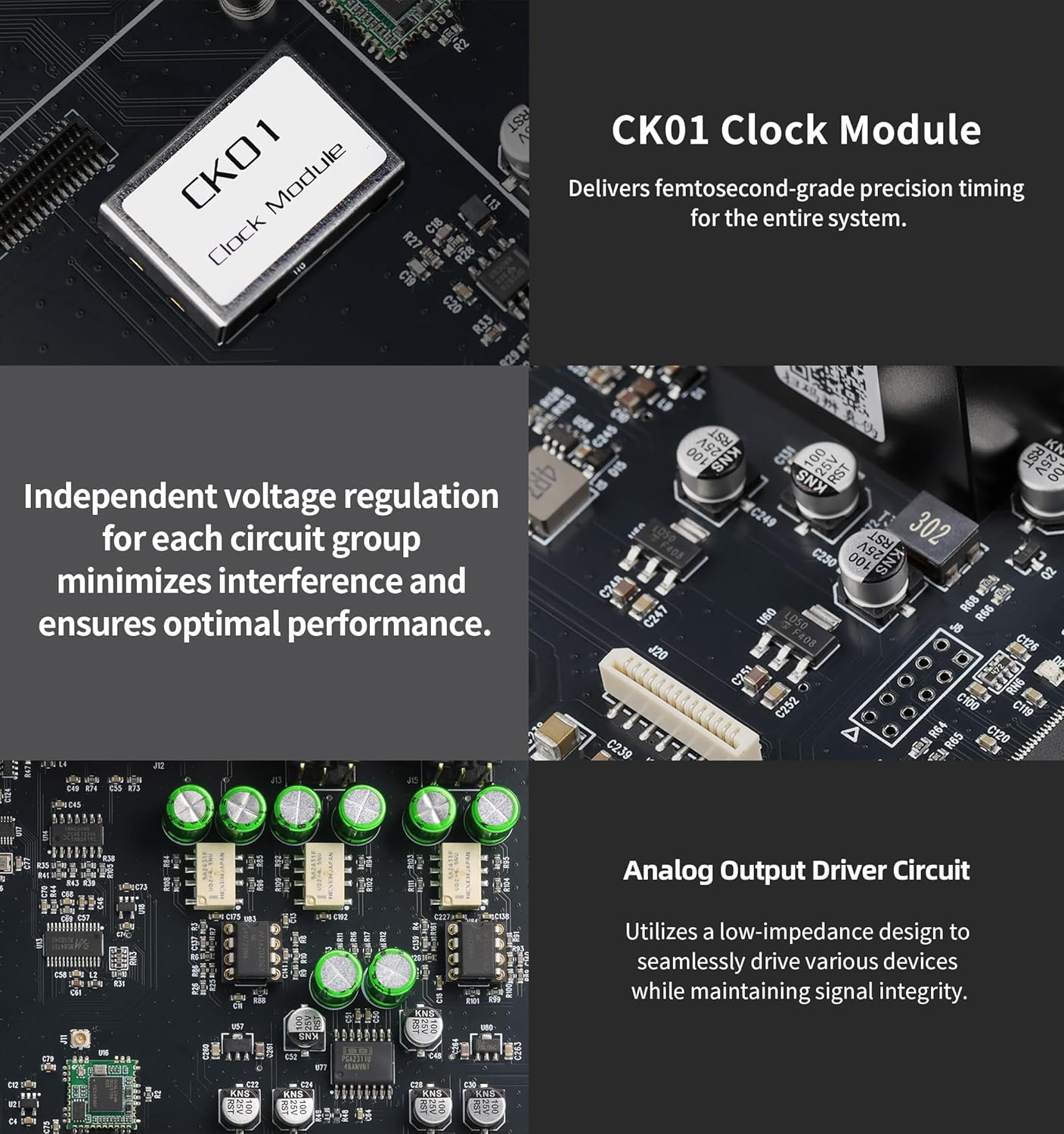

• 【CK01 Clock Module】 Delivers femtosecond-grade precision timing for the entire system.
• 【Analog Output Driver Circuit】 Utilizes a low-impedance design to seamlessly drive various devices while maintaining signal integrity.
