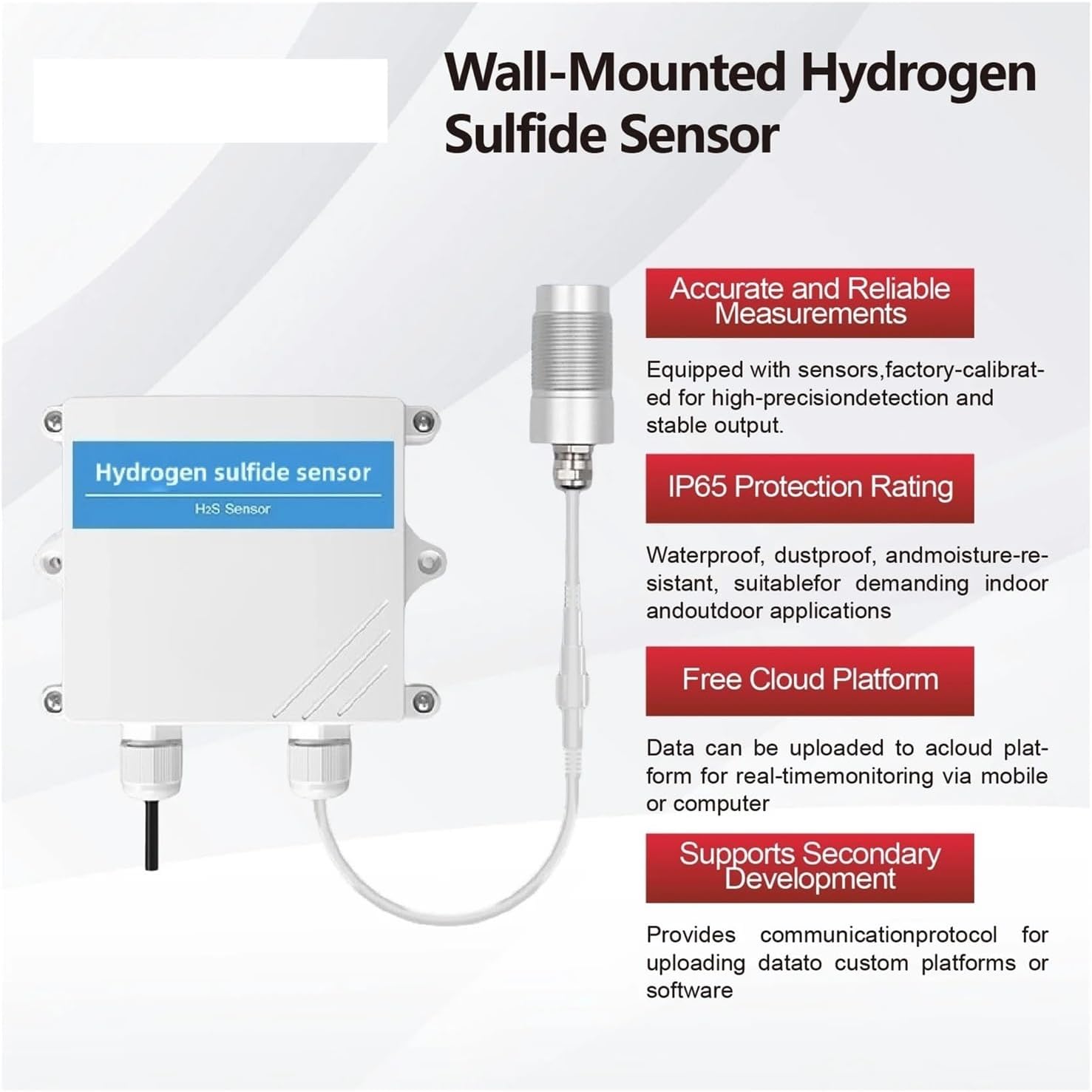

H2S Sensor Hydrogen Sulfide Gas Detector RS485 Analog Transmitter Odor Concentration Monitor

1. NOTEDefault Configuration:.Style: Wall-mounted, non-display type, built-in probe.Measurement Range:0-100 ppm.Output Modes: RS485/4-20mA/0-5V/0-10V.Power Supply: 10~30V DC.Housing: IP65waterproof, dustproof, and anti-corrosionDue to page limitations, some specifications may not be listed. Please contact us for specific customization needs.Customizable Options:.Measurement Range: 0-100 ppm.Style: Wall-mounted (display type), H2Stemperature and humidity 3-in-1 type,explosion-proof type.Probe Type: External (customizable).External probe length:80cm def (Maximum customizable length: 10M).Exterior Design: Portable, ceiling-mounted, pipeline-mounted, or louvered enclosure.Output Modes: RS485/4-20mA/0-5V/0-10V.Adjustable Parameters: Address (1-255), Baud Rate (1200-115200)2. PARAMETERSParameter485 Model4-20mA ModelPower Supply10~30VDC10~30VDCOutput Signal4854-20mA, 0-5V, 0-10VPower Consumption0.12W0.25WTemperature Range-40~+80Humidity Range0-100%RHTemperature Accuracy±0.5 (at 25)Humidity Accuracy±3%RH (60%, 25)Operating Temperature-20~50-20~50Operating Humidity15-90%RH (non-condensing)15-90%RH (non-condensing)Pressure Range90-110Kpa90-110KpaStability2% signal value/month2% signal value/monthPreheating Time5 minutes5 minutesHS Zero Drift±5ppm±5ppmMeasuring Range0~100ppm0~100ppmResponse Time35s35sRepeatability2%2%Service Life24 months24 monthsAccuracy±2ppm or ±10%±2ppm or ±10%Resolution1ppm1ppmDimensions110*85*44mm110*85*44mmFEATURESHigh Accuracy and Stability: Six-point calibration ensures consistent, reliable measurements.Durable Design: High-density waterproof housing with anti-aging, anti-oil, and interference-resistant cables.Flexible Communication: Standard ModBus-RTU protocol with adjustable communication address and baud rate, maximum range up to 2000 meters.Customizable Options: Various probe types and external display features available to meet diverse application needs.FAQQ: Can the sensor be used outdoors?A: Yes, the sensor's waterproof design and durable materials make it suitable for harsh outdoor environments.Q: Is customization available?A: Yes, we offer extended cable lengths, external displays, and probe type customization to meet specific requirements.Q: How to set up communication parameters?A: Communication address and baud rate can be configured via standard ModBus-RTU commands.Model Number : QT-10HSDIY Supplies : ElectricalPower Supply : 10~30VDCTemperature : -20~+50

• YCCMSM13 H2S Sensor Hydrogen Sulfide Gas Detector RS485 Analog Transmitter Odor Concentration Monitor
