HDMI EDID Manager 4K 60Hz Prophecy Emulator 8 EDID Mode EDID Copier Programmable Gains Equalized 4K@60Hz HDMI 2.0b Signal HDCP 2.2 to 1.4 18Gbps HDR

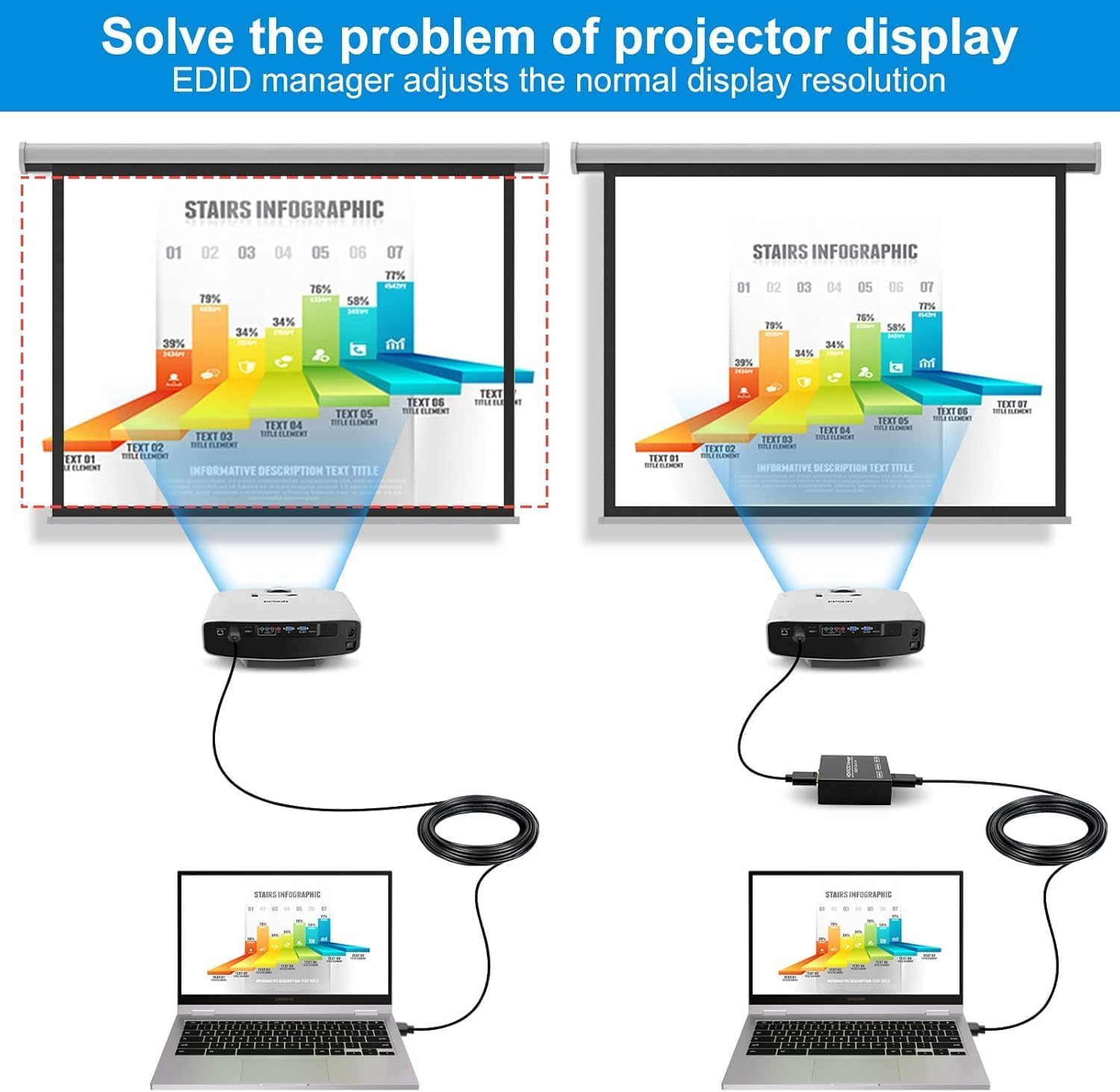

Product Overview: This HDMI EDID Manager/Simulator effortlessly resolves compatibility issues between source devices (such as computers, Blu-ray players, and game consoles) and display devices (such as monitors, TVs, and projectors) through 8 preset EDID modes and EDID cloning functionality. Supporting resolutions up to 4K@60Hz 4:4:4 HDR and HDCP 2.3, it ensures crisp, smooth visuals with stable audio-video synchronization. Ideal for diverse applications including multimedia system integration, conference rooms, home theaters, digital signage displays, and KVM switches. Product Features Supports 8 EDID Modes: Freely switch via DIP switches to adapt to different device requirements. EDID Cloning Function: One-click cloning of display device EDID ensures precise synchronization between source and display. 4K 60Hz HDR High-Quality Output: Supports 4K2K@60Hz (YUV 4:4:4) for exquisite image quality and true-to-life colors. Supports HDCP2.3 / HDMI2.0b / DVI1.0: Compatible with mainstream high-definition video protocols for stable device connections. HDR & CEC Pass-Through Support: Delivers 10-bit HDR high dynamic range display with multi-device control support. Extensive Audio Format Compatibility: Supports Dolby TrueHD, Dolby Atmos, DTS:X, and other high-bitrate audio pass-through. LED Status Indicators: Real-time display of power, signal, and mirroring status for clear operation. Plug-and-Play, Driver-Free: Simple connection, easy installation, and hot-swappable support. Video Performance Specifications Resolution Support: 4K2K@60Hz / 3D / 1080P / 1080i / 720P / 576P / 480P Color Format: RGB / YCbCr 4:4:4 / 4:2:2 / 4:2:0 Color Depth Support: 10-bit / 12-bit Maximum Bandwidth: 18Gbps (600MHz) HDR Support: HDR10 / HLG / 10-bit HDR Audio Performance Specifications Supported Audio Formats: LPCM 2.0 / 5.1 / 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD, Dolby Atmos, DTS:X Supports High Bitrate Audio (HBR) Pass-Through Signal Transmission Distance Input Distance: 10 meters (1080P HDMI Standard Cable) / 5 meters (4K60Hz High-Speed Cable) Output Distance: 10 meters (1080P HDMI Standard Cable) / 5 meters (4K60Hz High-Speed Cable) We recommend using high-quality high-speed HDMI cables to ensure signal stability. Panel Description Front Panel: Copy Button: Press to start reading/storing EDID; press and hold for 3 seconds to restore default mode HDMI IN: Signal source input port DC 5V: Power input port Rear Panel: PW Power Indicator: Lights up when powered on SIG Signal Indicator: Lights up when HDMI signal is detected HDMI OUT: Output port for connecting display devices DIP Switch: Selects from 8 EDID modes Important Notes 1. Connect devices with power disconnected to prevent electrostatic damage. 2. If signals are unstable, check HDMI cable quality and length. 3. 4K60Hz resolution requires devices supporting HDMI 2.0b and HDCP 2.3. 4. Press and hold the Copy button for 3 seconds to restore factory default settings. Packing list: HDMI EDID Manager × 1 5V USB Power Cable × 1 User Manual × 1

• Supports 8 EDID Modes: Freely switch via DIP switches to adapt to different device requirements.
• EDID Cloning Function: One-click cloning of display device EDID ensures precise synchronization between source and display.
• 4K 60Hz HDR High-Quality Output: Supports 4K2K@60Hz (YUV 4:4:4) for exquisite image quality and true-to-life colors.
• Supports HDCP2.3 / HDMI2.0b / DVI1.0: Compatible with mainstream high-definition video protocols for stable device connections.
• Extensive Audio Format Compatibility: Supports Dolby TrueHD, Dolby Atmos, DTS:X, and other high-bitrate audio pass-through.
• HDR & CEC Pass-Through Support: Delivers 10-bit HDR high dynamic range display with multi-device control support.
• LED Status Indicators: Real-time display of power, signal, and mirroring status for clear operation.
• Plug-and-Play, Driver-Free: Simple connection, easy installation, and hot-swappable support.
