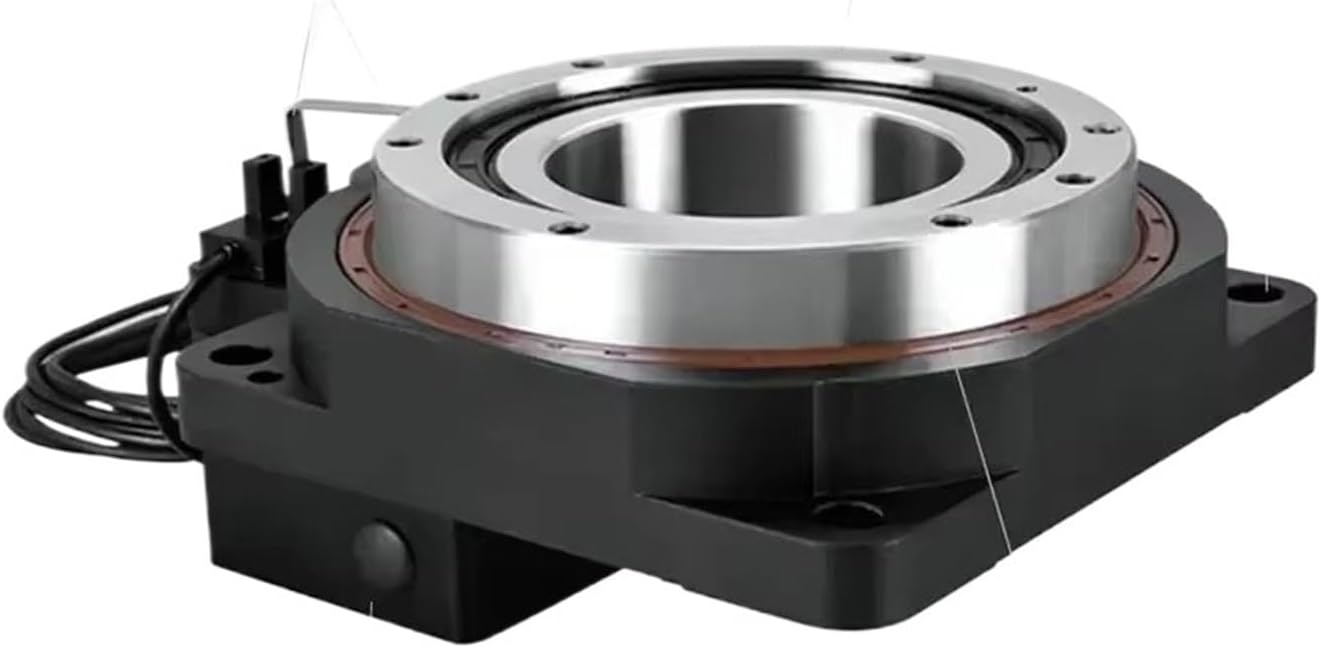

Heavy Duty Hollow Rotary Table 60 280mm360CNC Indexing Platform High 0.01Precision(ZCT60 5mm for Step)

Gear Boxes1* Hollow Rotating Table1* SensorHollow Rotating Table Technical ParametersModelZCT060ZCT085ZCT130ZCT200ZCT280Reduction ratio5:110:15:110:110:118:110:118:110:1Reted output (N.m)5 4 281840287055130Max out (N.m)1512845412084210165390Max axial load230N580N2000N4000N8000NMax moment of inertia5N.m10N.m50N.m100N.m200N.mTorsional rigidity (N.m/arcmin)2.56 193258Parellelism of rorating platform (mm)0.010.010.0130.0130.013Adapt to stepper motor5mm shaft Nema17 stepper motor6.35/8/9.525mm shaft Nema23 stepper motor6.35/8/9.525mm shaft Nema23 stepper; 14mm shaft Nema34 stepper motor12.7/14mm shaft Nema34 stepper motor19mm shaft 3PH Nema42 stepper motorAdapt to servo motor8mm shaft 50W/100W 40mm servo motor11/14mm shaft 200W/400W/ 600W 60mm servo motor11/14mm shaft 200W/400W/600W 60mm servo motor19mm shaft 750W/1KW 80mm servo motor22/24mm shaft 1KW-3KW 130mm servo motorNoise5555556367Weight (kg)0.61.42.68.120Design load (kg)7 5 282845307555130Bearing structureCross roller bearingPositioning accuracy1 arc-minRepeated positioning accuracy15 arc-secAllowable disk speed200rpm (Intermittent operration)Accuracy life30000h ( Intermittent operration)Protection levelIP50Lubrication methodLong-term lubricationInstallation methodArbitraryParallelism ofrotating platform0.01mmConcentricity ofrorating platform0.01mmTransmission efficiency95%Noise55dbProduct Features:1. The rotary table of the hollow rotary platform is of hollow structure, and the motor is connected at the side to facilitate the installation of air pipes and wires in the smelting tool. Like the divider and DD motor, it can directly fix the heavy objects on the platform for transmission.2. Considering the side force and other problems when the product is used, we adopt cross roller bearing, and an anti overturning stable ring is set in the middle. In order to better withstand the lateral force load in use.3. The body is made of aluminum alloy and processed by high-precision CNC to ensure the accuracy of all parts. The gear adopts the carburizing heat treatment and grinding process, which can the gear accuracy of grade 5 after machining, and its surface hardness can 58-62HRC. After the assembly of the product is completed, -- lapping procedures will be carried out to ensure that the parallelism and perpendicularity of the end face are within a trace of runout.4. The accuracy level of some gears of the hollow rotating platform is up to 4, which makes the hollow rotating platform have very small air . We can compensate for the error during assembly by the adjustable gear center distance, and the repeated positioning accuracy can less than 10 arc seconds.5. The worktable and mechanical arm of the device can be directly installed on the turntable of the hollow rotary platform. Compared with the use of mechanism parts such as pulley, it can reduce the working hours and costs of mechanism design, parts deployment, belt state adjustment, etc.6. The demand for high-precision industrial automation equipment, dispensing machines, fourth or fifth axes of machine tools, packaging machines, optoelectronic and visual inspection equipment, indexing boards, printers, sorting machines, robot joints and other fields is rapidly increasing.==========High-concerned chemical : NoneModel Number : ZCTOrigin : Mainland Certification : Speed Ratio : 5:1 / 10:1 / 18:1Positioning accuracy : Less than 1 arc-minRepeated positioning accuracy : Less than 15 arc-secProduct Keyword 1 : Hollow Rotating PlatformProduct Keyword 2 : Electric Turntable DiscProduct Keyword 3 : planetary reducer 23Product Keyword 4 : Dividing headProduct Keyword 5 : Electric stepper servo rotating platformProduct Keyword 6 : motorized TurntableProduct Keyword 7 : Fourth axisProduct Keyword 8 : planetary gearboxProduct Keyword 9 : Replace DD motorProduct Keyword 10 : Replace cam splitterProduct Keyword 11 : rotating platformProduct Keyword 12 : Hollow rotating platform reducerProduct Keyword 13 : Step servo electric indexing turntableProduct Keyword 14 : hollow rotating platform zct62Product Keyword 15 : Cross Roller Bearing Precision reducerProduct Keyword 16 : Circular positioningProduct Keyword 17 : Circular PositionerProduct Keyword 18 : Rotating hollow actuatorProduct Keyword 19 : cnc rotating actuatorProduct Keyword 20 : rotary rotating actuator
