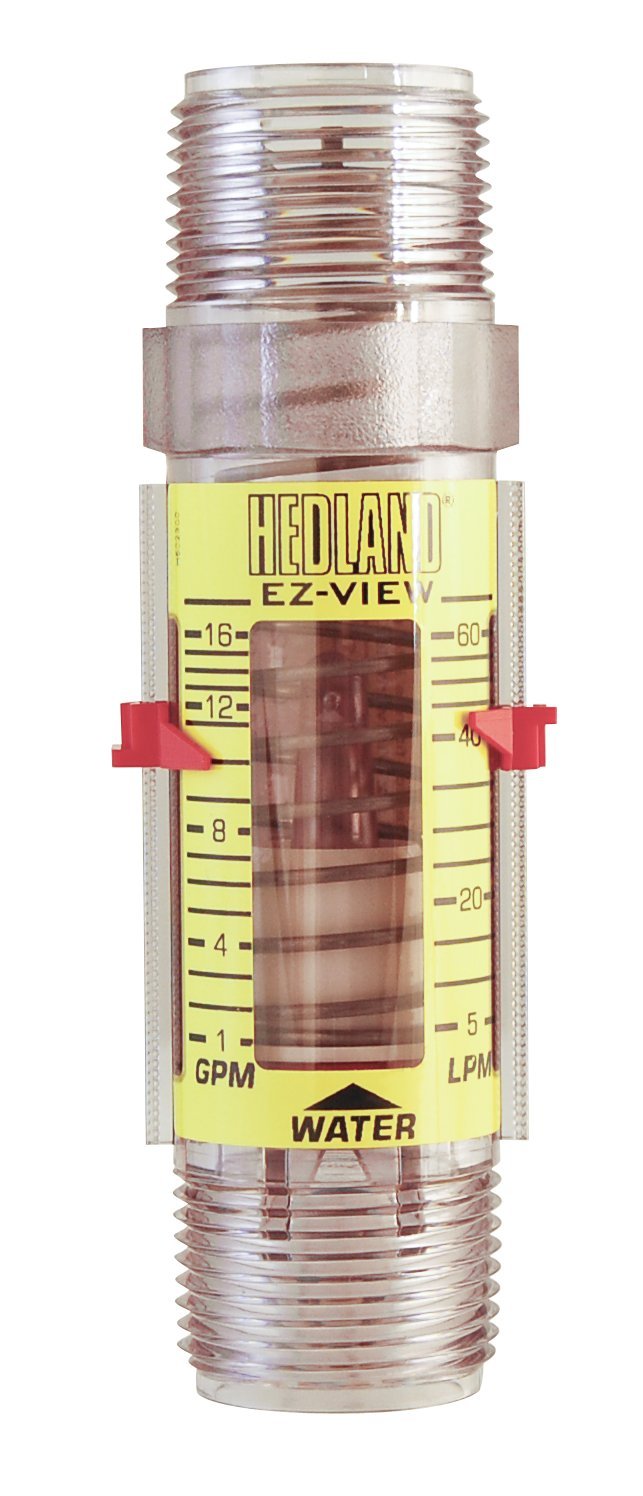

Hedland H625-016 EZ-View Flowmeter, Polysulfone, For Use With Water, 1.0 - 16 gpm Flow Range, 3/4" NPT Male

EZ-View Flow Meters For Water. 3/4 inch ports. EZ to install, in any position. Polysulfone bodies for standard applications. No special piping or flow straighteners needed. No electrical connections. Direct reading indication. Accuracy within 5 percent full scale. Relatively insensitive to shock and vibration. Materials: Polysulfone plastic body, piston and cone. Common parts are Spring: T300-series stainless, Indicator Ring: Buna N, Pressure Seals: Buna N, Fittings: C360 brass, Limit Indicators: Polypropylene, Retaining Ring: PH15 – 7MO stainless.

• Price For: Each GPM Max.: - O-Ring: - Wetted Materials: C360 Brass, Buna-N, Polysulfone, PVC, PH15-7MO Stainless Steel, T300 Stainless Steel, Strontium Master Totalizer: - Pressure Drop - 100% Flow (PSI): - Gauge/Conductor: - Standards: - Max. Reed Switch Current (mA): - Insert: - Max. Viscosity: 500 SSU Center-Center Fitting Size: - Chamber Material: Polysulfone
• Includes: - Max. Voltage: - Manufacturers Warranty Length: - Display: - Shaft Material: - Seal Material: Buna N Thread: - Application: - Cable Length (Ft.): - Pressure Drop - 50% Flow (PSI): - Accuracy (%): +/-5.0 Full Scale Flow Material: Water, Other Liquids Agency Compliance: - Max. Pressure: 325 psi Max. Viscosity (SSU): - Resetable Cumulative Totalizer: -
• Housing Material: Polysulfone Center-Center Insert Size: - Item: Flowmeter Specific Gravity: 1.000 Type: Variable Area Temp.: - Depth: - Connection Size: 3/4" Width (In.): 1-1/2" Max. Temp. (F): 250 Length (In.): 8-1/4" Height (In.): 1-1/2 Flow Range: 1 to 16 gpm Fluid Temp. Range: 32 Degrees to 250 Degrees F Connection Type: MNPT For Pipe Size: 3/4" Fitting: Brass
