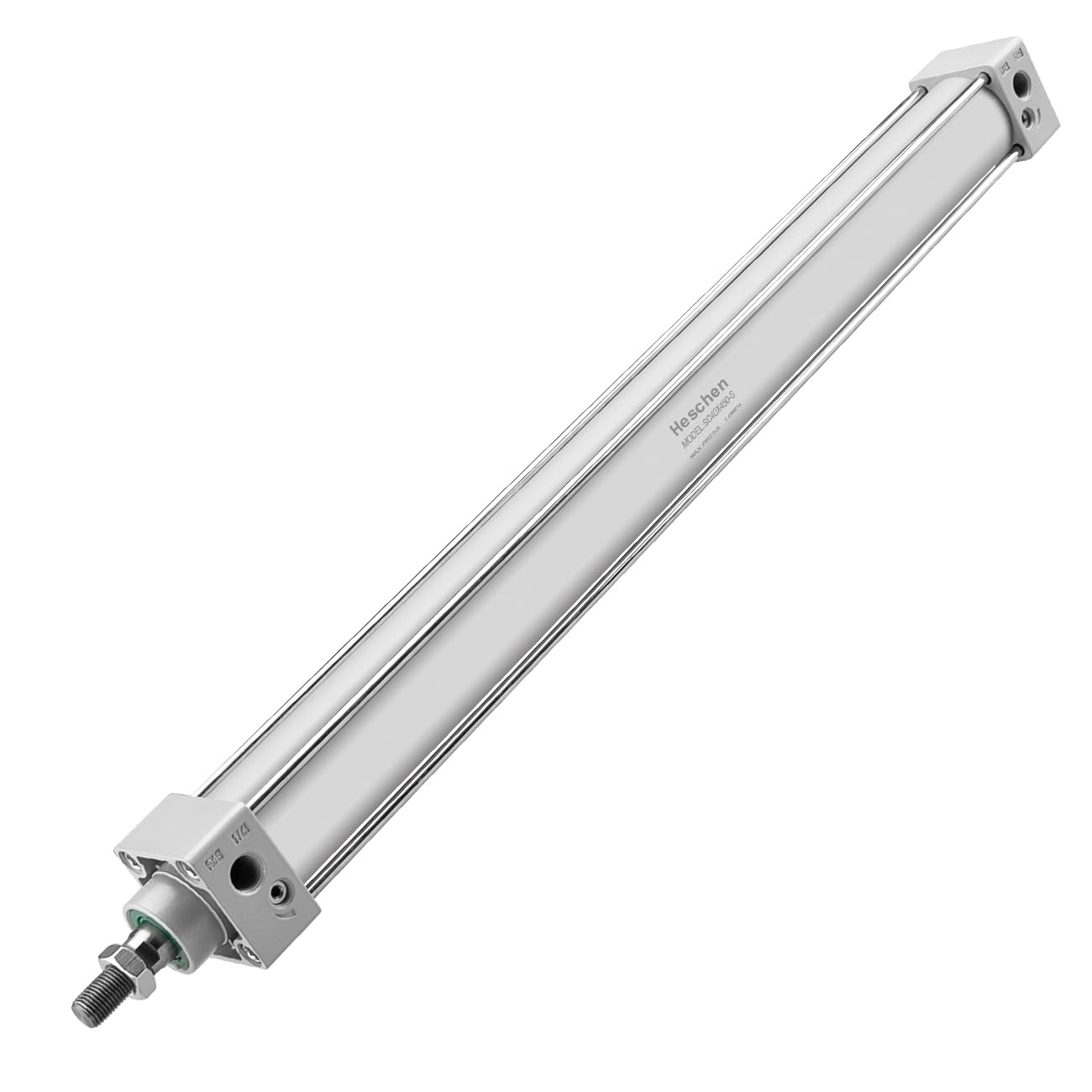

Heschen Tie-Rod Pneumatic Air Cylinder, SC 40-400, 40mm Bore, 400mm Stroke, PT 1/4 Port, Double Acting, Adjustable Cushion, Self-Lubricating Actuator for Industrial & Woodworking

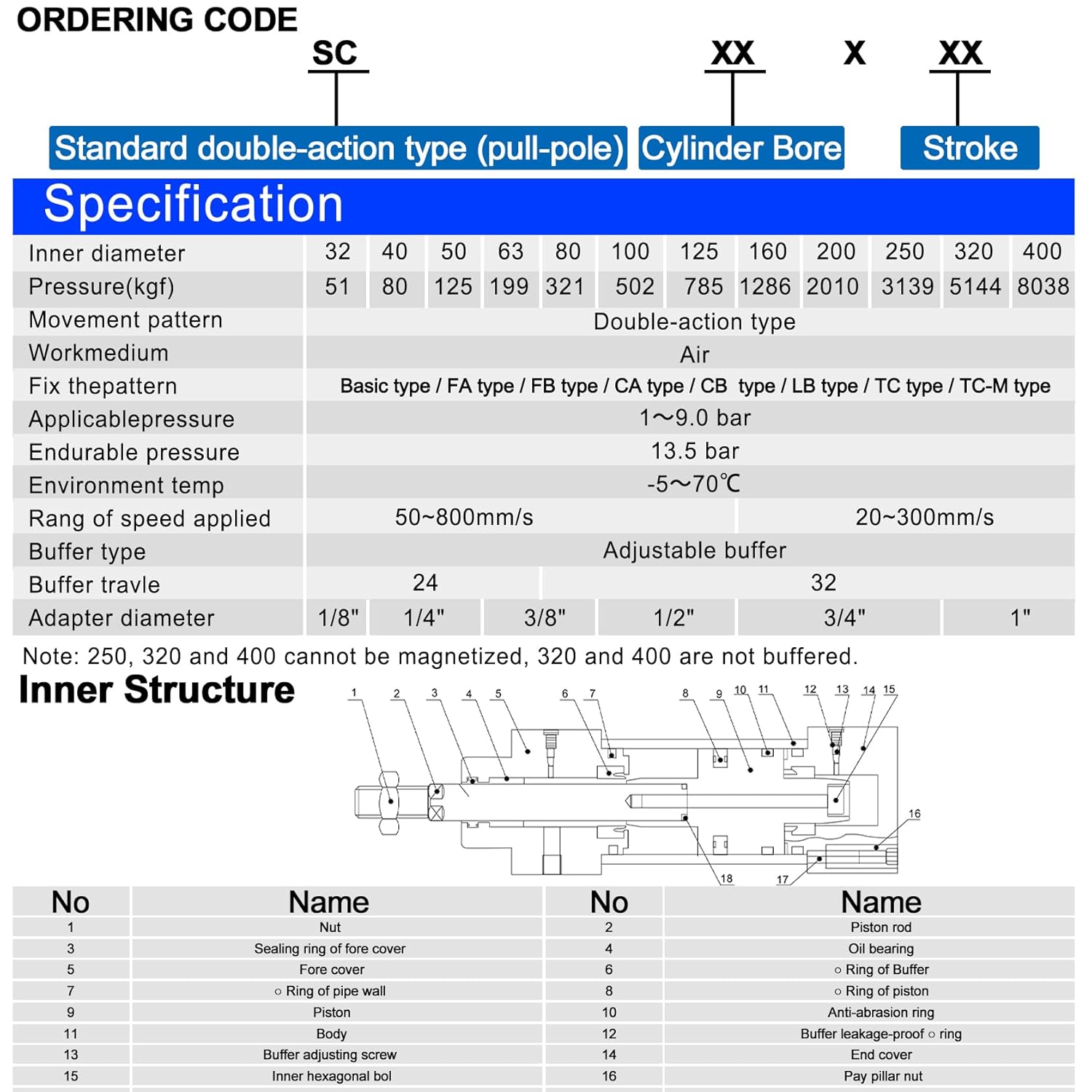

Heschen SC Series Standard Pneumatic Air Cylinder is engineered to deliver robust, reliable, and smooth linear motion for industrial automation, robotics, packaging machinery, and woodworking equipment. Designed as a double-action tie-rod cylinder, it provides consistent and powerful push and pull force tailored to your mechanical setups. [ Key Advantages ] - Built to Last: Features a premium aluminum alloy body and covers for high structural strength. The piston rod is crafted from high carbon steel, hard-chromium plated, and precision-grinded to resist wear and tear. - Zero Maintenance Required: Equipped with an advanced oil-bearing made from oily powder smelting copper, the piston rod is entirely self-lubricating. This eliminates the need for manual oiling, reducing equipment downtime. - Smooth Commutation: Includes an adjustable terminal buffer system. This allows the cylinder to reach its end position stably and quietly, preventing harsh mechanical impacts and extending the life of your machinery. [ Technical Specifications ] - Action Type: Double-Action - Working Medium: Air - Applicable Pressure Range: 1.0-9.0 Bar (14.5-130 Psi) - Endurable Pressure: 13.5 Bar - Operating Temperature: -5~70°C (23~158°F) - Speed Range: 50-800 mm/s [ Installation & Operation Guide ] 1. Filtration Required: The air medium used by the cylinder must pass through a filtering element above 40μm before entering the system. 2. Piping Check: Before connecting pipes, ensure all internal sundries and dust are cleaned to prevent debris from entering the cylinder. 3. Idling Test: Before putting it under load, perform an idling test run. Adjust the buffer to the minimum before running, then increase it gradually to avoid super-large shock damage. 4. Winter Operation: Under low-temperature conditions, anti-freezing measures must be adopted to avoid water freezing within the system.

• 【Bore & Stroke】40mm (1 9/16") x 400mm (15.75"); 【Port Size】PT 1/4. Precision engineered for a seamless drop-in replacement in industrial automation, pneumatic machinery, and woodworking equipment.
• 【Action Type】Double Acting, Single Rod; 【Fluid】Air. Delivers consistent, reliable push and pull power. Supports a standard applicable pressure range of 1.0-9.0 Bar (14.5-130 Psi) and an operating speed range of 50-800 mm/s.
• 【Material】Heavy-Duty Aluminum Alloy & High Carbon Steel. The cylinder body and covers are crafted from premium aluminum for superior structural integrity, while the hard-chromium plated steel piston rod and NBR seals ensure long-lasting, leak-proof performance.
• 【Buffer Type】Adjustable Buffer. Equipped with an advanced terminal adjustable cushioning system. This ensures the cylinder commutates stably and completes its stroke smoothly without harsh mechanical impact, significantly extending the lifespan of your setup.
• 【Working Temp】-5~70°C (23~158℉); 【Special Feature】Self-Lubricating. Features a specialized oil-bearing made from oily powder smelting copper, making manual piston rod lubrication completely unnecessary. Maintenance-free design dramatically reduces equipment downtime.
