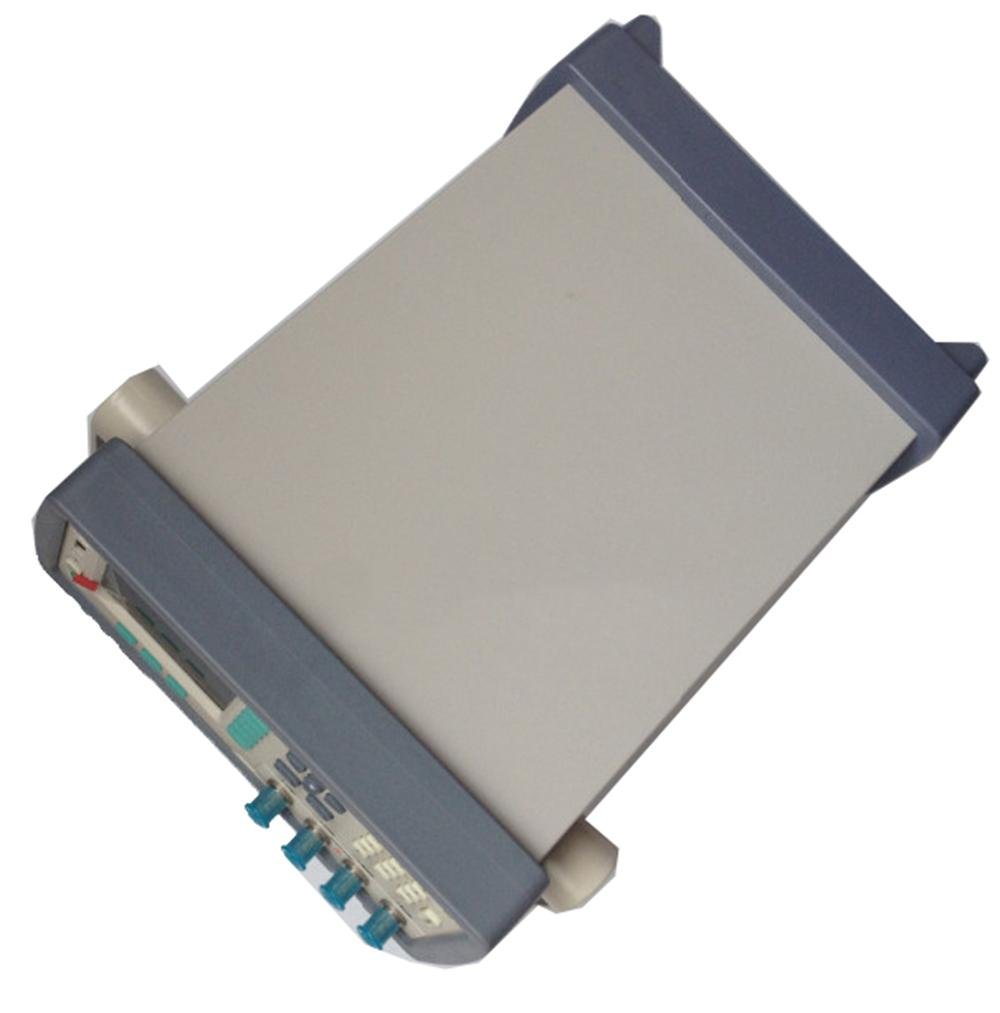

High Precision 16 Points Digital LCR Meter Tester 50HZ to 100kHz Frequency Signal Level 0.01V to 2.00V (10mV Step) True Color TFT LCD LCR Meter Tester with Resolution 0.001Hz RS232C Interface

Specification Parameters:Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,G-B,R-X,Z-θrad,Z-θdeg Monitor Parameters:Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ% Accuracy:0.05% Frequency:50Hz～100kHz Display Range:L: 0.00001μH-999999H C: 0.00001pF - 999999μF R,Z: 0.00001Ω - 99.9999MΩ D,Q: 0.00001 - 999999 Δ%: -999999% - 999999% Source Resistance:30Ω 50Ω 100Ω Range:9 ranges Automatic, Manual, Nominal Display Max:principle parameter: 999999; sub parameter: 999999 Signal Level:0.01V - 2.00V (10mV Step) Speed:30 t/s, 10 t/s, 6 t/s, 3 t/s 1 - 256 times average is available Comparator:14-bin sorting, 10-bin GD, 1-bin NG, 1-bin AUX, 2-bin principle parameter NG Adjustment:Open/Short sweep frequency reset, 3 point frequency and load correction Files:10 group files to save users' setting, 1 group system data save real-time Interface: RS232C, ExHandler Interface, with standard USB disc interface (article 10000 data) LCR automatic selection, keypad lock, SCPI instruction set, true-color TFT-LCD display Voltage: 90V AC - 250V AC Frequency: 50Hz - 60Hz Power: Max 20VA 264mm(Width)x107mm(Height)x350mm (Depth); 4kg ATL501: Test cable ATL607: Test fixture ATL600: Short-circuit slice ATL801: 232 Communication cable ATL608 SMD patch clamp ATL508: SMD patch test clip ATS2818: Data acquisition software ATL508A: SMD patch test clip

• ★●True-color TFT LCD Display ●Correction: OPEN and SHORT
• ★●View: ΔABS, Δ% or Sorting Result on 3rd Line ●Comparator Function: 10 files,14 bins: P1~P9,NG,AUX, HI, IN, LO
• ★●Interface: RS232C and Handler ●Optional Interface: USB The AT2817A is the use of a high-performance processors and highlight color LCD screen smart LCR Meter. Since the SMD technology makes AT2817A portability. We rely on highly skilled technical, so that the instrument even more outstanding performance.
• ★●Test signal monitor: Vm and Im ●Avarage rate: 1~99times AT2817A offers wide frequency range (50Hz~100kHz 16 points), programmable signal level (0.01V to 2.00V), auto range with 9 ranges, 30Ω or 100Ω constant output impedance and easy-to-use operation system.
• ★●Measurement Terminal: 4 terminals ●Key lock function0 kinds of frequency or voltage level, but also correct three groups of user frequency so as to improve the accuracy Built-in RS232C and handler interfaces help build an automatic component test system, communicate with the computer and analysis the test results.
