High Precision LCR Meter Digital LCR Meter Inductance Resistance Capacitance Measurement with Measuring Frequency 100Hz 120Hz 1kHz 10kHz Source Resistance 30Ω/100Ω Parameter Z D Q θ ΔABS Δ%

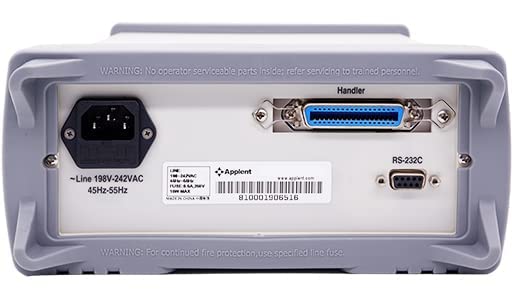

YFYIQI High Precision LCR Meter Digital LCR Meter Inductance Resistance Capacitance Measurement with Measuring Frequency 100Hz 120Hz 1kHz 10kHz Source Resistance 30Ω/100Ω Parameter Z D Q θ ΔABS Δ% Features: VFD Display Correction: OPEN and SHORT View: ΔABS, Δ% or Sorting Result on 3rd Line Comparator Function: 20 files, P1,P2,P3,NG,AUX, HI, IN, LO Interface: RS232C and Handler Key lock function Data Hold function Specification: Test Functions:L,C.R,Z,D,Q Accuracy:0.1% Measurement Frequency:100Hz, 120Hz, 1kHz, 10kHz Measurement Range:AUTO/HOLD, 6 Ranges Measurement Speed:15 times/s, 5 times/s, 3 times/s Display Range: L: 0.01μH-9999H C: 0.01pF – 9999μF R,X,Z: 0.0001Ω - 99.99MΩ D, 0.0001 – 9.9999 Q: 0.0001 – 9999.9 Source Resistance:30Ω and 100Ω Monitor Parameter:Z, D, Q, θ, ΔABS, Δ% Display Reader:5 digits: 99999 Equivalent Circuit:Serial and Parallel Signal Level:10.00mV~2.00V AC; 100.0μA~20.00mA AC Trigger Mode:INT/HOLD/MAN/BUS Comparator:P1/P2/P3/AUX/NG Comparator Mode:SEQ/ABS/PER Adjustment:OPEN/SHORT Zeroing Beep Feature:OFF/P1/P2/P3/AUX/OUT Interface:RS232/Handler Protocol:SCPI Power Supply:AC 198V-240V, 50Hz-60Hz;15W MAX

• The basic accuracy of 0.1% makes it suitable for use on production lines and laboratories.
• Test Functions:L,C.R,Z,D,Q; Accuracy:0.1%; Measurement Frequency:100Hz, 120Hz, 1kHz, 10kHz; Measurement Range:AUTO/HOLD, 6 Ranges
• The built-in high speed comparator significantly reduces production line tact time and allows the construction of automatic production lines.

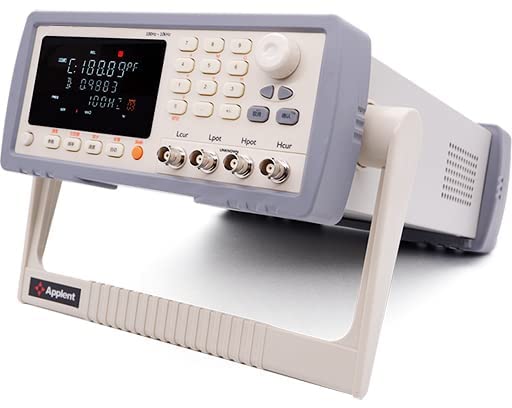

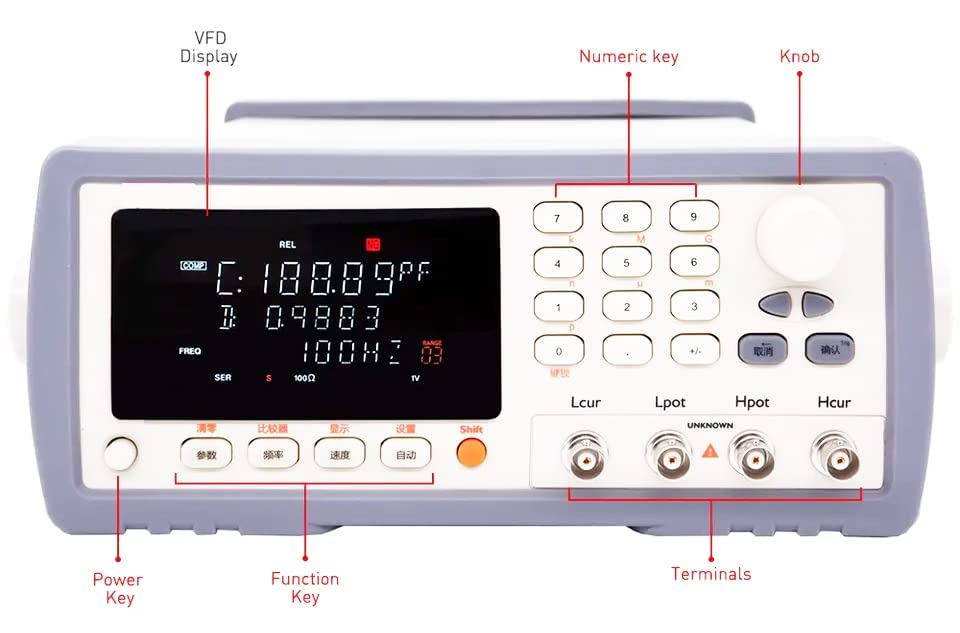

• The very compact body features a clearly visible VFD display that facilitates easy operation and allows settings to be confirmed at a glance.
