High Voltage Insulation Resistance Tester Intelligent HV Insulation Resistance Measurement with Insulation Resistance Range 0.5MΩ～5TΩ Output Voltage Accuracy（5%～10%）±10V

QIUSUO High Voltage Insulation Resistance Tester Intelligent HV Insulation Resistance Measurement with Insulation Resistance Range 0.5MΩ～5TΩ Output Voltage Accuracy（5%～10%）±10V Technical specifications Rated Voltage：250v，500v，1000v，2500v，5000v，10Kv Output Voltage Accuracy：（5%～10%）±10V Insulation Resistance Range：0.5MΩ～5TΩ Output Short Circuit Current:≥5mA Power Supply:Rechargeable lithium battery pack 5.2Ah Polarization Index Test:Yes Dielectric Absorption Ratio Test:Yes Filtered Resistance Test Mode:10S,20S,30S,40S (4 selection) Voltage Measurement Range: AC/DC 0V~1000V;Accuracy: ±(5%+3V);Resolution: 1V Current Measurement:Range: 0.01nA~6.00mA;Accuracy: ±(5%+0.2nA);Resolution: 1pA Capacitance Measurement:Range: 10nF~25uF;Accuracy: ±(10%+5nF);Resolution: 1nF Voltage Monitor:Monitor the voltage of the measured object, and monitor discharge status after test, Forbidden to test when voltage is larger than 36V, protect instrument and operator. Test Timer:Automatic record test time, time range: 0s~9999s Storage Function:Automatically store the test data with test date and time, total of 1000 groups Upload Function:Upload the stored data to computer with USB communication cable. Battery Power Display:With battery power display, when battery voltage low will remind to replace the battery Automatic Shutdown:After 15 minutes start up will shut down automatically without any operation Meter Dimension:280mm×260mm×160mm Meter Weight:4400g (include battery) Test Wire:Red color high voltage test wire 1 pcs (with alligator clip 1PCS and hook 1PCS), green color test wire 1PCS, black color test wire 1PCS Working Environment:-20℃~50℃;80%rhStore Environment-25℃~65℃;80%rh Insulation Resistance:50MΩ(1000v)(between the test circuit and shell)

• Insulation Resistance Range 0.5MΩ～5TΩ Output Voltage Accuracy（5%～10%）±10V；Output short-circuit current ≥5mA Rated voltage 250v, 500v, 1000v, 2500v, 5000v, 10Kv

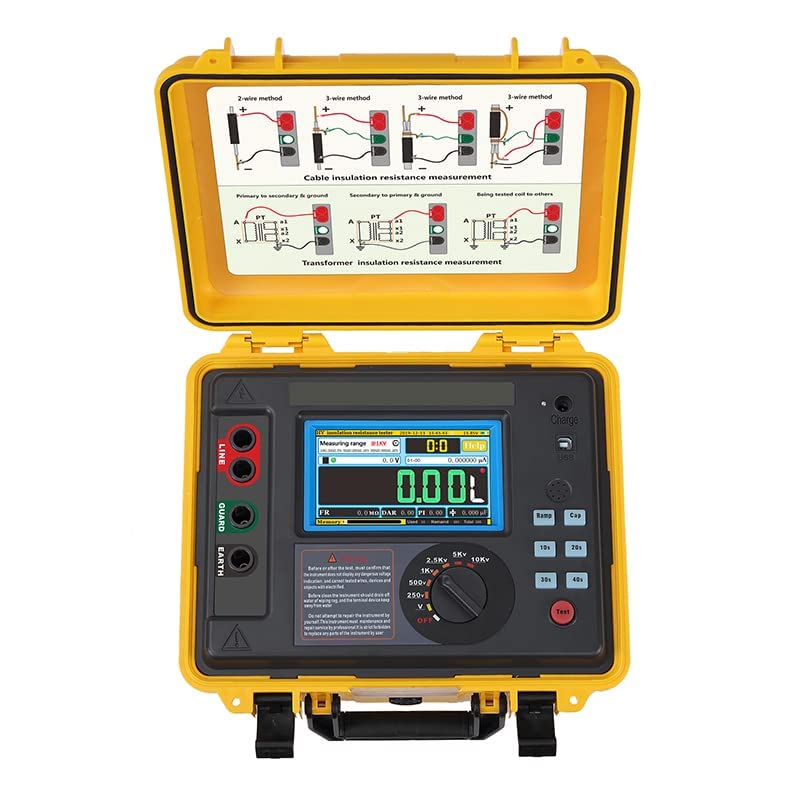

• Rich display content, the same screen display: various test modes and insulation resistance value, output voltage and DUT voltage, leakage current, test timing, test time, battery power, operation help.

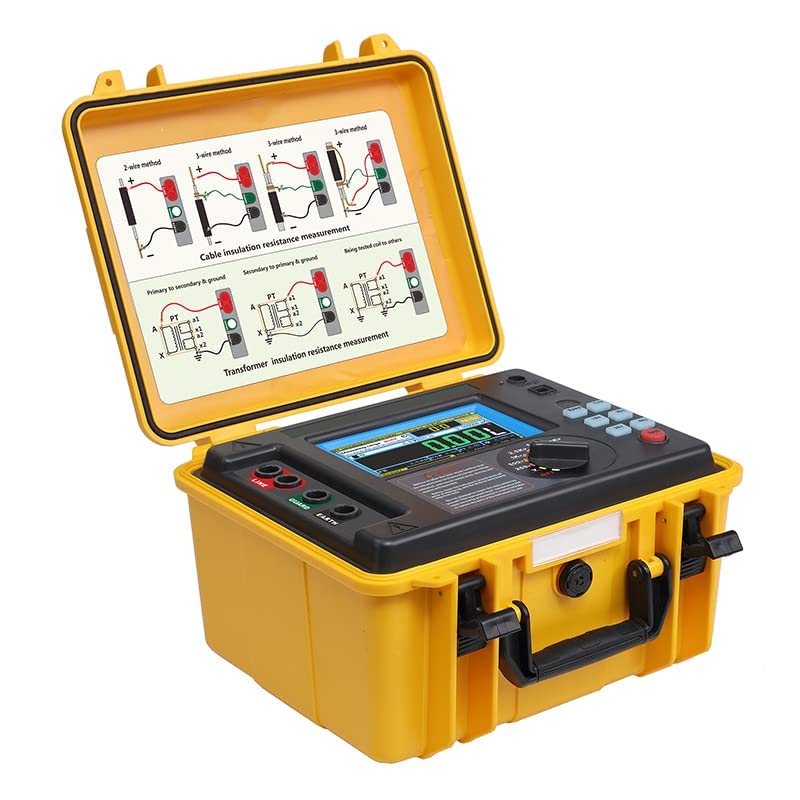

• Touch color screen and keys, band knob combination, the function of direct one-key test completed, query record operation is simple. Double shell structure, durable, protection class IP65.
• Voltage monitor function, automatic monitoring of the charged voltage of the measured object. Test timer function, automatically record the test time. Automatic discharge function, automatically release the charged charge of the DUT after testing.
• Storage function, can automatically store the real-time test data with test date and time, test timing a total of 1000 groups. 9. Upload function, the recorded data can be uploaded to computer through USB communication cable for statistical analysis.
