hmv 26e - skf - Maintenance Products

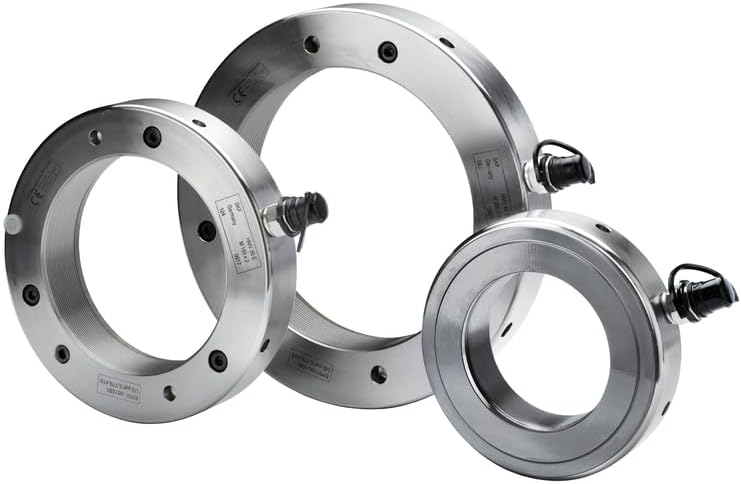

SKF HMV 26E M130x2 Thread5mm Permitted Piston Displacement6400 mm2 Piston Area Hydraulic Nut, M130x2 Thread Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using an SKF Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of an SKF Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. These nuts are supplied with a quick connection coupling to fit the SKF hydraulic pumps. Mounting HMV ..E nut for driving the bearing onto a tapered seating. HMV ..E nut screwed onto the shaft for driving in a withdrawal sleeve. HMV ..E nut for driving the bearing onto an adapter sleeve.

• Wide size range, covering shaft diameters from 50 to 1 000 mm as standard
• Full range of inch threads available, series HMVC ..E from 1.967 up to 37.410 in.
• Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited
• A spare set of piston seals and maintenance kit is supplied as standard
• To assist nut threading, a tube of lubricant is supplied with all nuts of size HMV(C) 54E and larger
