HR390 Milliohm Meter Low Resistance Tester Ohmmeter to Measure Resistance Value
4.5 (27 items)
Limited Time Sale$24.60 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211160681 | Release Date | 2026/04/04 | List Price | $16.40 | Model Number | 211160681 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

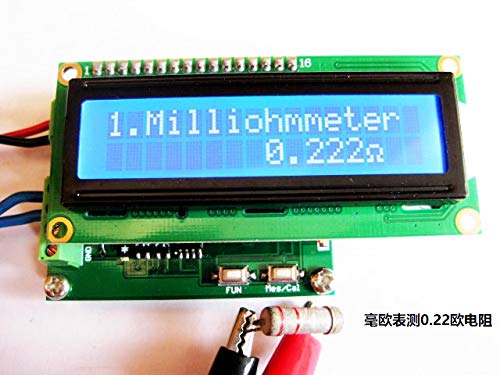

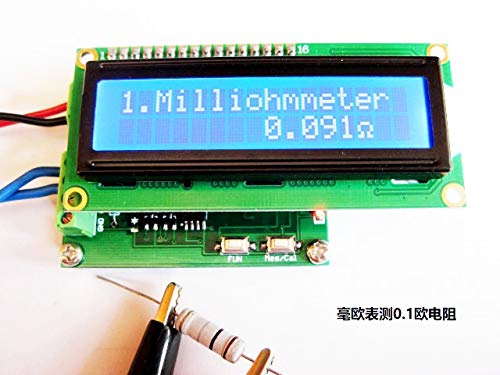

Description: The HR390 is a small milliohm meter that can be used to measure resistance meters. It is easy to use. Applications: ● measure the resistance value; Technical Data Sheet: 1 Measuring resistance range 0.001 ~ 120 Ω 2 Resistance measurement resolution 1 mΩ 3 measuring capacitance range 10pf ~ 20000uf 4 capacitance measurement 1pf 5 working voltage 7~12 VDC 6 operating current <100 mA 7 Size 57*45*20 mm Length X Width X Height Interface description and related operations P1 wiring definition: No. Symbol Meaning 1 VDD module power supply positive (7V~12V) 2 GND power supply of the module P3 wiring definition: No. Symbol Meaning 1. R+ connected to the measuring resistor 2. R-connected measuring resistor 3. CAP is connected to the measuring capacitor positive 4. GND is connected to the negative of the measuring capacitor Key Description FUN: Switch the measured capacitance value or resistance. Mes/Cal: Calibration (resistance short circuit measurement line calibration, capacitance open measurement line calibration) Packing: 1pc * HR390 Milliohm meter
- Applications: measure the resistance value
- Measuring resistance range 0.001 ~ 120 Ω
- Resistance measurement resolution 1 mΩ
- measuring capacitance range 10pf ~ 20000uf
- working voltage 7~12 VDC
| Color | Black, green |
|---|---|
| Brand Name | Jolooyo |
| Manufacturer | Jolooyo |
| Power Source | Corded Electric |
| Measurement Type | Ohmmeter |
| Minimum Operating Voltage | 7 Volts (DC) |
