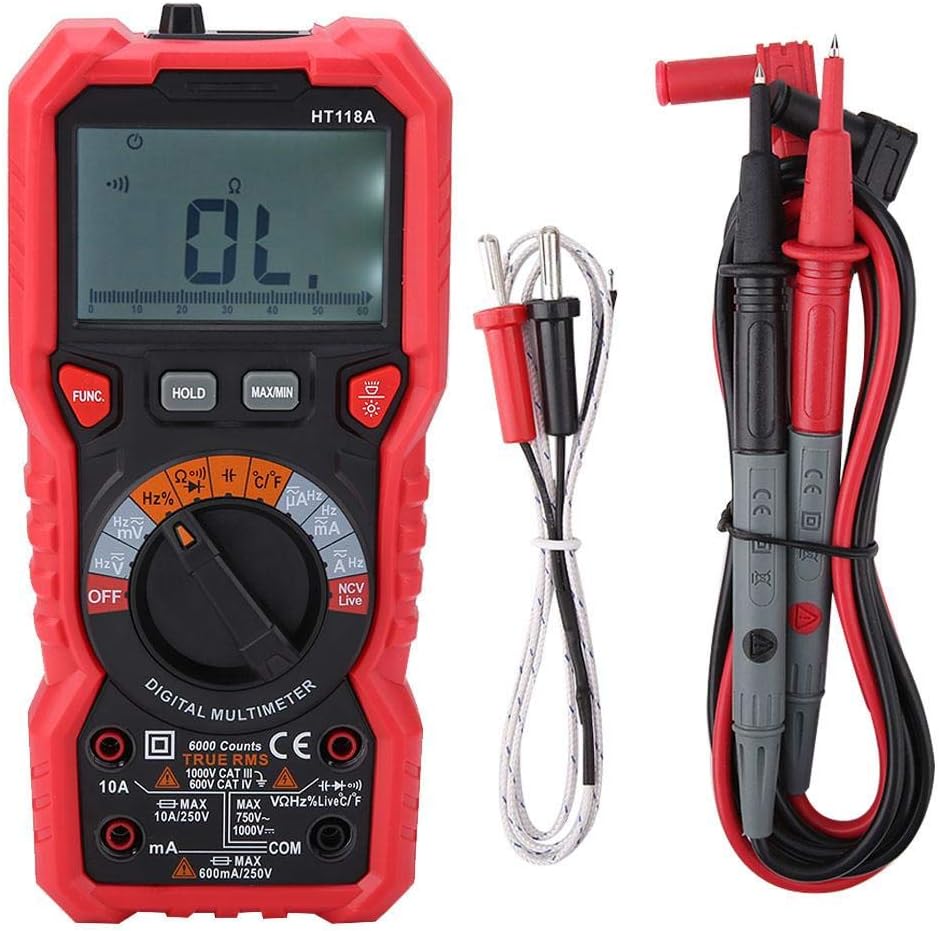

HT118A Handheld Digital Multimeter AC/DC Voltmeter Ammeter Volt Amp Ohm Capacitance Hz Temp Tester with Flashlight

Measurement Range Resolution Accuracy DC Voltage 600mV 0.1mV (0.5% reading+3) 6V 0.001V 60V 0.01V 600V 0.1V 1000V 1V AC Voltage 600mV 0.1mV (0.8% reading+5) 6V 0.001V 60V 0.01V 600V 0.1V 750V 1V DC Current 600A 0.1A (1.2% reading+3) 6000A 1A 60mA 0.01mA 600mA 0.1mA 10A 0.01A AC current 600A 0.1A (1.5% reading+3) 6000A 1A 60mA 0.01mA 600mA 0.1mA 10A 0.01A Resistance 600 0.1 (1.0% reading+3) 6k 0.001k 60k 0.01k 600k 0.1k 6M 0.001M (1.5% reading+3) 60M 0.01M Capacitance 10nF 0.001nF (4.0% reading+5) 100nF 0.01nF 1000nF 0.1nF 10mF 0.001mF 100mF 0.01mF 1000mF 0.1mF 10mF 0.001mF (5.0% reading+5) 100mF 0.01mF Frequency/Duty 10Hz 0.001Hz (1.0% reading+3) 100Hz 0.01Hz 1000Hz 0.1Hz 10kHz 0.001kHz 100kHz 0.01kHz 1000kHz 0.1kHz 10MHz 0.001MHz (3.0% reading+3) 1~99% 0.1% Temperature -20~ 0 1 5.0%reading or 3 0 ~ 400 1.0% reading or 2 400 ~ 1000 2.0% reading -4~ 32 1 5.0% reading or 6 32~ 752 1.0% reading or 4 752~ 1832 2.0% reading Function Diode Test Yes Continuity Test Yes NCV Yes Live Test Yes High Voltage Prompt >80V or >1A Data Hold Yes Max/Min Yes Backlight Yes Flashlight Yes Display 6000 counts Auto Power Off 15min Over Range Indication "OL" Low Battery Indication Yes General Parameters Model HT118A Material Plastic Color Red + Black Sampling Rate About 3 times/second Battery Type 2 x 1.5V AAA batteries (NOT included) Working Environment 0~40C, <80% RH Storage Environment -10~60C, <70%RH Package Weight 493g / 17.4oz (approx.)

• Features: This multimeter can measure AC/DC voltage and current, resistance, capacitance, frequency, temperature, diode and
• continuity. Clear backlight LCD display, easy to read. With bright flashlight, convenient to operate at darkness. Support
• maximum/minimum value measurement. More functions: Data hold, NCV, auto power off, over range indication, low battery indication,
• high voltage prompt and more.
