Hydraulic Electric Solenoid Directional Control Valve 2 Position D03 (NG6) 18-21GPM 4560psi Fluidhaus VSD6 series (AP: P to A and B blocked de-energized, 12VDC)

This hydraulic solenoid valve is widely used in industrial automation, mobile machinery, agricultural machinery, construction machinery, and other fields. It has a compact structure, a small size, a light weight, high reliability, and easy operation. The solenoid valve is made of high-quality materials, has a long service life, and is durable. It is easy to install and operate, and can be used in a wide range of applications.

• Fluidhaus valve coils are fully encapsulated by injection molding. This is a more reliable sealing process than traditional potting, with better protection against moisture, vibration, temperature and provides greater life cycles.
• Maximum working pressure = 4560psi (315 Bar)
• 2-position, 4-way, energize to shift, Spring return
• Valve can be mounted in any direction.

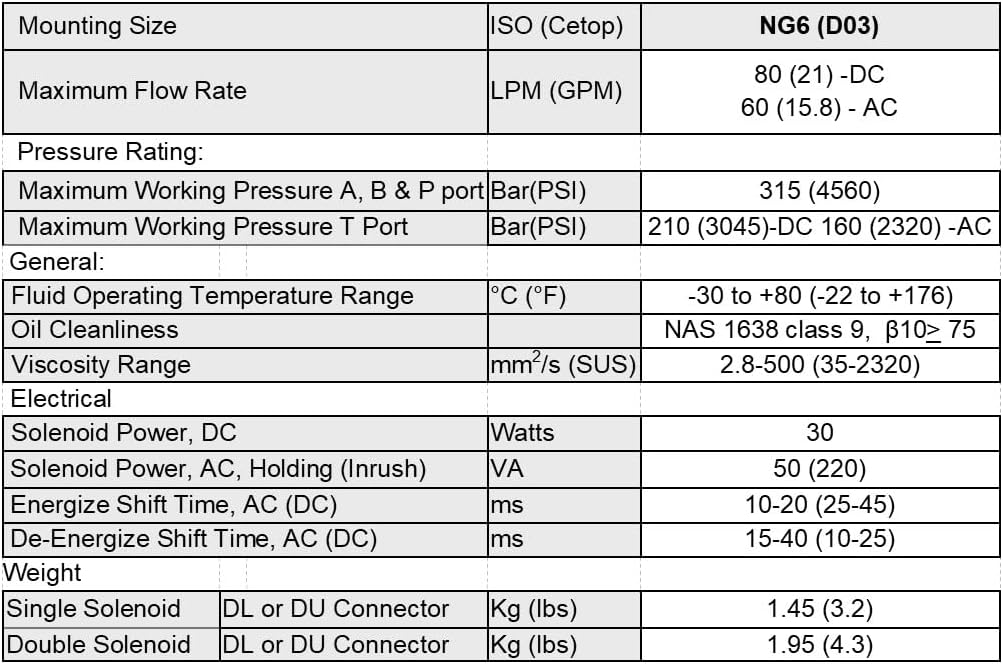

• Maximum flow of 21 gpm for DC power and 15.8 gpm for AC (reference Solenoid Power limit chart)
• Includes lighted DIN connector for each coil. LED illuminate’s clear connector housing when power is supplied to the connector/coil. IP65 water and dust rating.
• Universal Hydraulic Solenoid Electrical Directional control valve with industry standard D03 (NG6) sub plate mounting pattern. Used to control the motion of hydraulic motors and cylinders.
