Inclined High-Pressure Cooling Nozzle * 5PC. Installation Thread 1/8" PT 10/30/50mm 304 Material, Suitable for CNC Machine Tools, Lathe Water Spray Jet Cooling.（HTAP-1/8-10)
4.2 (36 items)
Limited Time SaleUntil the end
18
56
04
$28.80 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $48.00
Product details
| Management number | 211342549 | Release Date | 2026/04/04 | List Price | $19.20 | Model Number | 211342549 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- It's specially-designed mechanical structure can bring out an adjustable angle featuring 360° gyration after the oblique 35° angle, thus helping adjust a wide injection range.
- Using 304 stainless steel material and precise assembly to maximize the functionality of the high-pressure universal nozzle.

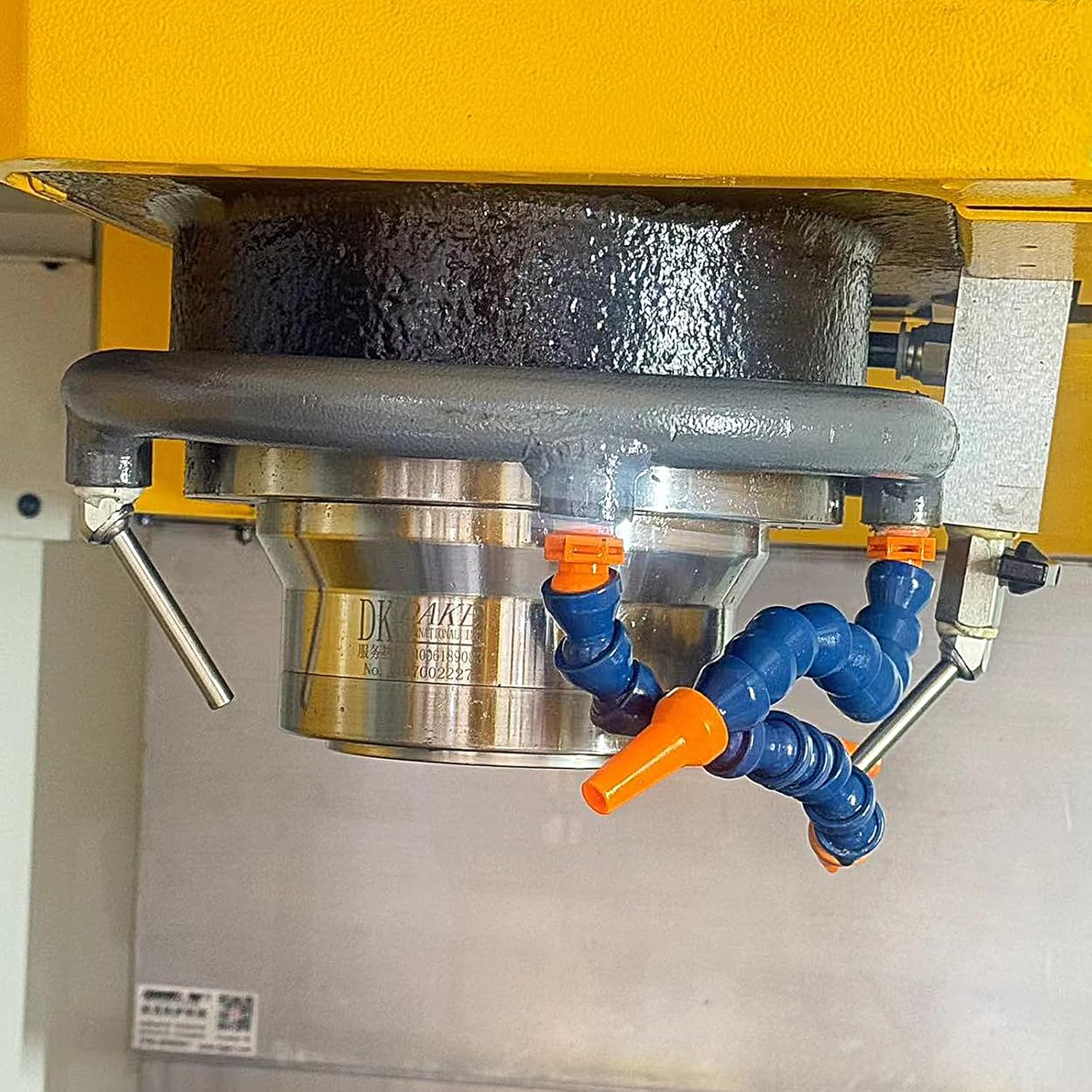

- A wide range of adjustable angle, an easy adjustment.Steady and accurate positioning with no spring-back.Applied to the spraying, cooling system and ejector system of each type of machine.Multi-size Optional: thread ( PT/ NPT), screw joint size (1/8, 1/4, 3/8, 1/2), pipe length (10/30/50 mm) are Choosable to meet more different machine needs, you can choose the exact size nozzle for your machin

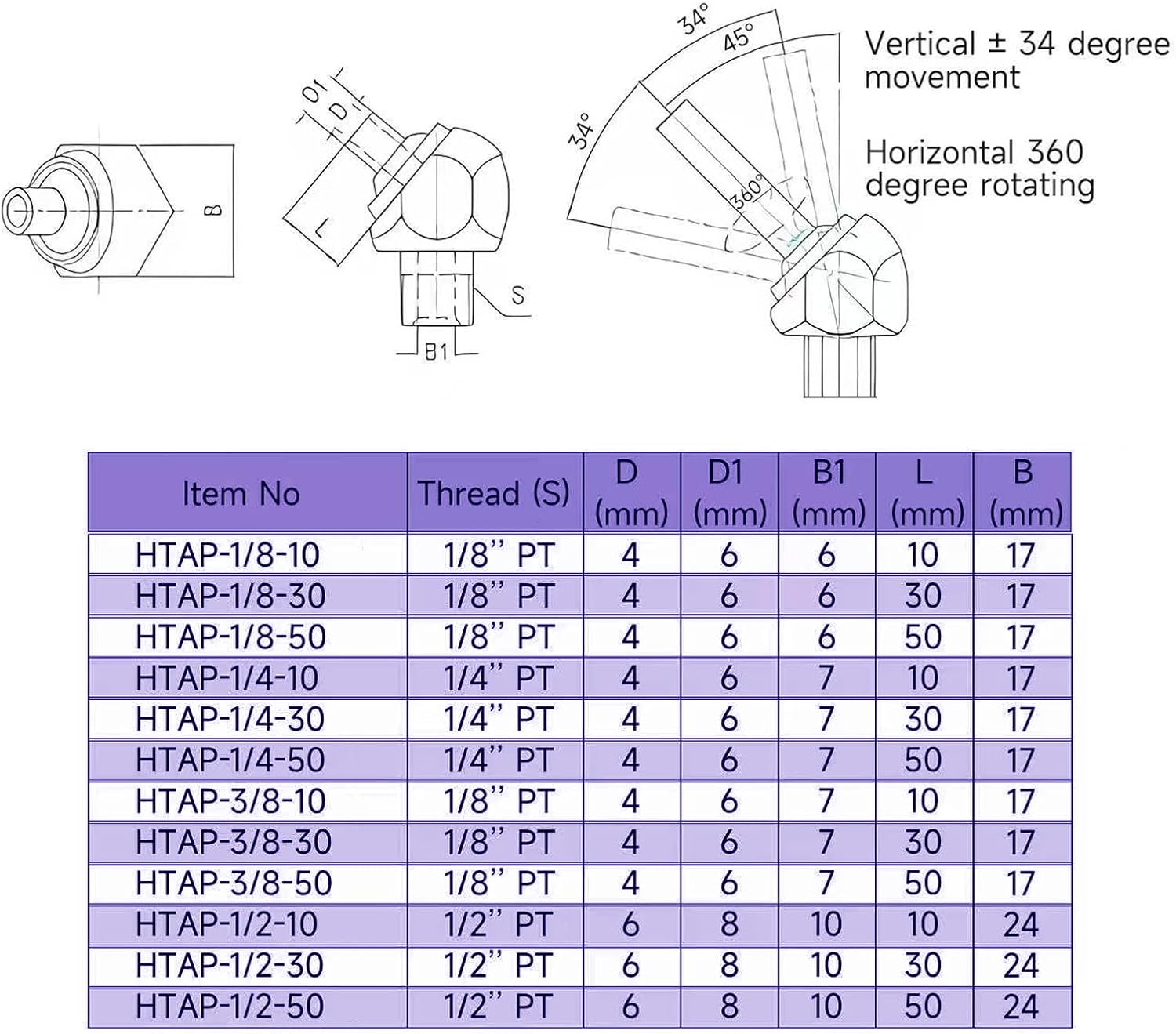

- Specification: thread-1/8" PT, pipe length-10mm, ID- 4mm, OD- 6mm, vertical movement- 34 degree, horizontal rotating:- 360 degree.PLEASE NOTE: This set is PT thread, please make sure your equipment is suitable for this specification. If you need NPT thread, please choose NPT thread products in our store.
- Package Includes: coolant nozzle x 5 pcs.，Regulating direction lever 1 piece
| Size | HTAP-1/8-10 |
|---|---|
| Brand Name | DCYCBTH |
| Unit Count | 5.0 Count |
| Valve Type | Ball Valve |
| Manufacturer | DCYCBTH |
| Model Number | HTAP-1/8-10 |
| Material Type | Stainless Steel |
| Exterior Finish | Stainless Steel |
| Number of Ports | 2 |
| Included Components | Package Includes: coolant nozzle x 5 pcs. |
| Inlet Connection Type | PT |
| Outlet Connection Type | PT |
