INTBUYING Electric Linear Actuator Motor 8inch(200mm) Stroke 12V DC,1320LBS(6000N) with Mounting Bracket Heavy Duty Actuators Controller
5.0 (46 items)
Limited Time SaleUntil the end
16
50
50
$45.59 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $75.99
Product details
| Management number | 211204598 | Release Date | 2026/04/04 | List Price | $30.40 | Model Number | 211204598 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Wide application: The linear actuator is widely used in number of industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on

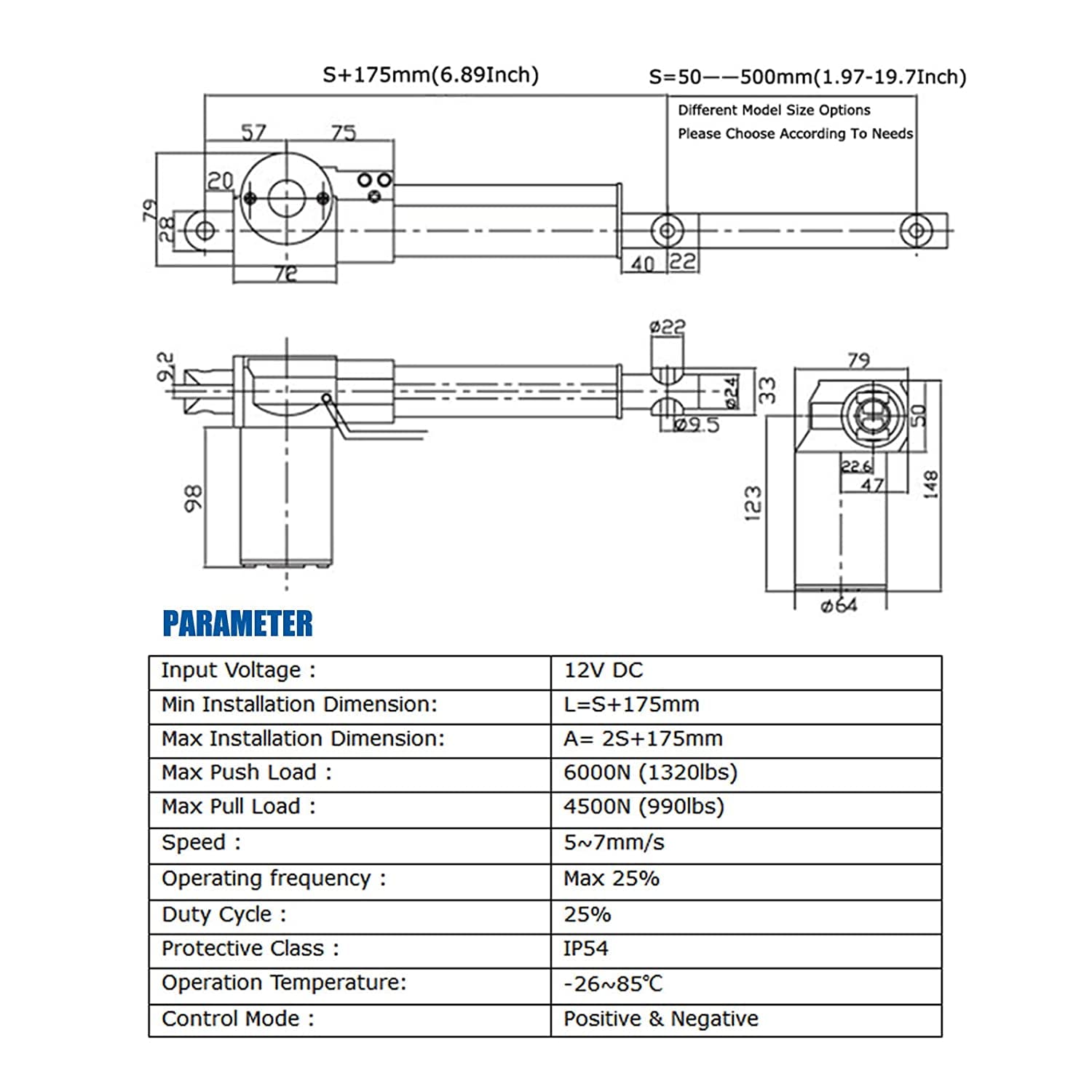

- Specification: Input Voltage:12V DC; Stroke Length :S = 200 mm (8 inch); Min Installation Dimension:L=S+175 mm; Max Installation Dimension:A= 2S+175 mm; Max Push Load :6000 N (1320 lbs); Max Pull Load :4500 N (990 lbs);Speed :5~7 mm/s; Operating frequency :Max 25%; Duty Cycle :25%; Protective Class :IP54; Operation Temperature:-26~85 ℃; Control Mode :Positive & Negative
- High quality: Linear Motion Actuators With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt- ability etc. High quality metal material, high performance motor, built-in stroke switch. Plastic gear: smooth transmission, wear - resistant, high transmission torque.Pure copper core: low heating, long service life and more stable performance
- Quiet and comfortable: This linear actuator works with Max. 48db sound, quiet on working, not to create annoying sound. Built-in limit switch, stop at any position in the stroke.Maximum push/pull is up to 6000N, and stroke speed is up to 30mm/s when under no-load
- Easy assembly: Easy to install, all accessories included.Screw washer design, specially added flat washers, effectively prevent the screws from falling off automatically, ensuring safety
| Item Weight | 5.69 pounds |
|---|---|
| Manufacturer | INTBUYING |
| Item model number | D021054FBA |
| Package Dimensions | 18 x 8 x 6 inches |
