iVAC Contactor (C115-A-NA)

A heavy duty 3 pole relay housed in an electrical box. Controlled from an iVAC Switch Box SB-NA (sold separately) or an iVAC Pro Switch S11520-A-NA (sold separately). Withstands startup currents up to 150A and maintains running current up to 40 Amps. Contacts are rated at up to 600Vac, single or three phase. Warning! You must use a 115 volt Switch with the iVAC Contactor regardless of the operating voltage of your dust collector. iVAC Contactor – for larger workshops with heavy duty/industrial vacuums and dust collectors The iVAC Contactor allows you to connect a high powered dust collector or shop vacuum to your iVAC system. In larger workshops it’s common to see large dust collectors, sometimes up to 10 horsepower. These larger units can place heavy demands on your electrical circuits, and in many cases the start up current can be as much as four to five times the operating current and last for several seconds. This initial surge can over time damage the contacts in the iVAC Switch. The iVAC Contactor can withstand start-up currents of up to 150 Amps and then maintain a running current of up to 40 Amps. It’s also rated to operate at up to 600Vac in either single or three phase mode and can be used to control dust collectors up to 10HP and larger if the dust collector is operating on a higher voltage or 3 phase power. Installation of a contactor should be performed by a certified electrician as it involves custom connections. The iVAC Contactor kit contains the following materials: - Contactor 3PPole 42 Amp 120Vac control cCSAus approved - 6' control cable, 3 x 18G NEMA 5-15P UL/CSA approved - 204 x 108 x 139 mm, IP65 CE enclosure box - 2 x PG21 cable glands UL listed - 1 x PG16 cable gland UL listed Not Sure About Your Shop Vacuum’s Requirements? Shop vacuums and dust collectors can be a bit confusing. To compel you to purchase, high horsepower figures are often stated on even the smallest machines, using the term “Peak Horsepower”. However, peak horsepower is the point at which a vacuum’s motor stalls, and does not represent the actual horsepower under typical operating conditions, or the unit’s vacuum pressure. Most residential shop vacuums that are sold over the counter are designed to operate on a typical 115Volt, 15 Amp circuit. That said, here are some rules of thumb for deciding whether or not you require an iVAC Contactor for your workshop. - vacuums/dust collectors operating on 115Vac that are over 1HP, - vacuums/dust collectors over 2.0HP operating on 240Vac - or commercial/industrial units with a continuous rating of up to 10HP At iVAC, we design dust collection control systems to perform reliably in real-world workshop environments. All iVAC products include a one-year limited manufacturer warranty covering defects in materials and workmanship. Our support resources are designed to help you get the most from your system and keep your dust collection setup running smoothly. For warranty details, product registration, or support information, please visit our website.

• Control dust collectors up to 10HP.
• Supplied in a kit format to enable customized installation for specific requirements.
• Controlled from a 115 volt iVAC Pro Switch (S11520-A-NA) or an iVAC Switch Box (SB-NA)

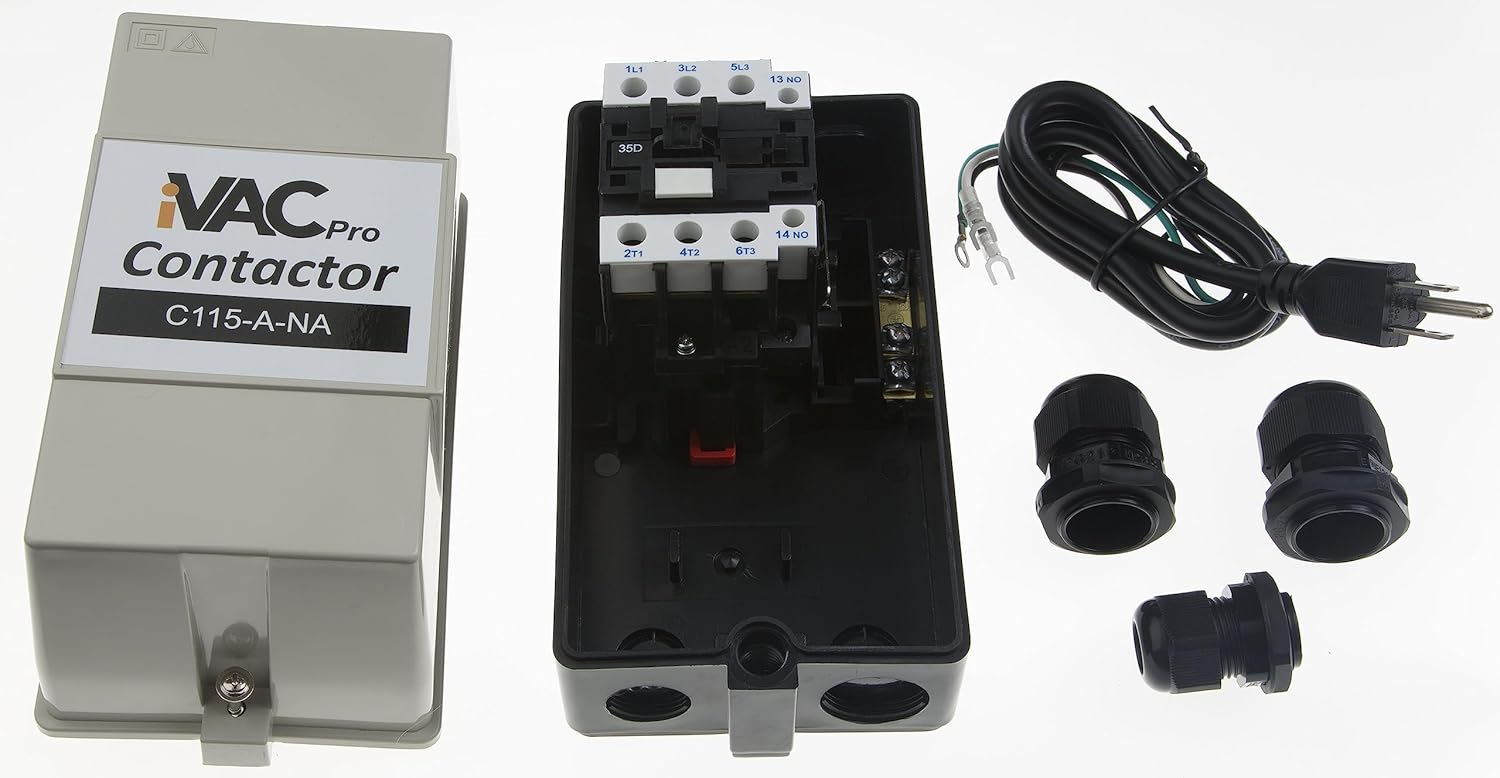

• Contains: 1. Contactor 3Pole 42 Amp 120Vac control cCSAus approved. 2. 6' Control Cable. 3. 3 x 18G NEMA 5-15P UL/CSA approved. 4. 204x108x139 mm, IP65 CE Enclosure Box. 5. 2 x PG21 cable glands UL listed. 6. 1 x PG16 cable gland UL listed
• iVAC products are backed by a limited manufacturer warranty covering defects in materials and workmanship. Warranty service and technical support are available for eligible products with valid proof of purchase. Customers can access product registration, warranty details, and support resources on our website.
