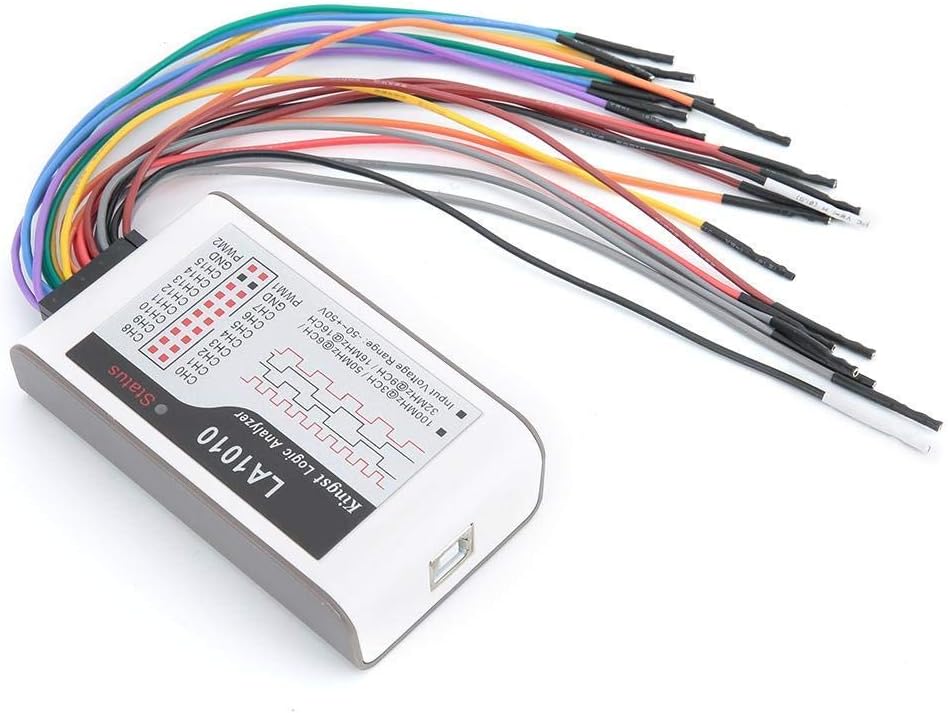

LA1010 USB Logic Analyzer, 16 Channels 100MHz Digital Logic Analyzer, Adjustable Threshold PWM Output, for Windows XP/7/8/10 (32bit/64bit), for Mac OS, Linux
4.0 (145 items)
Limited Time Sale$37.52 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211725647 | Release Date | 2026/04/04 | List Price | $25.01 | Model Number | 211725647 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification: Item Type: Logic Analyzer Language: Chinese and English can be switched Input Channel: 16 Maximum Sampling Rate: 100m Measuring Bandwidth: 20 Meters Minimum Pulse Width Captured: 20 ns Maximum Sampling Depth: 10g / channel Input Voltage Range: -50~+50V Input Impedance: 220 KΩ, 12 pF Adjustable Threshold Voltage: -4~+4V, step: 0.01V Pulse Width Modulation Channel: 2 Pulse Width Modulation Frequency Range: 0.1~10mhz Pulse Width Modulation Frequency Adjustment Step: 10 ns Pulse Width Stepping: 10ns Pulse Width Modulation Output Voltage: +3.3V Pulse Width Modulation Output Impedance: 50Ω Standby Current: 100mAh Maximum Operating Current: 150mA Size: Approx. 95 x 55 x 23mm / 3.7 x 2.2 x 0.9in Supported Operating Systems: for Windows XP, for Vista, for Windows 7/8/10 (32/64 bit) Supported Standard Protocols: uart/rs-232/485, i2c, can, dmx512, hdmi-cec, i2s/pcm, jtag Package List:1 x Logic Analyzer2 x 9P Cable 1 x 2P Cable 20 x Test Hook1 x USB Cable1 x CD1 x Instruction Manual
- BRIEF INTRODUCTION: 100M high sampling rate, 16 channels, 10G depth, multi-logic level threshold voltage adjustable. Supports multiple protocol parsers and integrates 2-channel PWM generators. Ideal tools for system development and debugging such as MCU, ARM, FPGA, etc.
- POWERFUL SOFTWARE: The supporting software and resources can support Chinese and English, and the Chinese and English software languages can be adjusted. It supports for Windows XP/7/8/10, for Linux, for MAC OS and other operating systems. It is more powerful and better than oscilloscope in digital analysis.
- BASIC PARAMETERS：Input channels number: 16; Sampling rate: 100M@3CH, 50M@6CH, 32M@9CH, 16M@16CH; USB 2.0 interface, sampling depth: 10G; input voltage: -50 ~+50V; Adjustable threshold voltage: -4~+4V; PWM frequency range: 0.1MHz-10MHz.
- SUPPORTED STANDARD PROTOCOLS: UART/RS232/485, I2C, SPI, CAN, SDID, DMX512, I21/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, SMBus, UNI/O. USB1.1, Infrared, parallel, PS/2, etc
- FEATURES: Data display in decimal/hexadecimal/2/ASCII format is convenient for observation and analysis. Both sampling data and analytical data can be exported, which is convenient for archiving or other analysis software.
| UPC | 738680103628 |
|---|---|
| Color | Multicolor |
| Model | LA1010 |
| Brand Name | Acogedor |
| Cable Type | HDMI, USB |
| Item Shape | Round |
| Model Name | LA1010 |
| Unit Count | 1.0 Count |
| Manufacturer | Acogedor |
| Connector Type | HDMI, USB 2.0 |
| Number of Pins | 4 |
| Maximum Voltage | 50 Volts (DC) |
| Number of Items | 1 |
| Connector Gender | Male-to-Male |
| Compatible Devices | ARM Processor, CAN Device, FPGA, I2C Device, Microcontroller (MCU), Other Devices with Supported Standard Protocols, SPI Device, UART/RS232/485 Device |
| Data Transfer Rate | 100 MHz |
| Included Components | inc |
| Indoor Outdoor Usage | Indoor, Outdoor |
| Customer Package Type | Standard Packaging |
| Recommended Uses For Product | Electronic System Debugging, Digital Signal Analysis, Protocol Testing |
| External Testing Certification | Não aplicável |
