LC1020E Digital LCR Meter ESR Tester, 0.3% Accuracy, 5 Freq, 4-Terminal Kelvin, USB-C, 3000mAh Battery Inductance Capacitance Resistance(LC1020E in English)

Product description Features: 1. High-Precision, Wide-Range Measurement: The LC1020E boasts a basic accuracy of up to 0.3%, reliable and precise professional measurements. It supports a wide measurement range of inductance (0-100H), capacitance (0-100mF), and resistance (0-10MΩ), making it suitable for a wide range of components.2. Multiple Frequencies and Selectable Test Levels: This LCR meter five selectable test frequencies (100Hz, 120Hz, 1kHz, 10kHz, 100kHz) and three test levels (0.1V, 0.3V, 0.6V), providing the flexibility to accurately analyze component characteristics under a wide range of conditions, from general-purpose testing to high-frequency parameter analysis.3. Dual Test Ports for Versatile Versatility and Reliability: The device a convenient three-terminal test socket for quick, everyday measurements, as well as a five-terminal test slot. The five-terminal configuration supports full four-terminal Kelvin measurements when used with professional test fixtures, minimizing impedance errors and the highest measurement accuracy. 4. Intelligent Component Sorting and Data Logging: The intelligent comparison function significantly improves batch testing efficiency. Simply set the nominal value and tolerance (0.1% - 99.9%) to automatically sort components, with pass/fail results confirmed via visual and audio prompts. Data logging mode records the number of pass and fail measurements for effective quality control.5. Portable Design, Clear Display, and Long Battery Life: The LC1020E is designed for laboratory, production line, and field use. Its compact design a powerful 3.7V, 3000mAh rechargeable lithium battery. The large 2.8-inch TFT color screen clearly displays all primary and secondary parameters (L/C/R/Z, X/D/Q/θ/ESR), making it easy to read measurement values anytime, anywhere.Specifications:Part Name: LC1020E Digital Bridge Handheld TesterMaterial: ABSModel: LC1020EColor: Blacksize: As shown1. Display: 2.8-inch TFT LCD2. Basic Accuracy: 0.3%3. Number of Display Digits: Primary Parameter: 4.5 digits; Secondary Parameter: 4.5 digits4. Test Frequency: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz5. Test Level: 0.1V, 0.3V, 0.6V6. Internal Bias: 0.0V, 0.5V7. Measurement Parameters: Primary Parameters: AUTO/R/C/L/Z; Secondary Parameters: X/D/Q/θ/ESR8. Measurement Range: L: 0-100H, C: 0-100mF, R: 0-10MΩ9. Measurement Speed: Fast (4 times/second), Medium (2 times/second), Slow (1 time/second)10. Calibration Function: Open-circuit calibration, short-circuit calibration11. Comparison Function: Calculates the relative error between the measured component value and the nominal value, displays it as a percentage, and provides a filtered result. The nominal value and tolerance can be set, with an adjustable range of 0.1% to 99.9%.12. Recording Function: Checks whether the measured component data meets the set nominal value and tolerance, and records the number of successful and failed measurements. 13. Test terminal configuration: three-terminal, five-terminal14. Output impedance: 100Ω15. Communication interface: Type C (virtual serial port)16. Other functions: Language setting, screen brightness, sound settings, auto power off, calibration settings, system information.Package Contents:1. LC1020E LCR meter *12. Data cable *13. Short circuit board *14. Kelvin test clip *15. Test (black *1 + red *1)6. User manual *1 Manufacturer Contact Information no

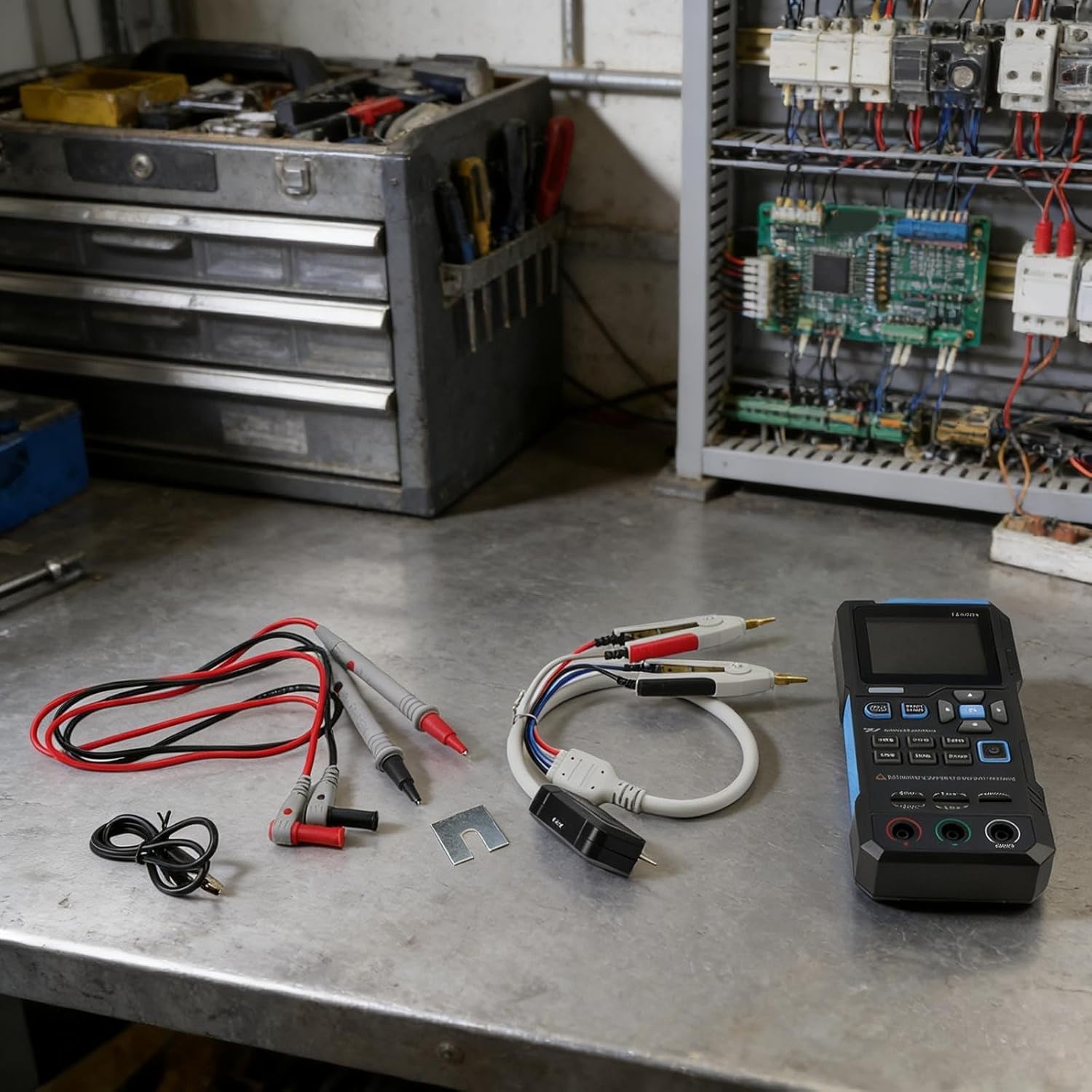

• [-IN- MEASUREMENT SET] Receive the LC1020E Digital Bridge handheld tester, data cable, short board, Kelvin test clip, of test leads and user guide so technicians and hobbyists can evaluate resistance, capacitance and inductance immediately.
• [ACCURATE LCR/ESR ] Designed precise component analysis with 3% basic accuracy and display to 4.5 digits primary and secondary readings, enabling confident ESR, impedance and reactive component characterization.
• [PROFESSIONAL TERMINAL ] Use the three-terminal socket quick checks or the five-terminal slot with external fixtures true four-terminal Kelvin measurements to minimize measurement error low-value components.
• [ MEASUREMENTS & ADJUSTABLE SETTINGS] Choose measurement (4/2/1 times per second), perform open/short calibration, adjust test level and frequency, and connect via data export and integration with test workflows.
