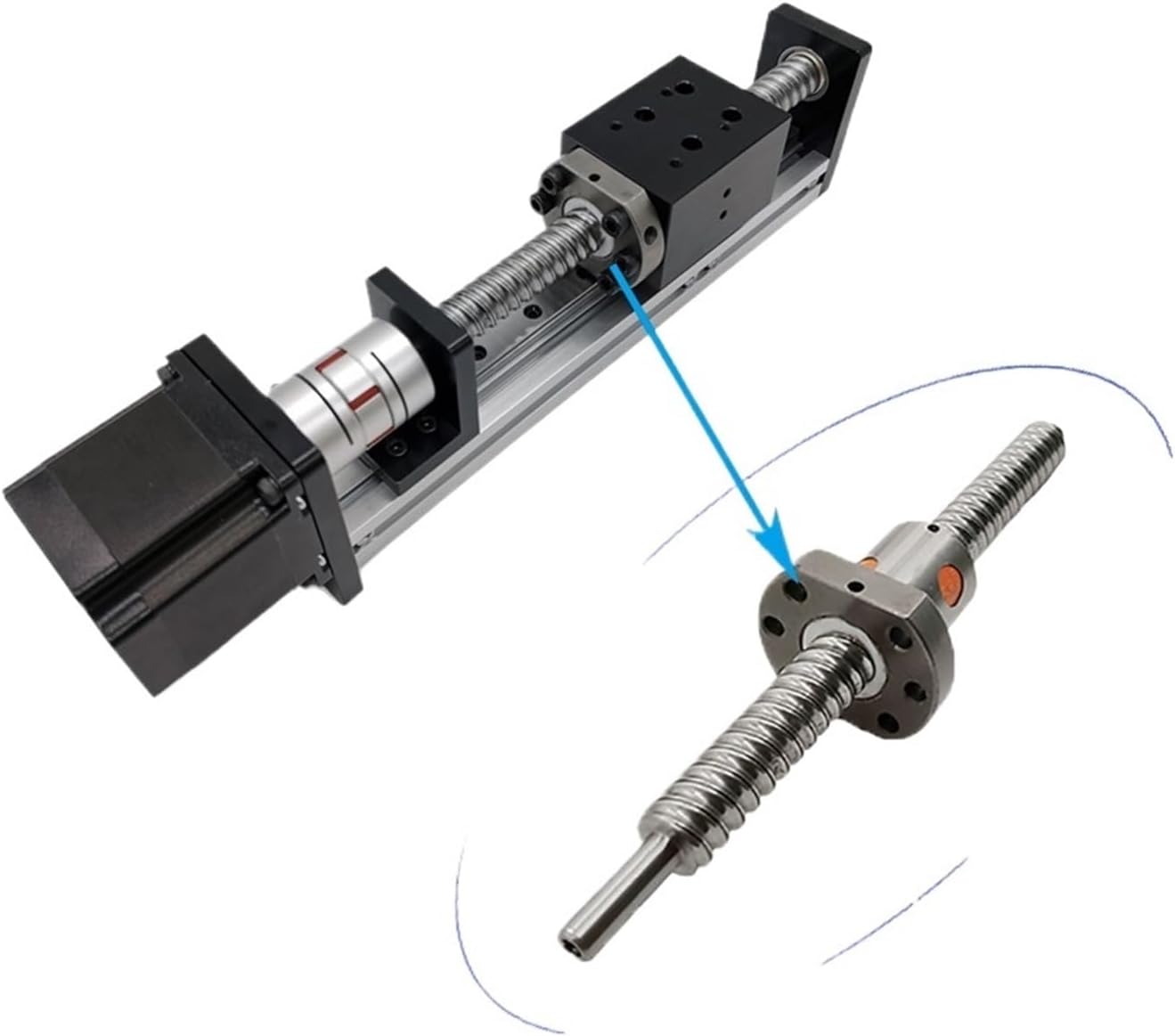

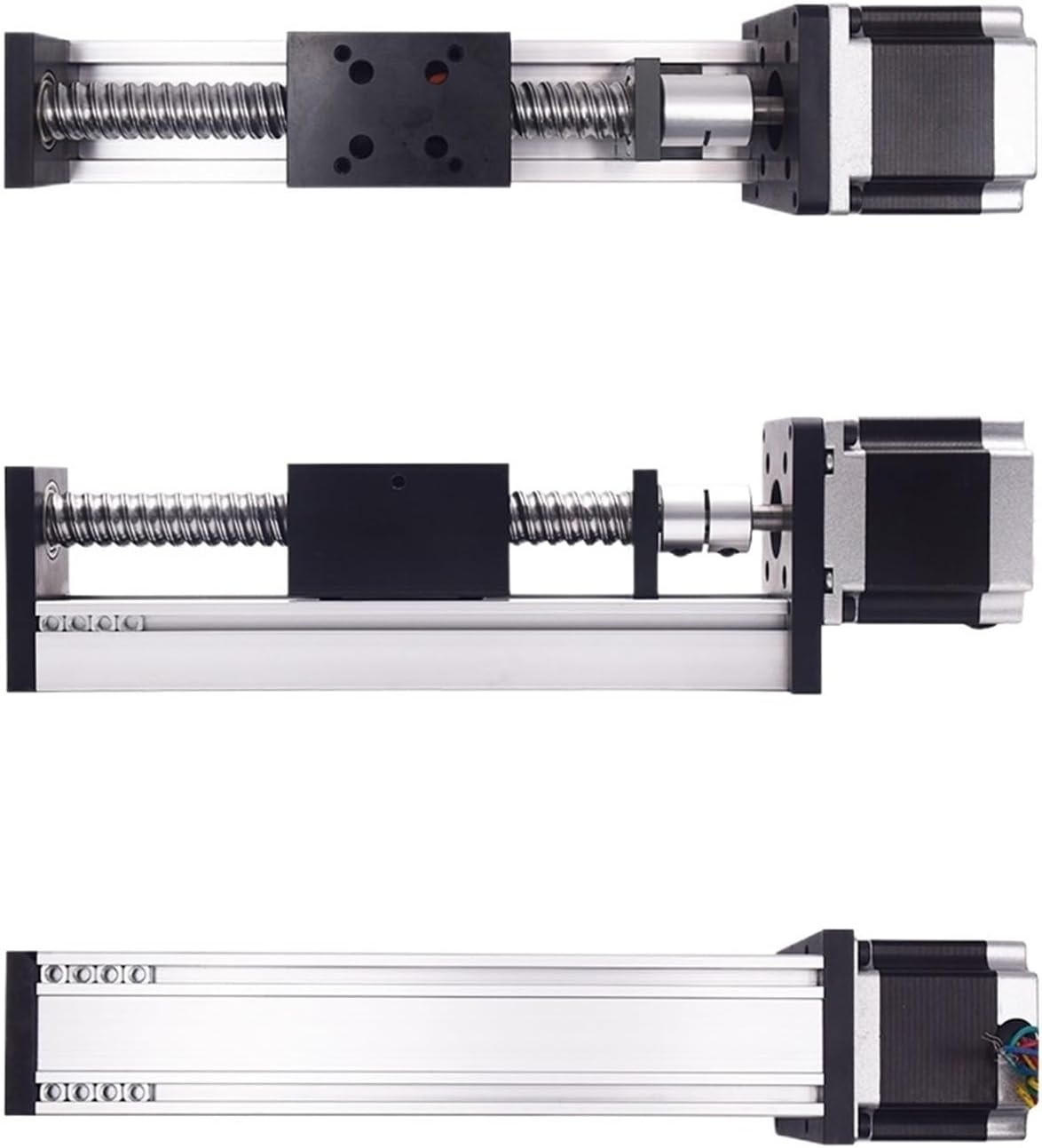

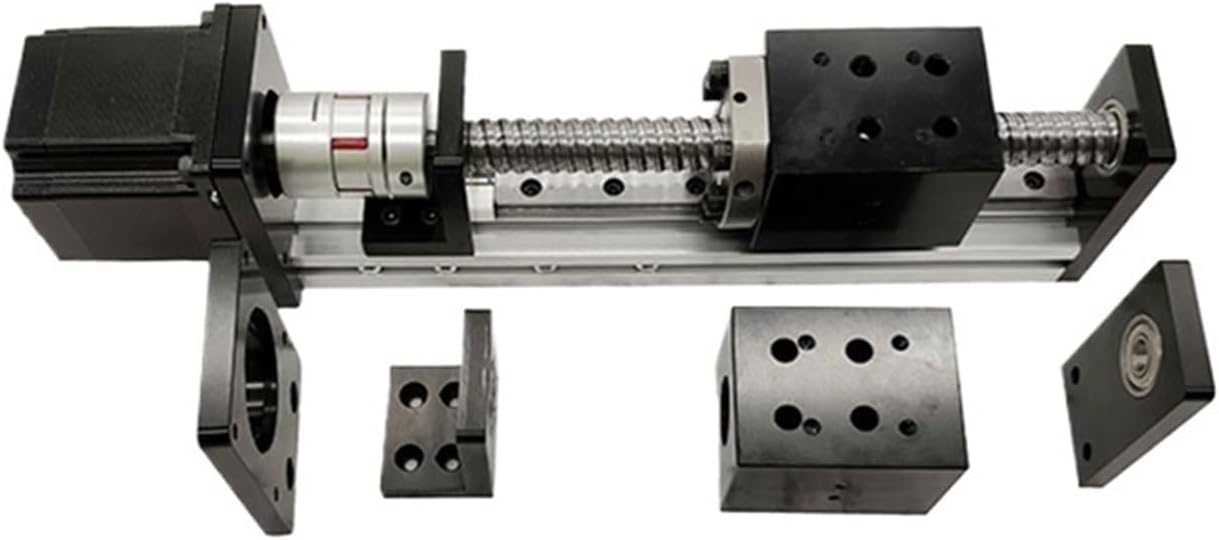

Linear Guide Rail Sliding Table 23 Stepper Motor SFU1204/1605/1610 Ballscrew 60 * 42/60 * 48 Mobile Panle 100-500mm Stroke
4.2 (43 items)
Limited Time Sale$224.27 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210321853 | Release Date | 2026/04/02 | List Price | $149.51 | Model Number | 210321853 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Rails1 X Sliding Table1X NEMA23 1.2Nm Stepper Motor1X Free Coupling(8mm-8mm)Tips: The slide table and stepper motor need to be used with the driver.If necessary, please click the image below to purchase Sliding Table Product Specifications :1.Slide Material: aluminum 2.Stroke:100-500MM (Please choose the right size as required)3.Motor:NEMA23 Stepper Motor 4.Horizontal load: 60KG (Max)5.Vertical load: 30KG(Max) 6.Mobile panel size: 60mm X 42mm/60mmx48mm7.Repeat positioning accuracy: 0.02mm-0.03mm8.Maximum speed: 500mm/s9.Guide Type:MGN12R(12MM Linear guide)10.Slider:MGN12H11.Screw Precision:C712.Effective Stroke: Stroke + 10 mm13.Screw Model:SFU1204/SFU1605/SFU1610(Tips:SFU1605 means:Screw Diameter 16mm, pitch 5mm )Stepper Motor Product Specifications :1.Shaft length: 22mm D Single flat2.Shaft diameter: 8mm 3.Holding : 120Ncm/1.2N.m4.Type: hybrid5.Phase: 26.Current : 3A7.Certification: CCC, ISO8.Step angle: 1.8degreeDXG6042 DrawingDXG6048 Drawing==========Hign-concerned Chemical : NoneModel Number : DXG6042/6048-1204/1605/1610Guide Width or Diameter : 12mm/16mmCertification : Package list : 1 x Sliding Table(without Motor and Connector)Ballscrew type : SFU1204,SFU1605,SFU1610Ballscrew accuracy : C7 level
- Rails
- Linear Guide Rail Sliding Table 23 Stepper Motor SFU1204/1605/1610 Ballscrew 60*42/60*48 Mobile Panle 100- 500mm Stroke
| Model | LZRAWKGTE |
|---|---|
| Brand Name | LZRAWKGTE |
| Model Name | LZRAWKGTE |
| Manufacturer | LZRAWKGTE |
