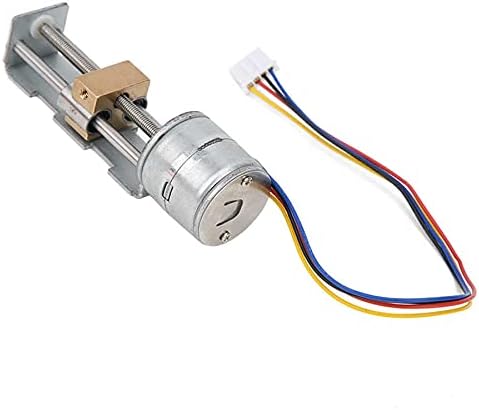

Linear Slider Motor Mini Linear Lead Screw Nut Slider 2-Phase 4-Wire for DIY Small Sliders 20mm

Stepper Motor Mini Linear Lead Screw Nut Slider 2‑Phase 4‑Wire for DIY Small Sliders 20mm Features: 1. Can be used in DIY small sliders, projects, measuring equipment, printers. 2. This product is miniature 2‑phase 4‑wire stepper motor with planetary gearbox reducer. 3. Planetary gearbox reducer adopts all metal structure, strong and durable, has a long service life. 4. Drive accurate diagonal lines to move the metal slider up and down, and the bracket is basically made of metal structure. 5. The driving voltage of the motor is 5‑9V/200‑600mA, the higher the voltage, the greater the force and the greater the heat. Specifications: Item Type: Stepper Motor Motor Type: 2-phase 4-wire systemDrive Voltage: 5-9V/200-600mA (the higher the voltage, the greater the force, the greater the heat)Screw Length: Approx. 45mm / 1.8inSlider Stroke: Approx. 34mm / 1.3inMotor Diameter: Approx. 20mm / 0.8inScrew Diameter: Approx. 3mm / 0.1inScrew Pitch: Approx. 0.5mm / 0.02in (moving 0.025mm in one step, subdivision drive can be used if smaller)Step Angle: 18°Phase Resistance: 21ΩBlue A+Black B+Red B-Yellow A- Package List: 1 x Stepper Motor Note: Note that it is a stepper motor, it will not turn when directly connected to the power, and a stepper motor driver board and control board. 4. The images shown are not the actual item and are for your reference only.5. SERVICE is provided by the carrier and excludes weekends and holidays. s may vary, particularly during the holiday season.7. Due to stock status and time differences, we will choose to your item from our first available warehouse for . 8. We seller are not in charge of import duty, buyer is responsible for that. Any dispute caused by this is unreasonable. 9. BR buyer please provide the cpf or cnpj, it will be better for y

• 1. Can be used in DIY small sliders, projects, measuring equipment, printers.
• 2. This product is miniature 2‑phase 4‑wire stepper motor with planetary gearbox reducer.
• 3. Planetary gearbox reducer adopts all metal structure, strong and durable, has a long service life.
• 4. Drive accurate diagonal lines to move the metal slider up and down, and the bracket is basically made of metal structure.
• 5. The driving voltage of the motor is 5‑9V/200‑600mA, the higher the voltage, the greater the force and the greater the heat.
