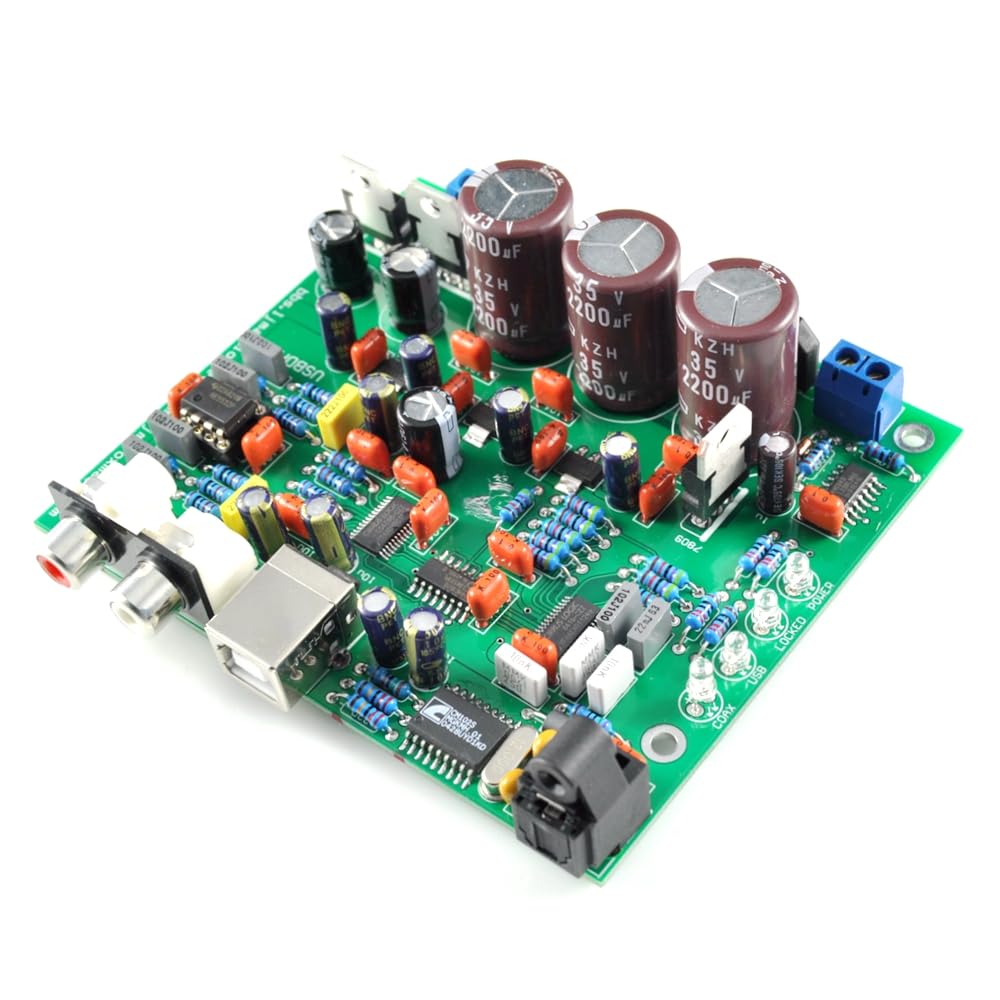

LJM CS4398 DAC with USB Fiber Decoder 24/19K Chip Has Been Welded

Digital receiver uses 8416 digital receiver chip to support the highest 192KHZ output. The excellent performance of CS4398 is not comparable to that of ordinary chips. In terms of parameters, all parameters of CS4398 exceed DAC of the same price of WM8740. Built-in USB receiver and 24bit independent DAC decoding, DAC function is equivalent to a high-end external sound card when using USB to connect to the computer. Automatic selection of USB input and optical fiber input. Parameters: PCB size: 86*100MM. Input port. Digital input: TosLink optical fiber, USB each group. Support sampling frequency: 32K-192K/24BIT (where USB input only supports 16bit/44.1K and 48K). Power supply LED. Signal Lock indicator (locked) LED. The COAXTosLink input channel is selected to indicate. The USB USB output channel is selected to indicate. Core chip. Digital reception: CS8416IC up to support 192K/24BIT SPI&I2S signal output. USB supports 16BIT/48K signals. Digital reception: CM102 uses SPDIF signal output locally. DCMA converter (decoder chip): CS4398 120dB dynamic range supports 24bit/192K sampling

• PCB size: 86*100MM.
• Digital reception: CS8416IC up to support 192K/24BIT SPI&I2S signal output. USB supports 16BIT/48K signals.
• Digital reception: CM102 uses SPDIF signal output locally.
