Manual Linear Positioning Stage with Z-axis Slide, Cross Roller Bearing, Adjustable Height for Precision Applications 40x40mm
4.2 (42 items)
Limited Time Sale$35.06 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211770347 | Release Date | 2026/04/04 | List Price | $23.38 | Model Number | 211770347 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

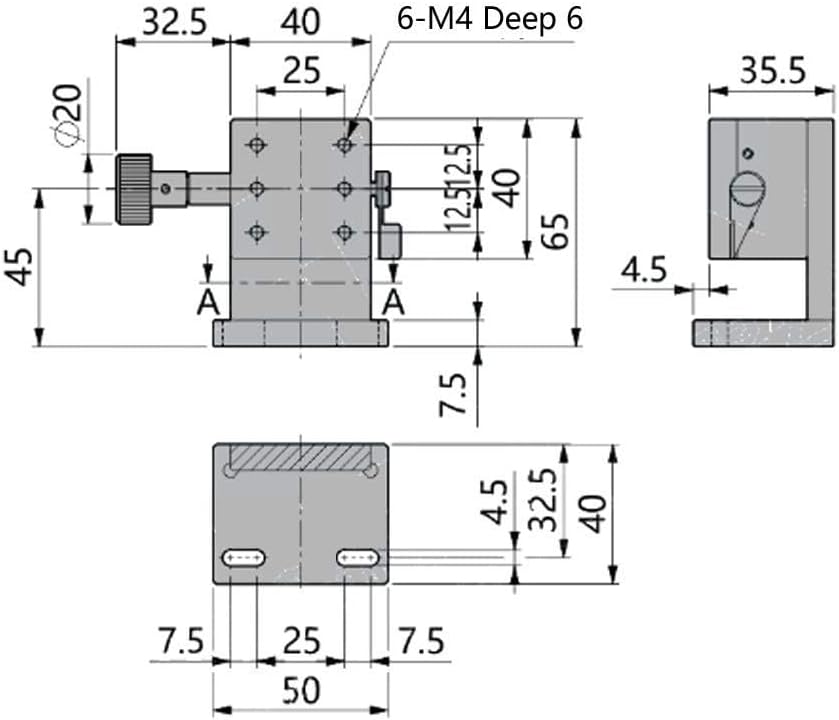

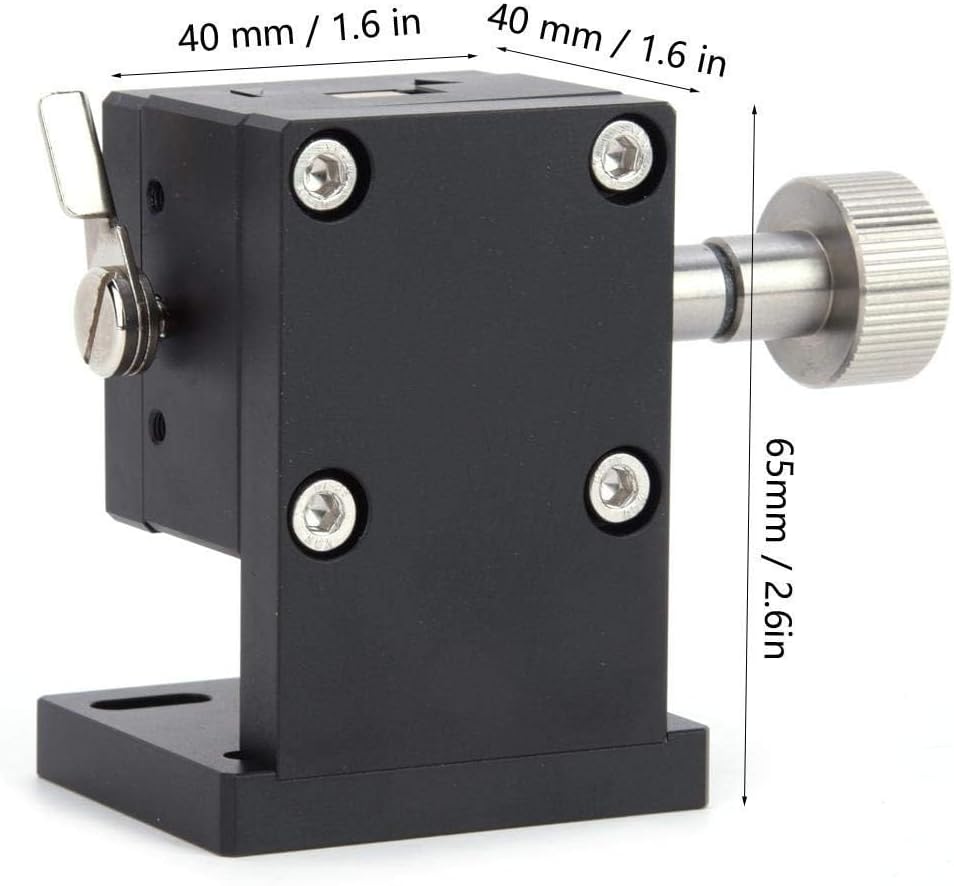

Specification: Item Type: Manual Trimming Model: SPWZ40-40 Table Size: Approx. 40 x 40mm / 1.6 x 1.6in Overall Height: Approx. 65mm / 2.6in Moving Direction: Z, 1 direction(vertical direction) Body Material: Aluminum alloy (black anodized) Movement: Rotate the gear and rotate the handle to advance Sliding Track: Gear Rail Type: Dovetail Number Of Countertop Threaded Holes: 10 Threaded Hole Diameter: Approx. 4mm / 0.16in Threaded Hole Depth: Approx. 6mm / 0.24in Load Resistance: 29.4N(3Kgf) Up and Down Stroke: ±10mm Minimum Scale: 0.01mm Parallelism: 20μm Parallelism of Movement: 0.01mm/13mm Scope of Application: Optical instruments, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, conveyors, processing machines, printing machines and other Package List: 1 x Manual Trimming
- 【Mobile stability】 The gear rotation of the SPWZ40-40 high-precision is controlled by the handle, and the high-precision movement is stable.
| Finish | Finish |
|---|---|
| Material | Material |
| Item Weight | 9.5 ounces |
| Part Number | Walfrontew6mvgfzrh |
| Manufacturer | Walfront |
| Power Source | PowerSource |
| Spout Height | 1 Centimeters |
| Batteries Required | No |
| Measurement System | Metric |
| Included Components | inc |
| Installation Method | InstallationMethod |
| Item Package Quantity | 1 |
