Marine Actuator 101 Standard Replacement for Len-co 15054-001, 12V ON-OFF Toggle Switch, Metal, Panel Mount, Quick Connect Terminal
4.2 (100 items)
Limited Time Sale$66.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215609580 | Release Date | 2026/04/12 | List Price | $44.00 | Model Number | 215609580 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

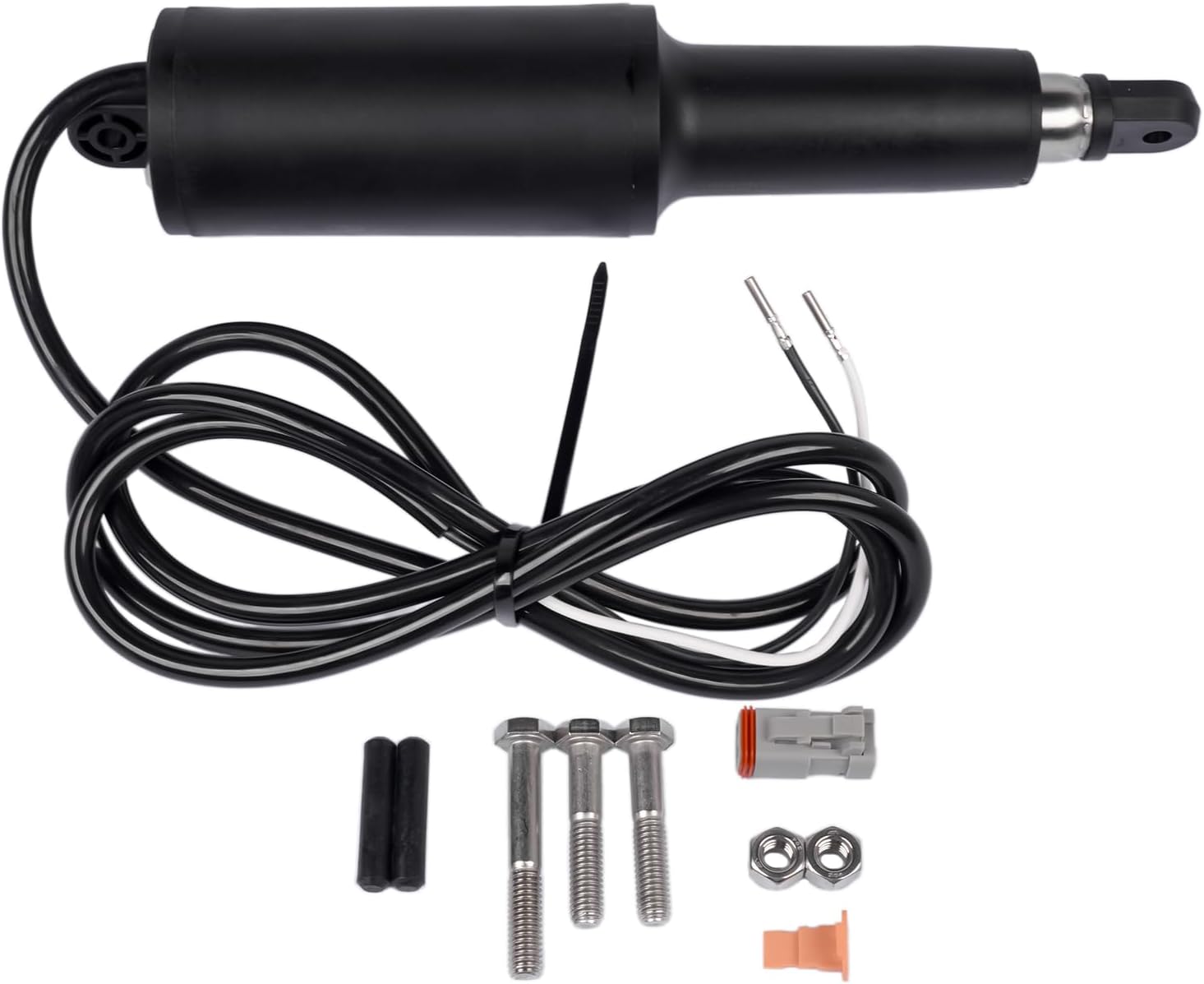

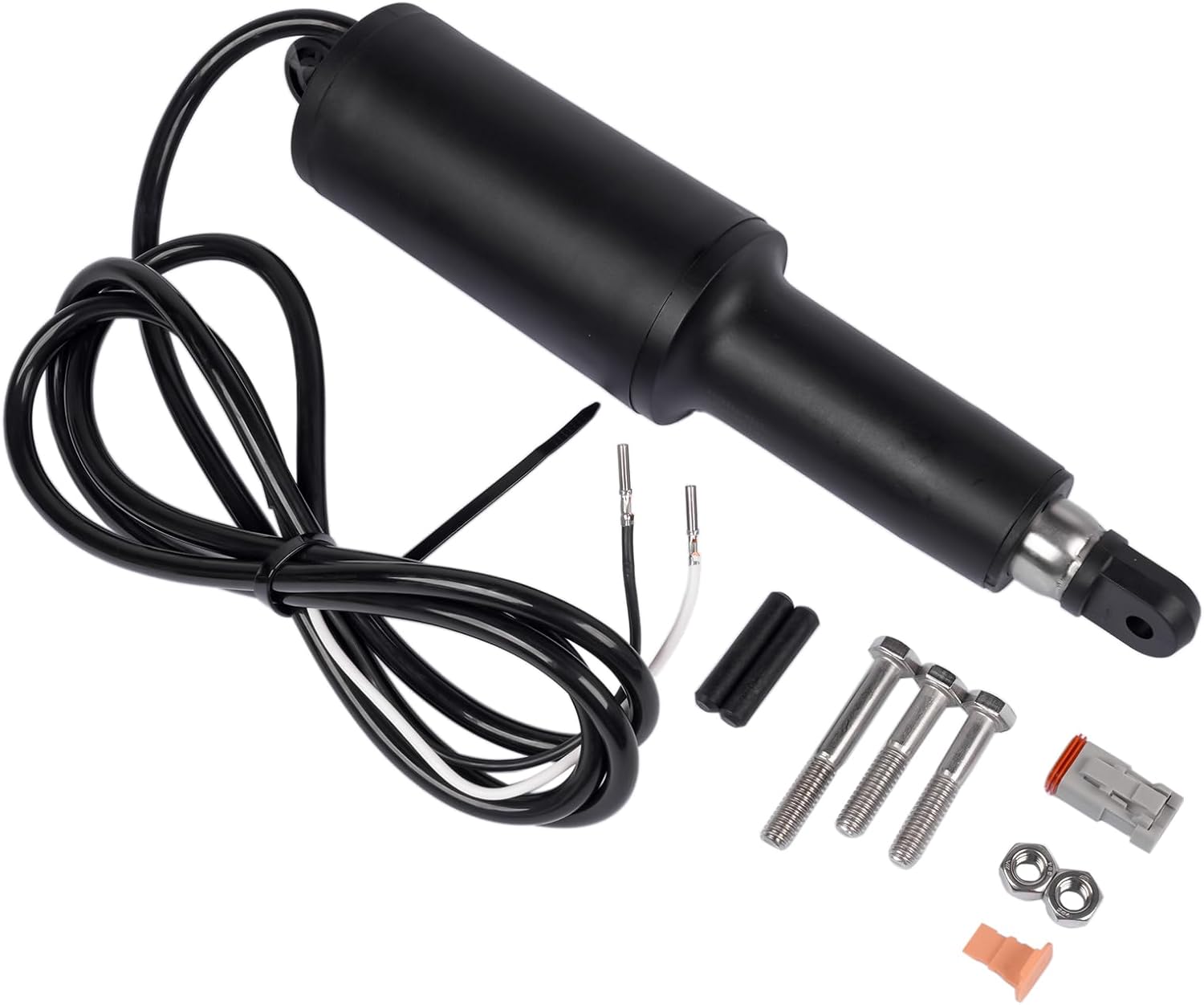

1. OEM Part Number:15054-001,150540012. Fitment:Product Description:Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofing.Stainless steel ram won't flex, even under extreme loads.Double O-ring for maximum protection.Ballscrew rotates freely on 12 ball bearings at both ends of its stroke so there is no need for complicated limit switches and clutches.Self-locking ballscrew locks into position and will not drift.Precision molded, powdered metal, high alloy gears provide high accuracy, high wear resistance, and high strength for long life.Tough, high-torque motor easily transfers 750 lbs Available in 12- or 24-volt motor.Kit includes 12-volt motor.High-impact, ultraviolet resistant nylon 66, 50% glass fiber reinforced thermoplastic housing.Specification:Item Type: Marine ActuatorMaterial: MetalVoltage: 12VCharacteristic:2 1/4 inch strokeTotal length 12 1/8 inches when fully retracted11 1/2 inches, pin to pin length6ft cable5/16 in top and bottom cap hole sizesHigh torsion motor pushes 750 lbs with easeApplicable: Marine, Replacement for Len-co
- Customer can check the compatibility of this item by its Part OE Number: 15054-001,15054001
- Product Description: Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofing. Stainless steel ram won't flex, even under extreme loads. Double O-ring for maximum protection.
- Product Description: Ballscrew rotates freely on 12 ball bearings at both ends of its stroke so there is no need for complicated limit switches and clutches. Self-locking ballscrew locks into position and will not drift. Precision molded, powdered metal, high alloy gears provide high accuracy, high wear resistance, and high strength for long life.
- Product Description: Tough, high-torque motor easily transfers 750 lbs Available in 12- or 24-volt motor. Kit includes 12-volt motor. High-impact, ultraviolet resistant nylon 66, 50% glass fiber reinforced thermoplastic housing.
- Specification: Item Type: Marine Actuator. Material: Metal. Voltage: 12V. Characteristic: 2 1/4 inch stroke Total length 12 1/8 inches when fully retracted 11 1/2 inches, pin to pin length 6ft cable 5/16 in top and bottom cap hole sizes High torsion motor pushes 750 lbs with ease Applicable: Marine, Replacement for Len-co.
| Voltage | 12 Volts |
|---|---|
| Terminal | Push On |
| Brand Name | NEWZQ |
| Unit Count | 1.0 Count |
| Part Number | 15054-001 |
| Manufacturer | NEWZQ |
| Material Type | Metal, Plastic |
| Mounting Type | Panel Mount |
| Connector Type | Quick Connect |
| Operation Mode | ON-OFF |
| Contact Material | Brass Or Copper Or Bronze |
| Operating Voltage | 12 Volts (DC) |
| Included Components | no |
