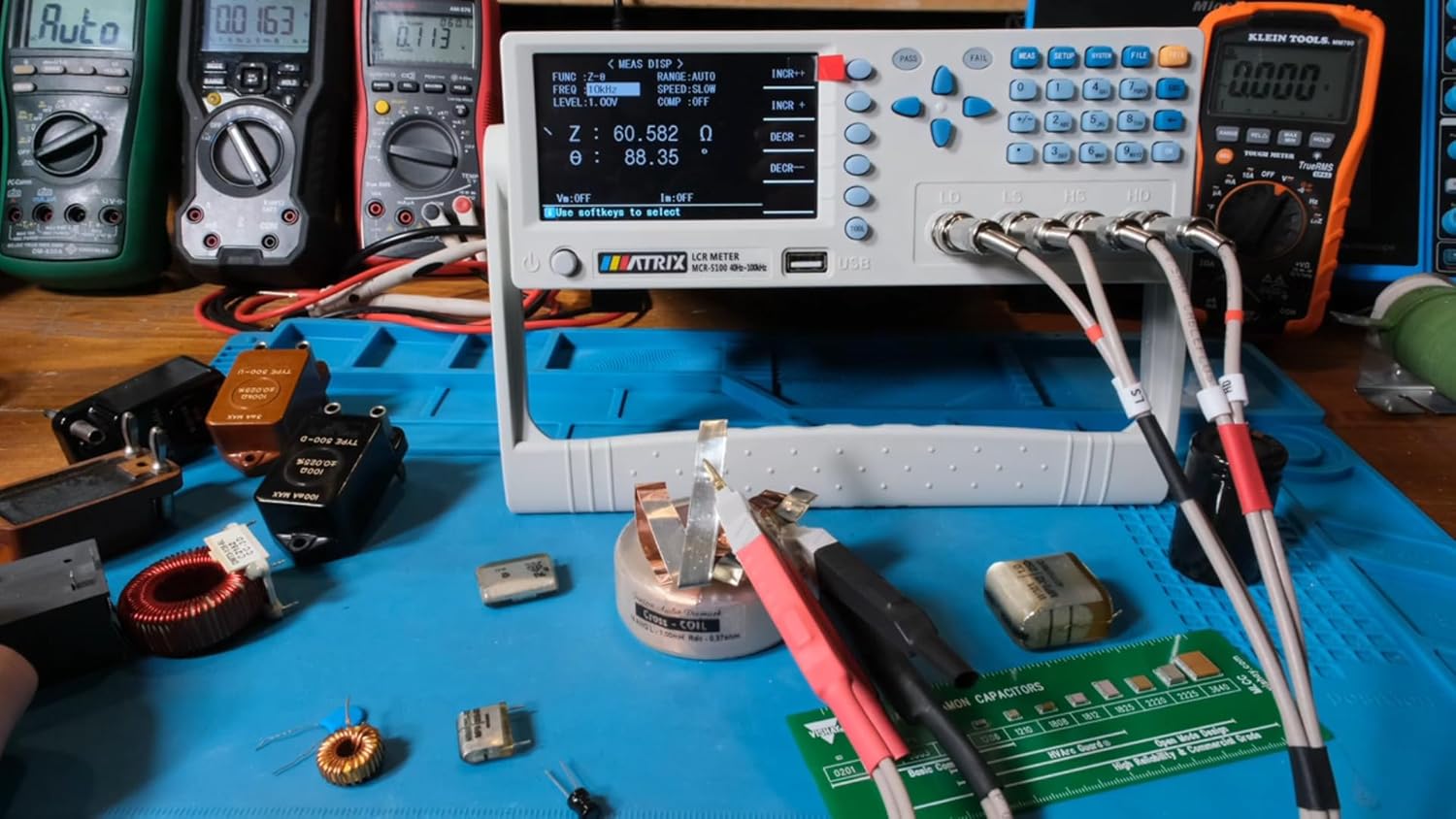

MATRIX MCR5200 Benchtop LCR Meter, 40Hz-200kHz 0.1%, Digital LCR Bridge Measures Inductance/Capacitance/Resistance, USB/RS232C, Calib-Clear, Data Save
4.0 (23 items)
Limited Time Sale$403.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211737704 | Release Date | 2026/04/04 | List Price | $269.20 | Model Number | 211737704 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Specs: Basic accuracy 0.1%. Measurement frequency from 40Hz to 200kHz, in total 41 frequency points. 4.3 inch TFT LCD displayer, 5 digit display. 30Ω/100Ω 2 optional signal source output resistance
- Measurement Range: L (0.01 μH - 99999 H). C (0.01 pF-9.9999 F). R, |Z|, X, ESR (0.1mΩ-99.999 MΩ). D (0.0001-9.9999). Q (0.0001-9999.9). θ(Deg) (-179.99°-179.99°). θ(Rad) (-3.1416-3.1416)
- Accurate and Speed: Inductance meter with 32-bit core processor, high-precision computing power. 3 measure speed 30 times/s, 10 times/s and 3 times/s. Delay time 0-6s, step is 1ms. Average time 1-255
- Data Saving: Digital LCR meter with RS232C, USB Host, Handler ports, support SCPI and GPIB. Software is provided to save the data to pc/usb stick. And the U disk copy screen function supports FAT16/32
- Calibration: Manual, hold and automatic range. The capacitance meter is equipped with open circuit and short circuit calibration and quick clear. Fewer measurement errors and improved stability
- Humanized Operation: Built-in comparator, 5 grade flexible qualified and defective alarming modes shutdown automatically save test conditions. Makes troubleshooting and repairs easier and faster
- Applications: Measures inductance, capacitance, resistance, impedance. Widely used in R&D, production, quality control, repair of electronic components, ensuring circuit performance & troubleshooting
- Package: 1 Benchtop LCR Meter, 1 Power Cord, 1 4-terminal Test Cord, 1 CD, 1 Test Report, 1 User Manual, 1 Fuse table
| Color | White |
|---|---|
| Model | MCR5200 |
| Brand Name | MATRIX |
| Style Name | 40Hz-200kHz |
| Unit Count | 1.0 Count |
| Item Weight | 7.7 Pounds |
| Manufacturer | MATRIX TECHNOLOGY INC. |
| Power Source | Corded Electric |
| Item Dimensions | 9.45 x 13.08 x 3.94 inches |
| Measurement Type | LCR Meter |
| Specification Met | CE, ISO 9001, RoHS |
| Included Components | LCR Meter, 4-terminal test leads, Power Cord, Test Report, Fuse table |
| Warranty Description | 3 Year Manufacturer |
| Maximum Operating Voltage | 220 Volts (AC) |
| Minimum Operating Voltage | 110 Volts (AC) |
