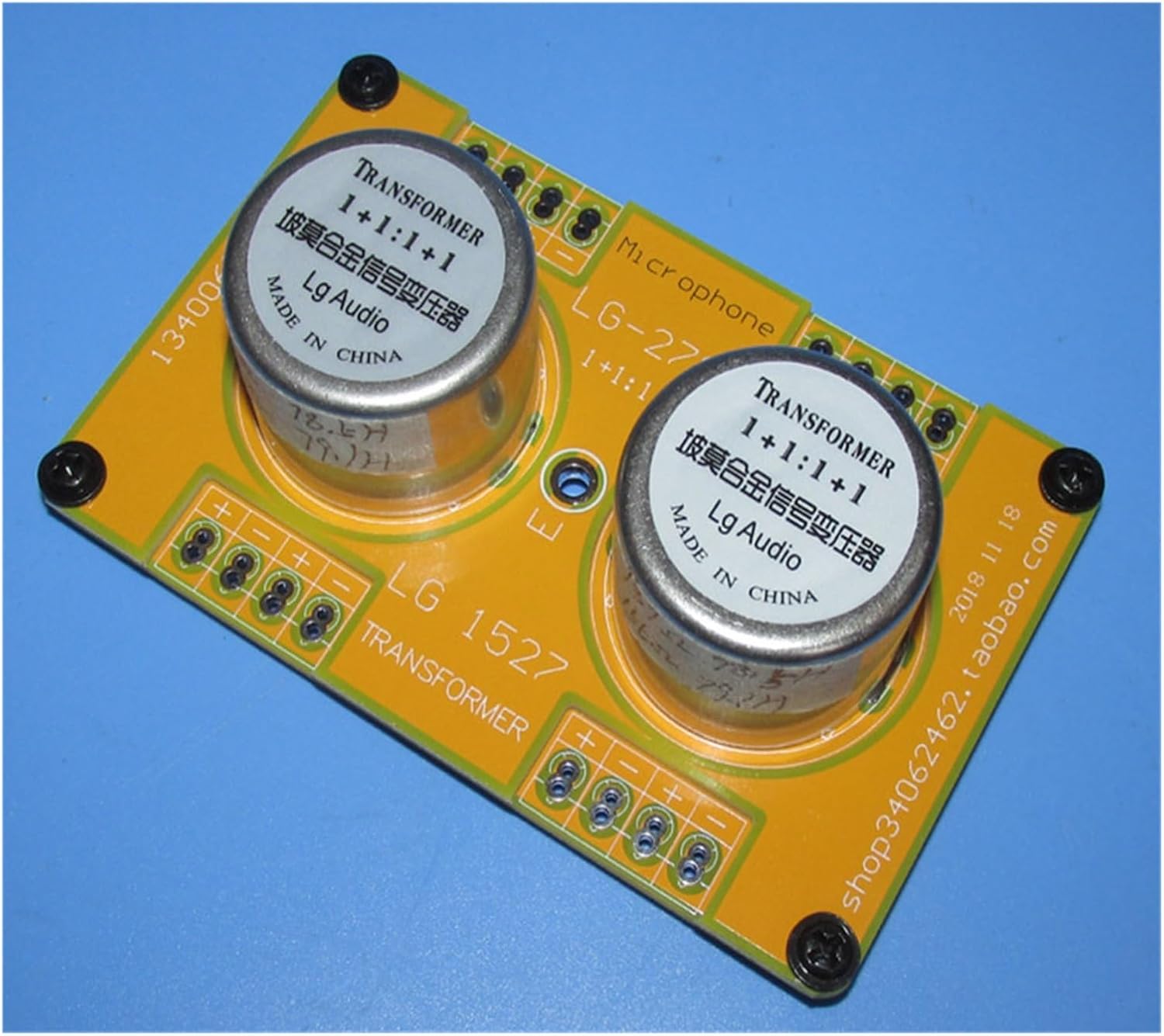

MeLphi LL1527 Replica Audio Transformer 1+1:1+1 Microphone Input Transformer (Color : Single Shield)
4.7 (27 items)
Limited Time Sale$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211048571 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211048571 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Audio TransformersLL 1527 parameters:Turns ratio: 1 + 1 : 1 + 1Dimensions (length x width x height above PCB, unit: mm)38×24×17weight:48 gramsrecommend. PCB hole diameter:1.5 mmStatic resistance of each primary:43Static resistance of each secondary:56Distortion (primary series, source impedance 800Ω):+ 6 dBU 0.1% @ 50 Hz<; 1 % @ 50 HzSelf resonance point:> 200 kHzBest load for best square wave response(Part 2 of the series):3-4kFrequency response (source 800, load 4k serial connection):10 Hz--150 Hz +/-0.2 dBLosses across the transformer (at medium frequency, with the above terminations):0.4dBTransformer signal 1:1, 1:1 signal transformer has high coupling coefficient and wide frequency responseCan be single-ended to single-ended, single-ended to balanced, balanced to balanced, balanced to single-ended
- Audio Transformers
| Brand Name | MeLphi |
|---|---|
| Unit Count | 1.0 Count |
| Item Weight | 1 Grams |
| Part Number | MeLphi |
| Manufacturer | MeLphi |
