MERISHOPP®Waterproof Security Door Black ID Wiegand 26 RFID Card Reader|Home & Garden | Home Improvement | Building & Hardware

Product description This Rfid Reader System Is Composed With Quite Compact Circuit And High-Efficiency Controlling Program .It Is An Excellent Product, Reading Rfid Card Effectively.Door Access/ Id/Ic Card Data-Collecting Terminal In Work Attendance Check-On System.It Is Useful For Safety Door Systerm, Easy To Connect And Use. Description: Operating Mode: Weigand26 Reader Speed: 0.2 Seconds Clocking Interval: 0.5 Seconds Induction Distance: 5-15Cm Card Type: Id Card Frequency: 125Khz Operating Temperature: -25 „Ƒ -75 „Ƒ Operating Humidity: 10-90% Built-In Antenna: Yes Built-In Led Blue-Green: Two-Color Led Built-In Speaker: Buzzer Card Supported: Uem4100 Compatible Format Id Card (64Bits, Manchester Encoding) Operating Voltage: Dc 5-16V Operating Current: 70Ma Means Of Communication: Weigand26 Communication Distance: 100 Meters Wiegand Send Type: Real Time Equipment Color: Black Case Material: Pc And Spray - Internal Irrigation Black Resin (Effectively Waterproof) Dimension: 101Mm*43Mm*15Mm Different Color Line Symbol (1)Red: Vcc Power Anode (2)Black: Gnd Power Cathode (3)Green: Data0 Weigand Data Line (4)White : Data1 Weigand Data Line (5)Blue: Led Controlling Line, Effective In Low Voltage (6)Yellow: Buzzer Buzzer Control Line, Effective In Low Voltage Package Includes: 1X Card Reader Manufacturer Contact Information SUDHIRYADAV ENTERPRISE LLP, [email protected] (9355379488)

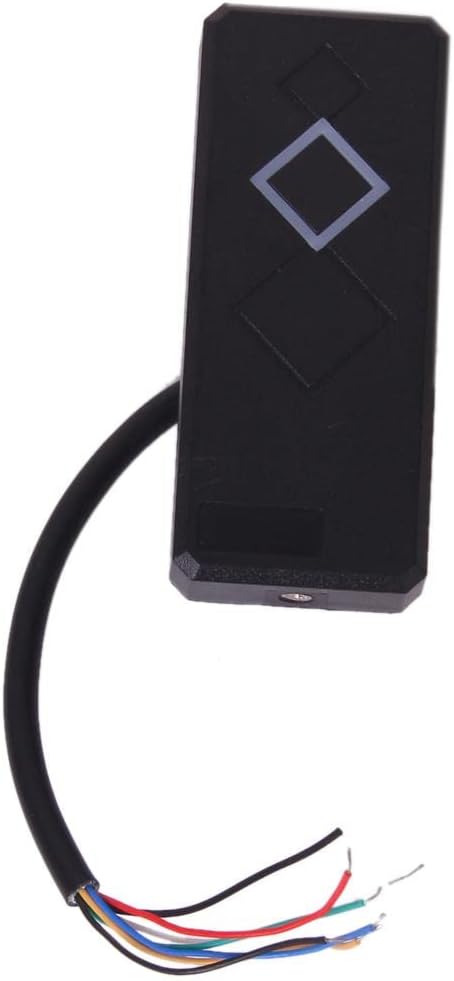

• This Rfid Reader System Is Composed With Quite Compact Circuit And High-Efficiency Controlling Program .It Is An Excellent Product, Reading Rfid Card Effectively.Door Access/ Id/Ic Card Data-Collecting Terminal In Work Attendance Check-On System.It Is Useful For Safety Door Systerm, Easy To Connect And Use.
• Operating Mode: Weigand26 Reader Speed: 0.2 Seconds Clocking Interval: 0.5 Seconds Induction Distance: 5-15Cm Card Type: Id Card Frequency: 125Khz Operating Temperature: -25 „Ƒ -75 „Ƒ Operating Humidity: 10-90% Built-In Antenna: Yes Built-In Led Blue-Green: Two-Color Led Built-In Speaker: Buzzer Card Supported: Uem4100 Compatible Format Id Card (64Bits, Manchester Encoding) Operating Voltage: Dc 5-16V Operating Current: 70Ma Means Of Communication: Weigand26 Communication Di

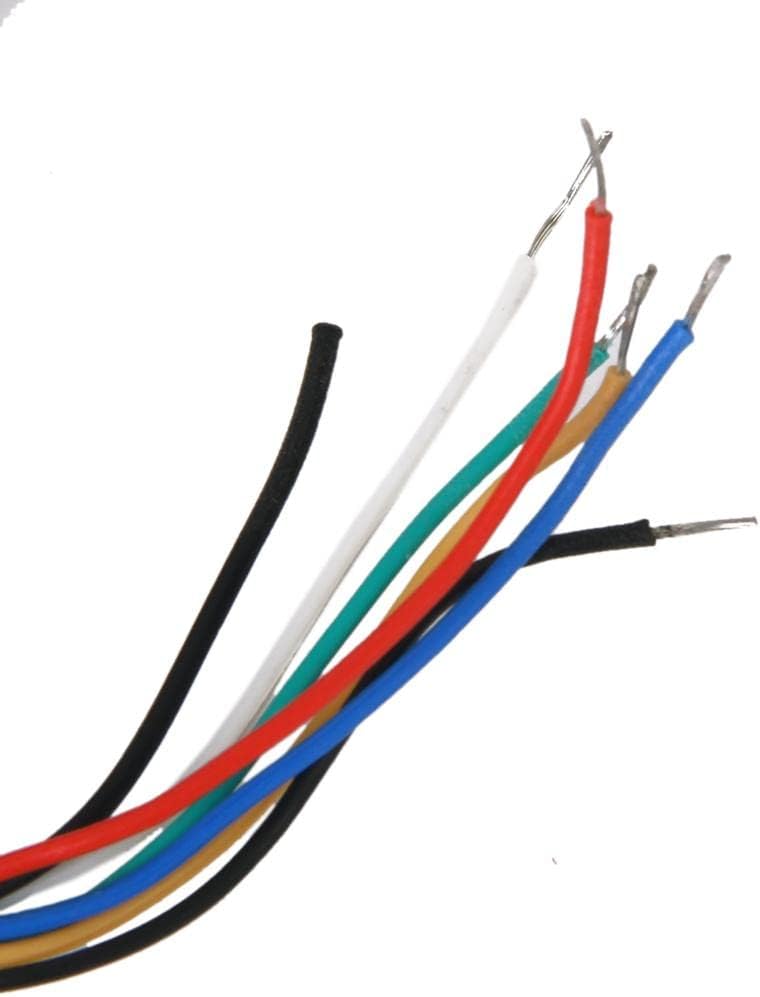

• (1)Red: VCC Power Anode (2)Black: GND Power Cathode (3)Green: DATA0 weigand Data Line (4)White : Data1 Weigand Data Line (5)Blue: LED Controlling Line, effective in Low Voltage (6)Yellow: Buzzer Buzzer Control Line, effective in low voltage Package Includes:
• This RFID Reader system is composed with quite compact circuit and high-efficiency controlling program .It is an excellent product, reading RFID card effectively.Door Access/ ID/IC card data-collecting terminal in work attendance check-on system.It is useful for safety door systerm, easy to connect and use.
