MGC120 Genset Controller AMF Auto Start Stop ATS Switching Control Panel Module Small Generador Electrico Gasolina Part

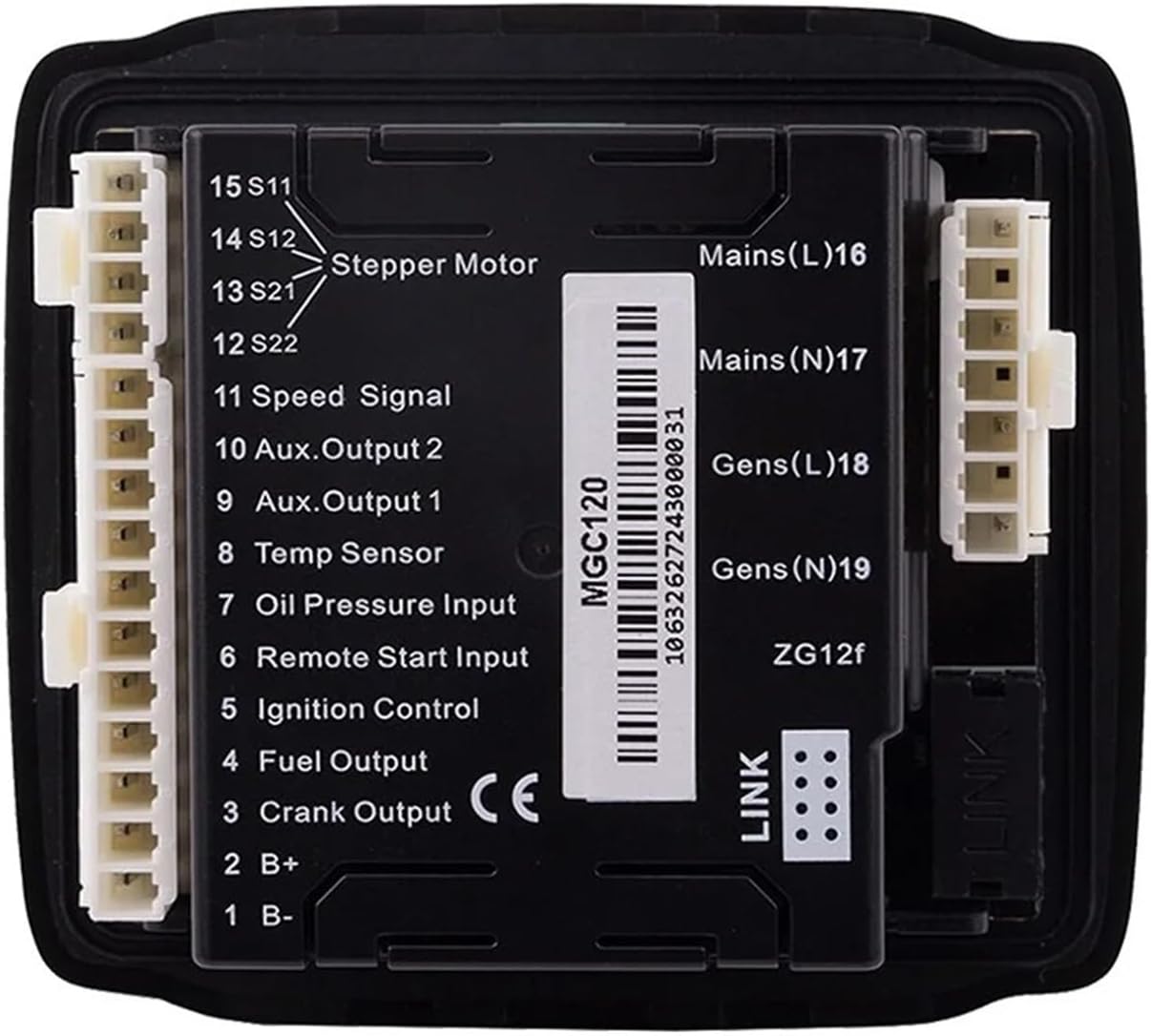

Electronic Engine ControlThe MGC120 petrol generator set controller is an AMF module that can be used in the automation and monitoring system of a single gasoline generator set. Through data measurement, the functions of automatic start/stop, alarm protection, ATS switching control of the generator set are realized. The controller adopts LED digital tube display and touches the button operation. Most of the parameters can be adjusted from the front panel of the controller. Through the LINK interface, all parameters can be adjusted from the PC. MGC120 gasoline generator set controller has the advantages of simple operation, reliable operation, compact structure and convenient installation. It can be widely used in the automation system of various gasoline generator sets.2. PERFORMANCE AND CHARACTERS--Able to collect single phase voltage of Mains and generator, which is suitable for 50Hz/60Hz AC system;--Switchable display parameters:Mains voltage (V)Generator voltage (V)Engine cylinder temperature ()Generator frequency (Hz)Battery voltage (V)Accumulated running time(H)--Equipped with Mains electricity monitoring function and AMF function;--Protection function for generator under/over volt, under/over frequency, low oil pressure, and start failure protection functions; when they occur, LED indicates alarm types, and controllerconducts shutdown protection;--Using stepper motor and programmable outputs to control air flap;--Speed signals derive from ignition coil primary (diode needs to be in series);--Able to choose from three crank disconnection conditions (generator frequency, speed, and speed + gen frequency);--Equipped with 2 digital inputs with defaults: remote start input and low oil pressure input;--Equipped with 3 stationary relay outputs (fuel output, start output and ignition control);--Equipped with 2 programmable transistor outputs, which can be set as common alarm output, ETS control, idle speed control, preheating control, GCB close output, MCB close output and air flap blocking output;--Equipped with LINK communication port ( SG72 adapter applied): it is able to realize controller parameter settings, remote monitoring control and firmware upgrade functions.--Digital tube and LED display with button-press operation;--Silicone panel and buttons with higher ability to adapt to extremely high/low temperature;--Screen protection adopts hard screen acrylic material;--Modular structure design, anti-flaming ABS plastic housing, embedded installation way; compact structure and easy installation;==========Model Number : MGC120
