Micsig DP10013 High Voltage Differential Probe 1300V 100MHz 3.5ns Rise Time 50X/500X Attenuation
4.3 (116 items)
Limited Time Sale$179.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210909150 | Release Date | 2026/04/04 | List Price | $119.60 | Model Number | 210909150 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Floating measurements Typical applications: switching power supply design, motor control, voltage converters... Bandwidth : 100MHz Rise Time : 3.5ns Attenuation : 50X / 500X Gain accurecy : ±2% Maximum Differential Test Voltage (DC+AC PK-PK):130V（50X）- 1300V（500X） Maximum input common mode voltage (DC+AC PK-PK) : 130V（50X）- 1300V（500X） Input referred noise : ≤40mVrms（50X）- ≤230 mVrms（500X) Common Mode Rejection Ratio : ＞80dB（DC) - ＞60dB (100KHz）- ＞50dB（1MHz） Input Impedance : 10MΩ/1pF (differential) 5MΩ/2pF (single-ended to ground） Output Voltage : ≤3V Overrange Alarm : Button light flashes Power Supply : DC 5V，USB Supply Power : 0.85W Dimension : 14.5cm*6cm*2.7cm Garranty 1 year
- Lightweight and portable, easy to carry.
- Designed for the measurement of high voltage differential signal, to meet the demand for floating measurement.

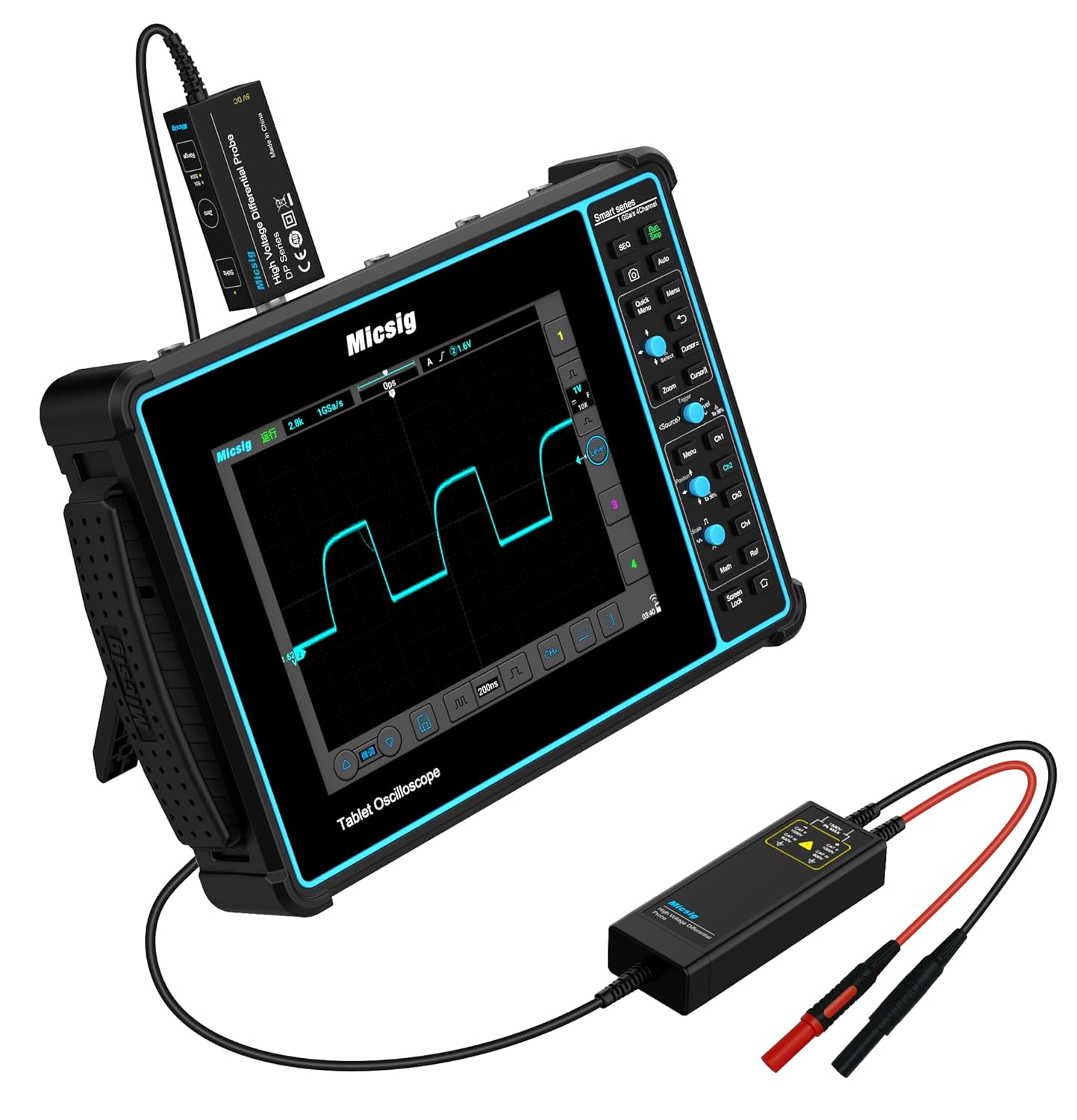

- Power supply USB DC 5V output, more portable while Oscilloscope has USB interface.
- Simple design, it is easy and safe to use.
- Maximum differential test voltage (DC+ACPK-PK): 130V (50X), 1300V (500X)
| UPC | 193451193862 193287345749 193710435788 193707944897 193744508038 193878325679 193287985259 764560086484 721141709972 635946105160 193707580606 193620292068 193613457429 |
|---|---|
| Color | Black |
| Model | DP10013 |
| Brand Name | Micsig |
| Style Name | DP10013 |
| Unit Count | 1.00 Count |
| Manufacturer | Micsig |
| Power Source | Usb DC 5v |
| Item Dimensions | 5.71 x 2.36 x 1.06 inches |
| Measurement Type | Voltmeter |
| Specification Met | Ul 61010-1, Iec 61010-2-030, Ce, Rohs |
| Upper Temperature Rating | 40 Degrees Celsius |
| Maximum Operating Voltage | 1300 Volts |
| Minimum Operating Voltage | 130 Volts |
