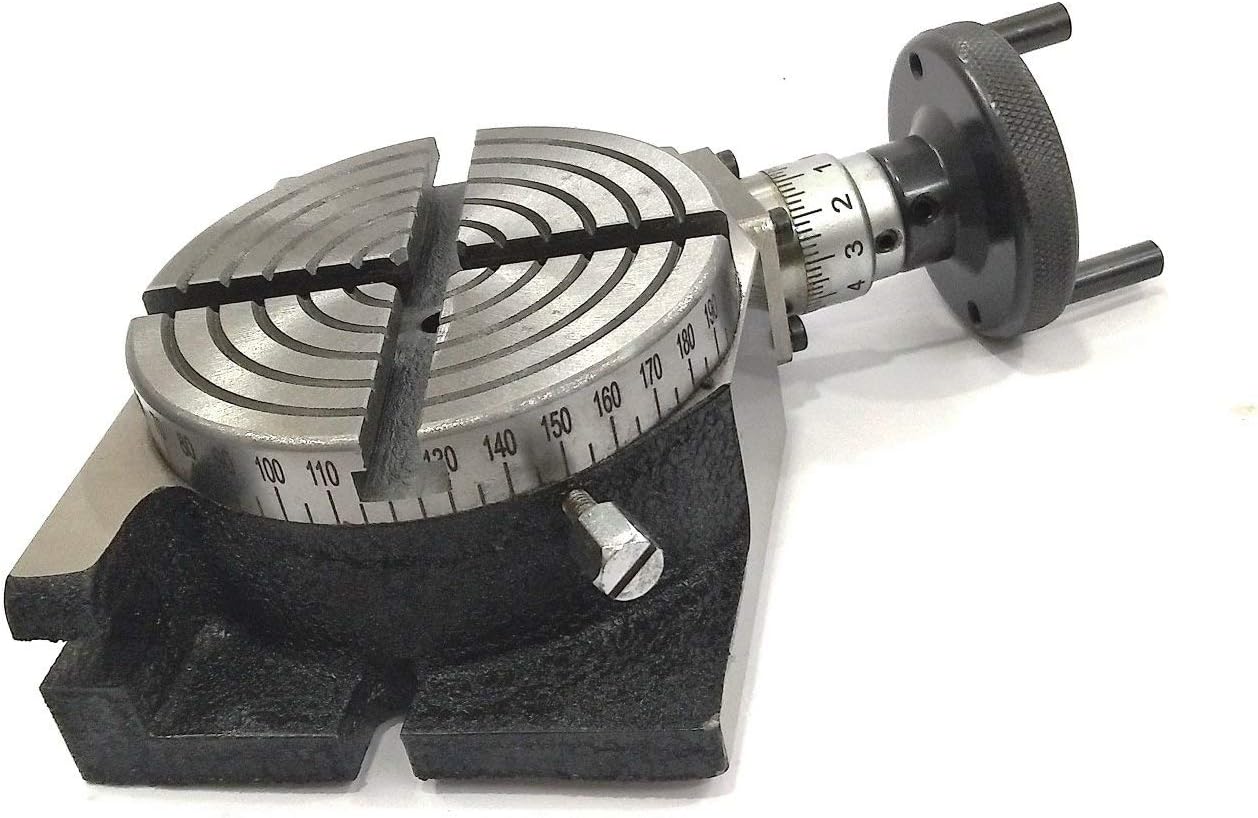

MILLING INDEXING 4"/100 ROTARY TABLE QUALITY PRECISION HORIZONTAL VERTICAL WITH SUITABLE M6 CLAMP KIT & SMALL CHUCK (WITH 70 MM 4 JAW INDEPENDENT CHUCK)
4.5 (93 items)
Limited Time Sale$68.03 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210134813 | Release Date | 2026/04/02 | List Price | $45.35 | Model Number | 210134813 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Tool Set of 4" Regular Rotary Table with a 70 mm 4 Jaws Independent Chuck with Back Plate & fixingsT nut Bolts & M6 clamp kit Chuck Body is Grain SG Caste Iron & Jaws are of Tool Steel. Jaws are Hardened & Ground. A Tool Steel Back Plate is supplied with Fixing T nuts to Mount the Chuck on It. Back Plate is Drill in a manner that it will fit both 3 as well as 4 slots Table. The Back side of the Plate has a locating Spigot to center the Mounting on to the Table. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. It can be mounted both in Horizontal & vertical position. Hand wheel is graduated in divisions of 10 min & can be set to zero
- Tool Set of 4" Regular Rotary Table with a 70 mm 4 Jaws Independent Chuck with Back Plate & fixingsT nut Bolts & M6 clamp kit
- Chuck Body is High Grain SG Caste Iron & Jaws are of Tool Steel. Jaws are Hardened & Ground.
- A Tool Steel Back Plate is supplied with Fixing T nuts to Mount the Chuck on It. Back Plate is Drill in a manner that it will fit both 3 as well as 4 slots Table. The Back side of the Plate has a locating Spigot to center the Mounting on to the Table.
- Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. It can be mounted both in Horizontal & vertical position. Hand wheel is graduated in divisions of 10 min & can be set to zero.
| UPC | 791115576725 |
|---|---|
| Capacity | 70 Millimeters |
| Lock Type | Independent |
| Brand Name | AD INTERNATIONAL |
| Handle Type | hand-tightened |
| Item Weight | 5.74 Kilograms |
| Thread Size | M6 |
| Manufacturer | ADI |
| Item Diameter | 70 Millimeters |
| Material Type | TOOL STEEL & CASTING |
| Compatible Devices | Milling Machine |
| Included Components | M6 Clamp Kit, T Nuts, Bolts, Back Plate with Fixings, 4 Jaws Independent Chuck |
