Mini PC N150 Firewall Hardware Inter 82599ES 2 x 10GbE SFP+,3 x i226V 2.5GbE LAN OPNsense Appliance,AES-NI, 2HD,NO RAM NO SSD (16GB RAM 256GB SSD)
4.0 (16 items)
Limited Time Sale$383.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209113766 | Release Date | 2026/03/29 | List Price | $256.00 | Model Number | 209113766 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

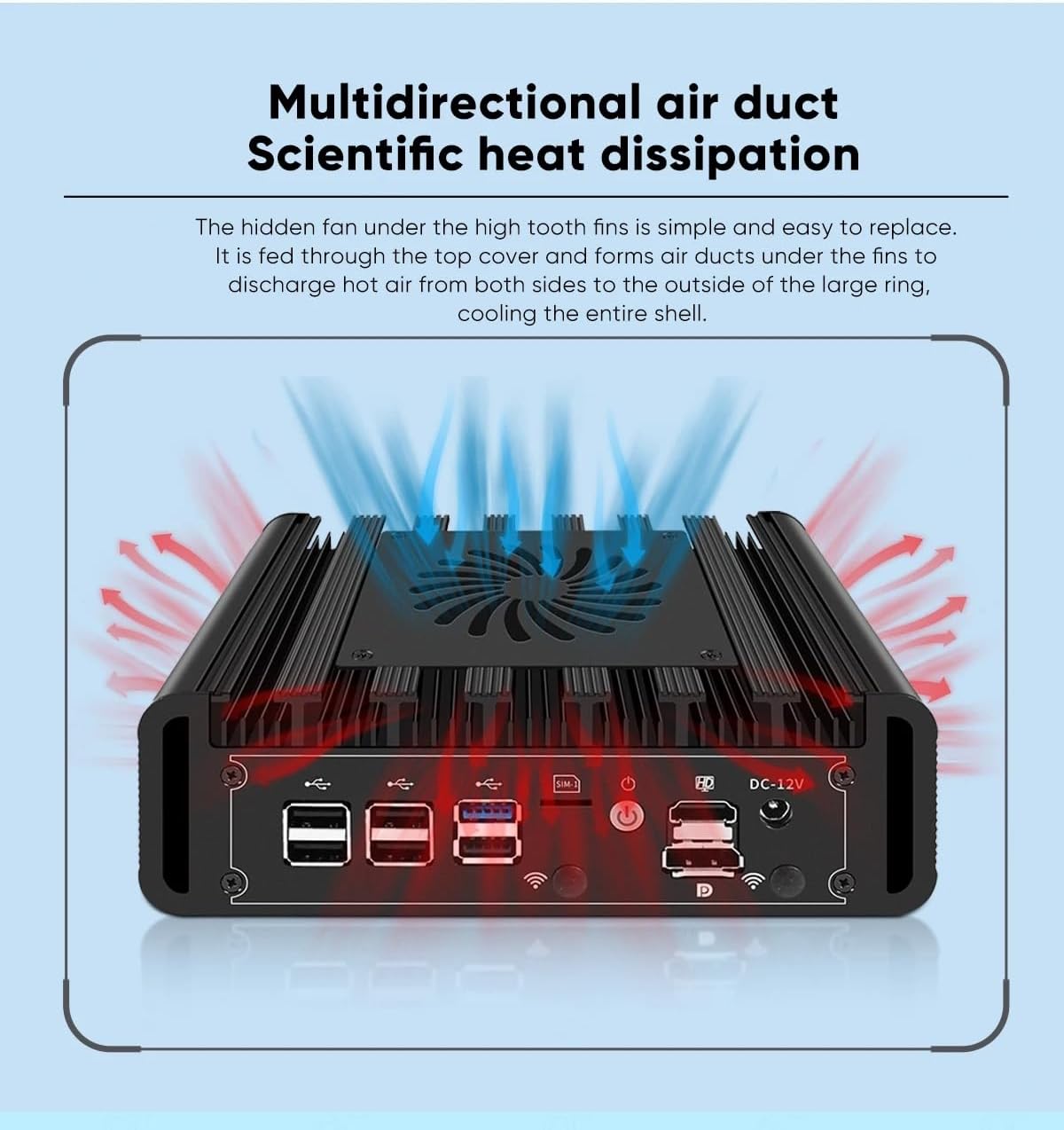

Product Highlight -Interr Alder Lake N150 4 cores 4 threads with inter UHD graphics, TDP 6W. -2xInter 82599ES 10G SFP+ ports, 3xInte i226-V 2.5G RJ45 LANs, 1xUSB3.2 Gen1, 5xUSB2.0. -1xDDR5 SODIMM non-ECC laptop ram slot, support 4800MHz. -Support 1xM.2 2280 NVMe/PCIe3.0x1 SSD. -1xHDMI2.0, 1xDP support 2x4K UHD video display. -AT/ATX model support Auto power on function, can be opened or closed by moving jumper on motherboard. -Support uEFI BIOS, AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc. -Low consumption TDP and can be mounted back of monitor by VESA bracket(optional to buy). -Innovation: It is flexible to change between fanless system and fan system. A fan built in solid aluminum case(size 177*125*54mm) with high tooth fins get much better heat dissipation to improve CPU performance significantly, sound of the fan is low. You can unplug fan pin off motherboard to make it fanless system if you want silence totally. Package List 1xMini PC 1xPower Adapter 1xPower Cable
- ◆Powerful N150 Processor: N150 Processor, 4 Cores 4 Threads, 6M Cache, Max Turbo Frequency 3.6 GHz, TDP 6W. Compatible with OPNsense, Linux, ESXI, Windows,OpenWrt and other systems. Press "Delete" key to enter BIOS setup, supports Auto Power On, Wake On Lake, GPIO, PXE
- ◆Dual 10GbE &Triple 2.5GbE LAN: Mini Router PC with 2 x 82599ES 10GbE SFP+, 3 x i226-V network card chip full UDE2.5G with filter connector, 2.5x faster than common Gigabit Ethernet. Soft Router can monitor network data, improve network security, powerful and widely used. 1xM.2 B key 3052 slot, 1xSIM slot, support 5G module wireless connection(optional to buy).1xM.2 E key 2230 slot, support only CNVio2 protocol WiFi Module(like Intel AX201, AX211 model, optional to buy).
- ◆DDR5 Memory & Large Storage Capacity: Firewall box computer with 1 x DDR5 SO-DIMM memory 4800MHz compatible with 5200/5600MHz, 1xM.2 2280 NVMe/PCIe3.0x1 SSD
- ◆UHD Graphics & Dual Display: N150 processor integrated UHD Graphics, HD and DP dual display interfaces support 4K@60Hz.
- ◆Rich interfaces: 2 x10GB SFP+, 3 x2.5G i226V-LAN, 2 xHD, 1 xUSB3.2, 5 xUSB2.0, 2Pin Phoenix Port, DC-IN, SPK/MIC supports data storage and system boot.
| Brand | UDPTCP |
|---|---|
| RAM Type | SODIMM |
| Model Name | N100/6L |
| Resolution | 3840 x 2160 |
| Style Name | Modern/Sleek |
| Aspect Ratio | 16:9 |
| Display Type | LED, 4K |
| Manufacturer | UDPTCP |
| Memory Speed | 4800 MHz |
| Model Number | N100/6L |
| Video Output | HDMI |
| BuiltIn Media | Water Cooling |
| Cooling Method | Fan |
| Keyboard Layout | QWERTY |
| Processor Brand | Inter |
| Processor Count | 1 |
| Processor Speed | 0.8 GHz |
| Total Usb Ports | 6 |
| Video Processor | Inter |
| CPU Model Number | N150 |
| Operating System | Windows |
| Processor Series | Celeron |
| Processor Socket | BGA 1264 |
| Graphics Ram Type | L2 cache |
| Native Resolution | 3840 x 2160 |
| Hardware Interface | 3.5mm Audio, DisplayPort, Ethernet, HDMI, USB |
| Memory Clock Speed | 4800 GHz |
| Hard Disk Interface | Serial ATA |
| Graphics Coprocessor | Inter UHD Graphics |
| Graphics Description | Integrated |
| HumanInterface Input | Mouse |
| Warranty Description | One year warranty |
| Hard Disk Description | SSD |
| RAM Memory Technology | DDR5 |
| Memory Slots Available | 1 |
| Video Output Interface | HDMI, DisplayPort |
| CPU Model Speed Maximum | 3.6 GHz |
| Connectivity Technology | Ethernet, USB |
| Graphics Card Interface | Integrated |
| Ram Memory Maximum Size | 16 GB |
| Specific Uses For Product | Everyday Use |
| Display Resolution Maximum | 3840x2160 |
| Total Number of HDMI Ports | 1 |
| Number of Component Outputs | 2 |
| Personal Computer Design Type | Mini PC |
