MN1A/ZL-S1 Mini Peristaltic Pump Low-Flow Titration Pump 24V 280R MAX 135ml/min Geared DC Motor Self-Priming Circulation Compact Water Pump (Blue, ID4mm*OD6mm)
4.6 (95 items)
Limited Time Sale$34.80 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210858319 | Release Date | 2026/04/04 | List Price | $23.20 | Model Number | 210858319 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Important: The hose is consumable and prone to wear and tear due to frequent use. Regular inspection and replacement are recommended.If you are pumping corrosive liquids, we highly recommend purchasing alternative chemical-resistant tubing separately. Our standard silicone tubing may not be compatible. Please feel free to consult us for suitable alternatives.Specification:Product Name: MN1A-S1/ZL Peristaltic PumpMotor Type: DC MotorSpeed Range: 120R~280RPower Supply: DC 12V~24VMaximum Power: 5WOutlet pressure: ≤0.17MPaPaNoise: 48dBNet Weight: 120gWorking Environment: temperature 0~60°C, relative humidity <85%RHFunctions: Start/Stop, Forward/Reverse (by reversing wiring sequence), Speed Adjustment (with DC speed control board)Primary Materials: Pump Cover (Polycarbonate), Wheel Assembly (Polyamide), Base (Polyamide)Maximum Flow Rate (12V~24V, 120R~280R, Rusing clean water): 2*1 (ID2mm*OD4mm) 15~40ml/min3*1 (ID3mm*OD5mm) 35~75ml/min4*1 (ID4mm*OD6mm) 55~135ml/minFeature:The pump accepts hoses with a wall thickness of 1mm.Hose installation is quick and easy. Standard configuration 3 Rollers: spring-loaded pressure rollers, adaptive hose wall thickness adjustment, effectively extending hose lifespan.Compact structural design: only 40 millimeters wide, occupying minimal space.Snap-fit Installation Mechanism: Tool-free assembly and disassembly for quick hose replacement and maintenance.Strictly selected premium motors deliver powerful performance.The base features built-in mounting holes and can be equipped with an optional mounting plate.Application:Transferring detergent washing machines, dishwashers Analytical instruments: analyzer for sampling.Printing equipmentTransferring ink Food machinery Beverage machine Kitchen equipmentLaundry equipmentCar wash Equipment

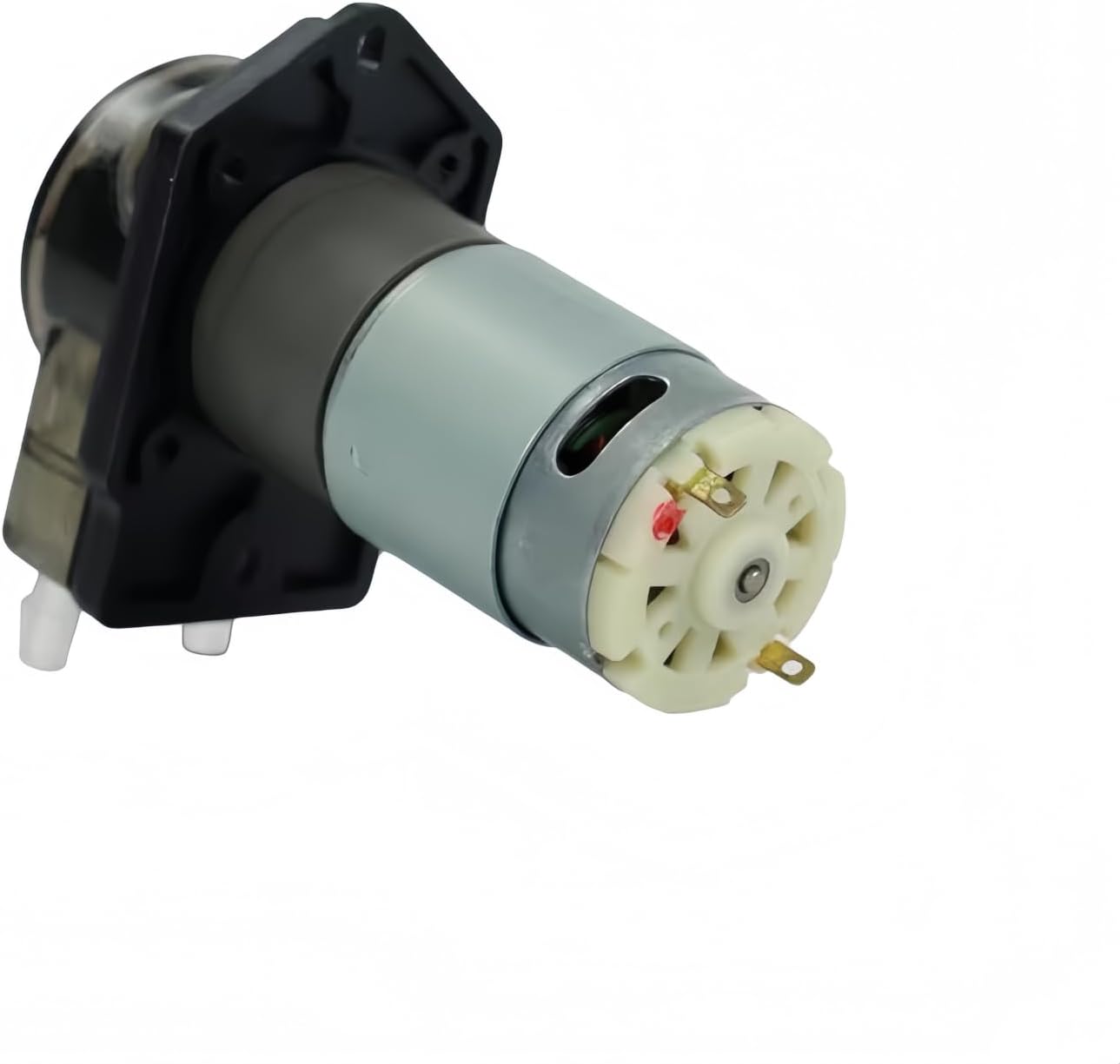

- Motor: Geared DC Motor; Speed: 120R~280R; Voltage: DC 12V~24V ≤5W
- Flow rate: 0~60ml/min, tubing size: 2*1 (ID2mm*OD4mm), 3*1 (ID3mm*OD5mm), 4*1(ID4mm*OD5mm)
- Standard configuration 3 Rollers: spring-loaded pressure rollers, adaptive hose wall thickness adjustment, effectively extending hose lifespan
- Snap-fit Installation Mechanism: Tool-free assembly and disassembly for quick hose replacement and maintenance
- Compact structural design: only 40 millimeters wide, occupying minimal space
| Color | Blue |
|---|---|
| Voltage | 24 Volts |
| Flow Rate | 135 Microliters Per Minute |
| Brand Name | Generic |
| Item Weight | 2 Kilograms |
| Manufacturer | TODA Fluid Control |
| Model Number | MN1A/ZL-S1 |
| Power Source | Corded Electric |
| Material Type | Plastic |
| Product Style | Laboratory, Food Machinery |
| Included Components | Peristaltic Pump |
| Item Dimensions L x W x H | 2.56"L x 2.59"W x 1.57"H |
