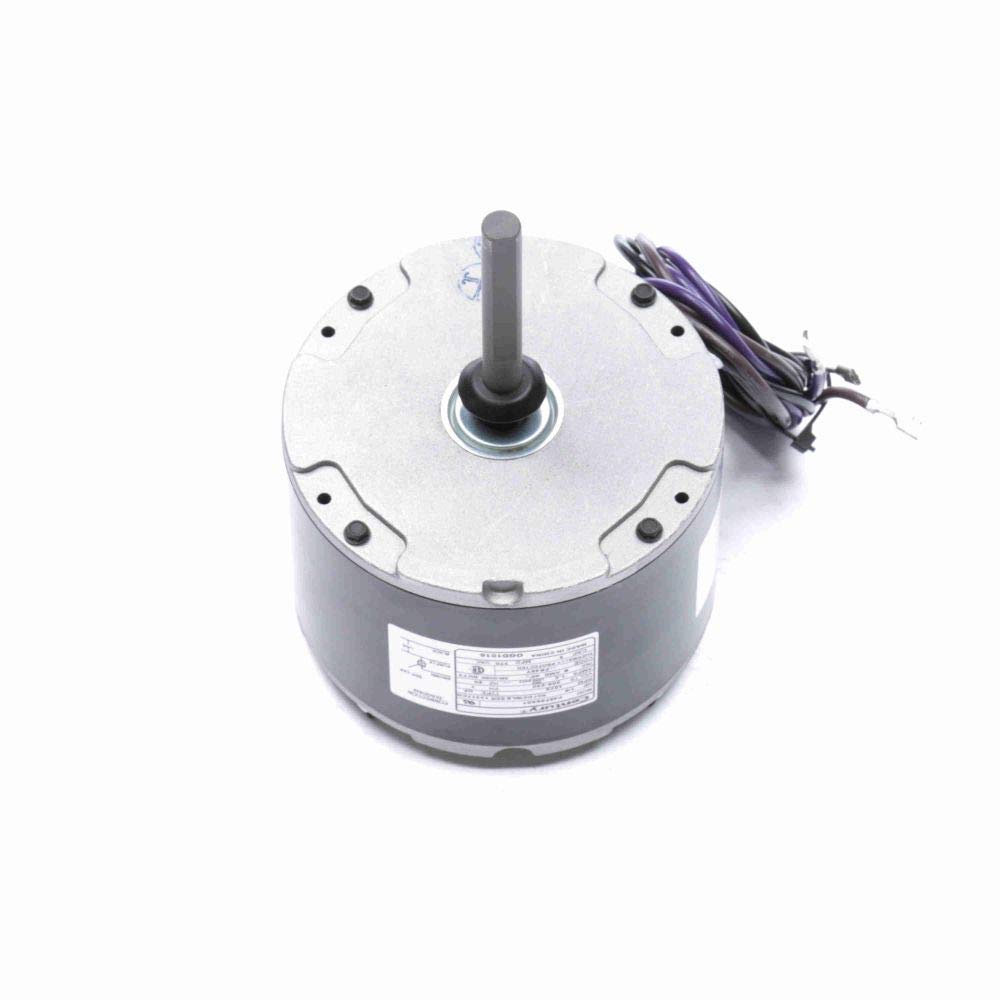

Motor, PSC, 1/6 HP, 1075, 208-230V, 48Y, TEAO

' Direct Drive Blower Motor, Permanent Split Capacitor Motor Type, Totally Enclosed Air-Over Enclosure, 1/6 HP, 1075 Nameplate RPM, Voltage 208-230, 1.0 Full Load Amps, 60 Hz, 1 Phase, 48Y Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 1, Mounting Stud, Shaft Orientation Down, Bearings Sleeve, Thermal Protection Auto, Rotation CCWLE, Body Dia. 5-5/8 In., Length Less Shaft 3-7/8 In., Overall Length 7-11/16 In., Shaft Dia. 1/2 In. '

• Price For: Each Hz: 60 Motor Service Factor: 1.00 Stud Size: #8-32 Mounting Stud Pattern: 3-5/8" x 3-5/8" Phase: 1 Manufacturers Warranty Length: 1 yr. Motor Sub Application: Direct Dr Fan/Blower Motor Application: HVAC/R Motor Enclosure Design: Totally Enclosed Air-Over Item: Direct Drive Blower Motor Motor Thermal Protection: Auto Motor Design: Permanent Split Capacitor
• Shaft Dia.: 1/2" Standards: UL Recognized (E46412), CSA Certified (LR43341) Capacitor Required: 2MDV4 No. of Speeds: 1 Nameplate RPM: 1075 Max. Ambient Temp.: 40 Degrees C HP: 1/6 Length Less Shaft: 3-7/8" Full Load Amps: 1.0 Body Dia.: 5-5/8" Application: Goodman, Janitrol Bolt Circle Dia.: 5.15" Voltage Compatibility: 115/208-230, 208-230, 208-240 Frame: 48Y Ins. Class: B
• Motor Bearings: Sleeve Voltage: 208-230 Motor Shaft Rotation: CCWLE Shaft Length: 3-3/4" Motor Shaft Design: Flat Overall Length: 7-11/16" Motor Mounting Type: Stud Country of Origin (subject to change): China
