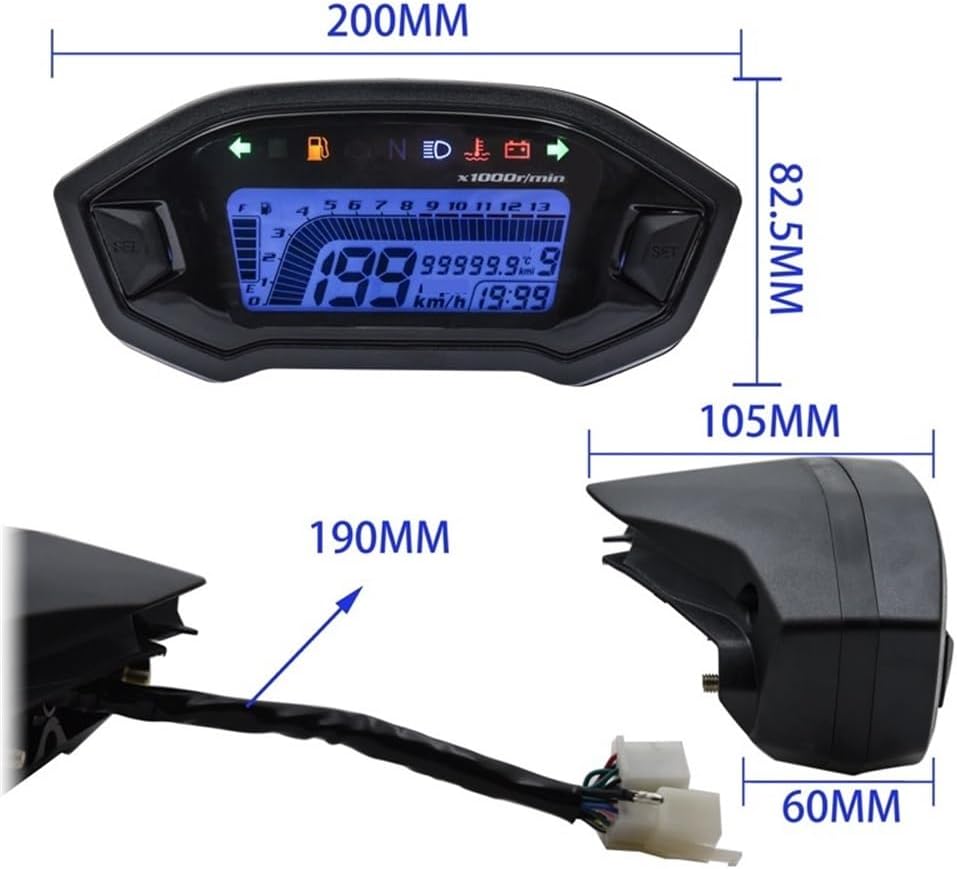

Motorcycle Odometer Gauge 12V Motorcycle Digital Indicator Tachometer For Grom 125 For MSX125 Odometer Velocimetro meter

Before purchasing, please make sure the product size is suitable for your motorcycle vehicle12V Motorcycle Digital Indicator Tachometer For Grom 125 For MSX125 Odometer Velocimetro meterUniversal Motorcycle Digital 13000rpm Tachometer Backlight Motor cycle for 2-4 Cylinders meter Odometer Feature:As a practical equiment for your Motorcycle.Engine trouble light reminding.Displaying time.Total travel distance.Product Name: Motorcycle OdometerBlack: positive yellowRed: battery positive blue redBlue: High beam 12V is controlled Green BlackBlue and white: fuel signal lineBlack and white: sensor signalOperating voltage: 10V-15VSpeed calibration: 42.5Hz corresponds to 60KMHGreen: negative sensorSpeed calibration: 166Hz corresponds to 13*1000r minscreen: 7 colors backlight short press to switchVoltage: Less than 11.3V undervoltage For symbol flashes higher than 11.7V undervoltage For symbol is not displayedFuel calibration: E point 98 F point 8Orange: Left turn 12V positive control yellow whiteLight blue: Turn right 12V is controlled Green Red

• Application：12V Motorcycle Digital Indicator Tachometer For Grom 125 For MSX125 Odometer Velocimetro meter
• Function: The motorcycle odometer is not only a simple tool to record the distance traveled but also an indispensable part of the riding experience.
• Design: The motorcycle odometer has a exquisite and soft appearance safe and environmentally friendly
• INSTALLATION: The method of installing and removing the odometer is simple and easy to operate, no drilling and cutting required.
• Service: if you need any advice, please feel free to contact us!
