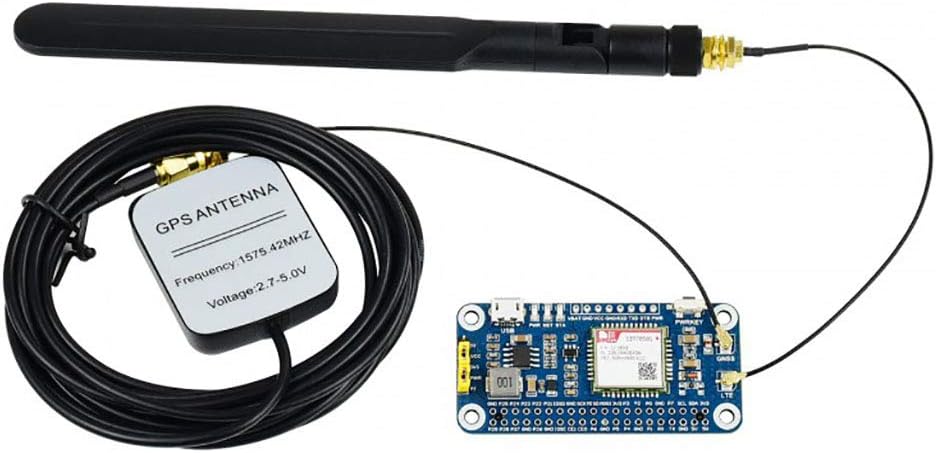

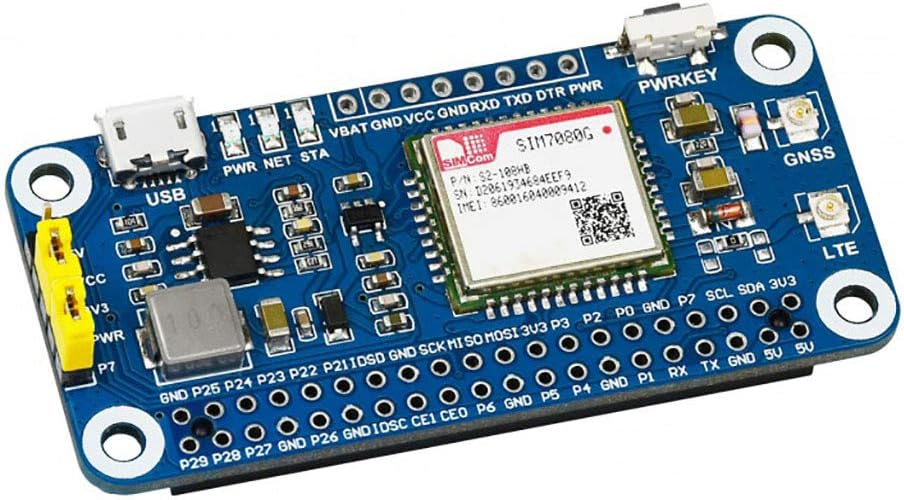

NB-IoT/Cat-M(eMTC)/GNSS HAT for Raspberry Pi Based on SIM7080G Supports Protocols as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT Globally Applicable

Overview This is a telecommunication HAT which features multi communication functionalities: NB-IoT (NarrowBand-Internet of Things), Cat-M (aka eMTC, enhanced Machine Type Communication), and GNSS (Global Navigation Satellite System). With the developing of telecommunication technology LTE, 2G/3G networks are fading away, the future world would be dominated by IoT technologies consisting of low bandwidth NB-IoT/Cat-M and high bandwidth 4G/5G standards. This HAT supports global bands of NB-IoT and Cat-M, as well as positioning function. Due to its advantages like small size, low delay, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, and so on. Features Standard Pi 40PIN GPIO extension header, fits Raspberry Pi series boardsSupports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTTSupports GNSS positioning (GPS, GLONASS, BeiDou, and Galileo)Onboard USB interface, to test AT Commands, get GPS positioning data, and so onBreakout UART control pins, to connect with host boards like Arduino/STM32Onboard voltage translator, 3.3V by default, allows to be switched to 5V via onboard jumperSIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available)3x LED indicators, easy to monitor the working statusBaudrate: 300~3686400 bpsCommon baudrate auto-negotiation: 9600/19200/38400/57600/115200 bpsComes with development resources and manual (examples for Raspberry Pi/Arduino/STM32) PACKAGE CONTENT 1. SIM7080G Cat-M/NB-IoT HAT x1 2. LTE antenna x1 3. GPS External Antenna (B) x1 4. USB type A plug to micro plug cable x1 5. 2×20PIN female header x1 6. RPi screws pack (2pcs) x1

• Standard Pi 40PIN GPIO extension header, fits Raspberry Pi series boards
• Supports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT;Supports GNSS positioning (GPS, GLONASS, BeiDou, and Galileo)
• Onboard USB interface, to test AT Commands, get GPS positioning data, and so on; Onboard voltage translator, 3.3V by default, allows to be switched to 5V via onboard jumper; Common baudrate auto-negotiation: 9600/19200/38400/57600/115200 bps

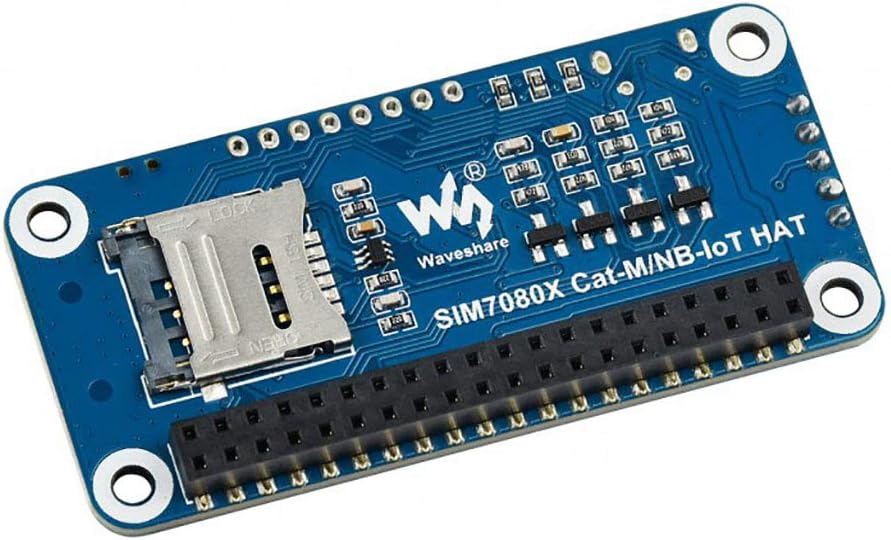

• Breakout UART control pins, to connect with host boards like Arduino/STM32; SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available);3x LED indicators, easy to monitor the working status;Baudrate: 300~3686400 bps
