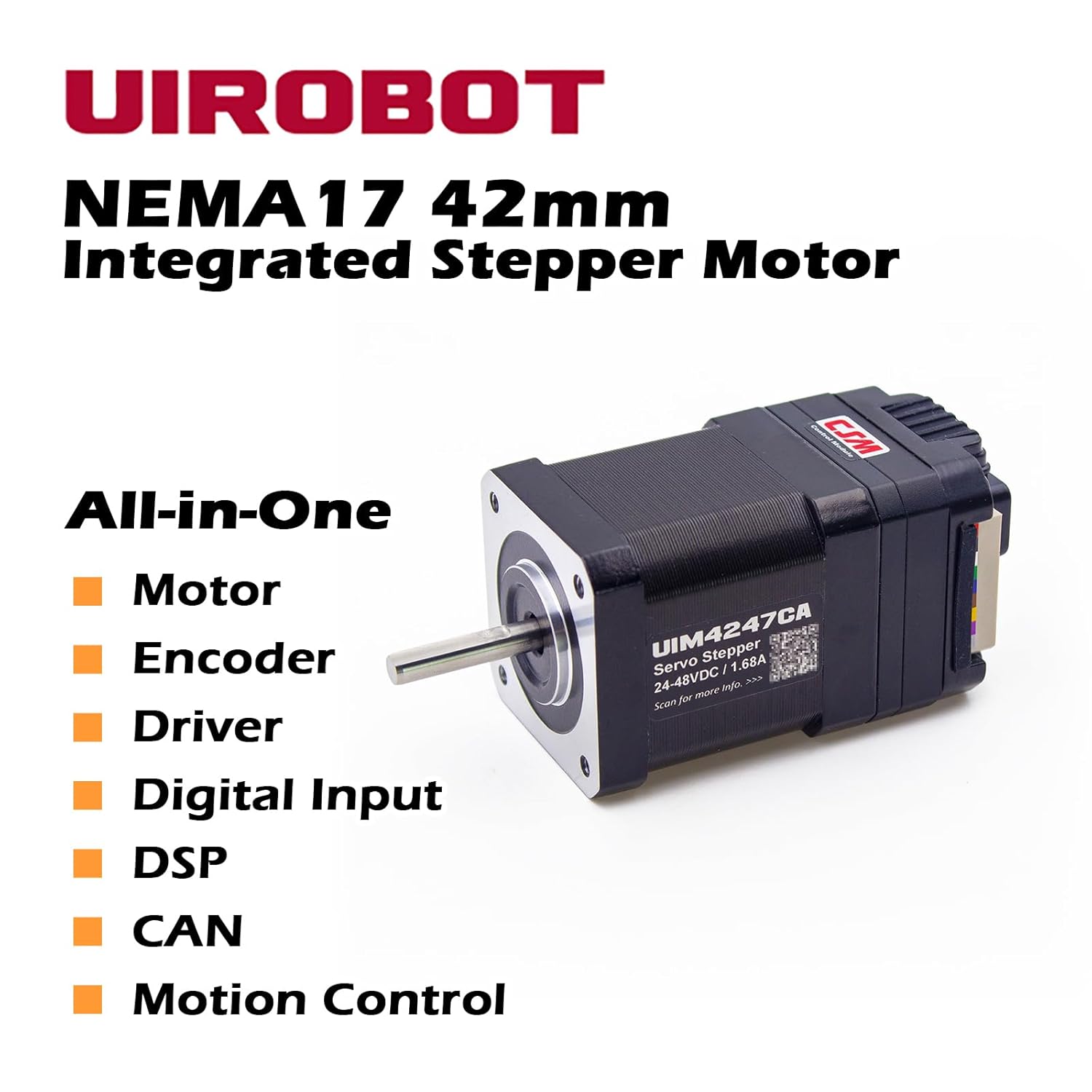

NEMA 17 Integrated Servo Stepper Motor with Built-in Multi-Turn Absolute Encoder,Closed-Loop Servo Motion Controller and Driver,CAN Bus,High Speed 3000RPM,Max0.43Nm,1.7A,24-48VDC(UIM4247CA)
4.7 (20 items)
Limited Time Sale$87.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211221656 | Release Date | 2026/04/04 | List Price | $58.40 | Model Number | 211221656 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【MULTI-TURN ABSOLUTE ENCODER】 Our smart motor integrates a NEMA 17 Absolute Multi-Turn Encoder with 17-bit single-turn and 32-bit multi-turn resolution. Featuring Power-Off Memory technology, it maintains exact positioning after shutdown without requiring re-zeroing, saving valuable time while boosting operational efficiency.
- 【EXCELLENT DESIGN】 The motor features CAN interface with superior anti-interference capability, delivering reliable performance through digital outputs for stable operation in harsh environments. Its closed-loop motion system ensures high positioning accuracy and fast response, achieving speeds up to 3000 RPM. Multiple control functions include speed control, position control, backlash compensation, and stall detection.
- 【POWERFUL TECHNICAL SUPPORT】 This NEMA 17 stepper motor incorporates a robust DSP core with fault tolerance and fail-safe user interface, complete with free debug/control software plus full SDK support including libraries, DLLs, and example codes in C++ and C#.
- 【PERFECT REPLACEMENT】 Delivering 0.43 N·m holding torque with 1-128 microstepping resolution, this compact motor operates on 24-48 VDC with adjustable 0.8-1.7A current. Its vibration-free and low noise operation makes it an exceptional alternative to traditional AC/DC servo motors.
- 【VERSATILE APPLICATIONS】 Ideal for high-precision, high-reliability applications including industrial robotics (joint positioning), CNC machines, and automated warehousing, among others. Using the CANBUS protocol, multiple motors can communicate simultaneously to achieve complex motion control.
| Model | UIM4247CA |
|---|---|
| Speed | 3000 RPM |
| Voltage | 48 Volts (DC) |
| Brand Name | UIROBOT |
| Model Name | UIM4247CA |
| Item Weight | 0.53 Kilograms |
| Manufacturer | UIROBOT |
| Material Type | Aluminum, Metal |
| Included Components | UIM4247CA Smart Motor |
