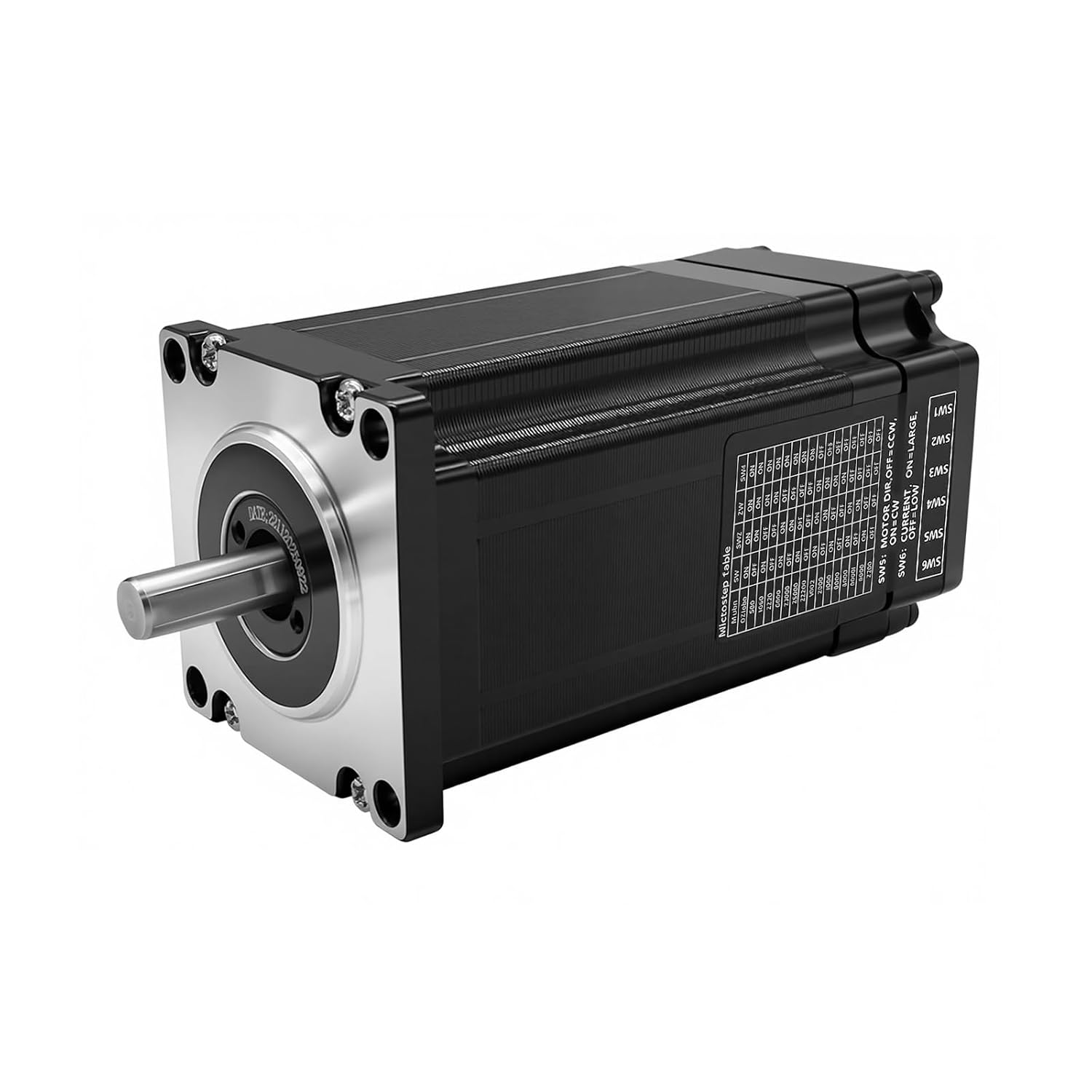

Nema 23 57mm Stepper Motor Integrated Servo Step Motors with Encoder Driver System Smart Closed Loop Step Motor 3.2 Nm 1000RPM 0~4.0A 24~55 VDC for Robots Cutting Marking CNC Router Engraving Machine
4.2 (75 items)
Limited Time Sale$47.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211763941 | Release Date | 2026/04/04 | List Price | $32.00 | Model Number | 211763941 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- HIGH TORQUE: Holding Torque 3.2 Nm. Running with no vibration/noise and high torque, good substitution of AC/DC servo stepper motor at low speed.
- FULLY FUNCTIONAL: Our high torque stepper motor is a Nema23 57mm, all-in-one integrated CAN interface smart servo step motor that comes with an encoder, motor driver, in an alloy aluminum case.

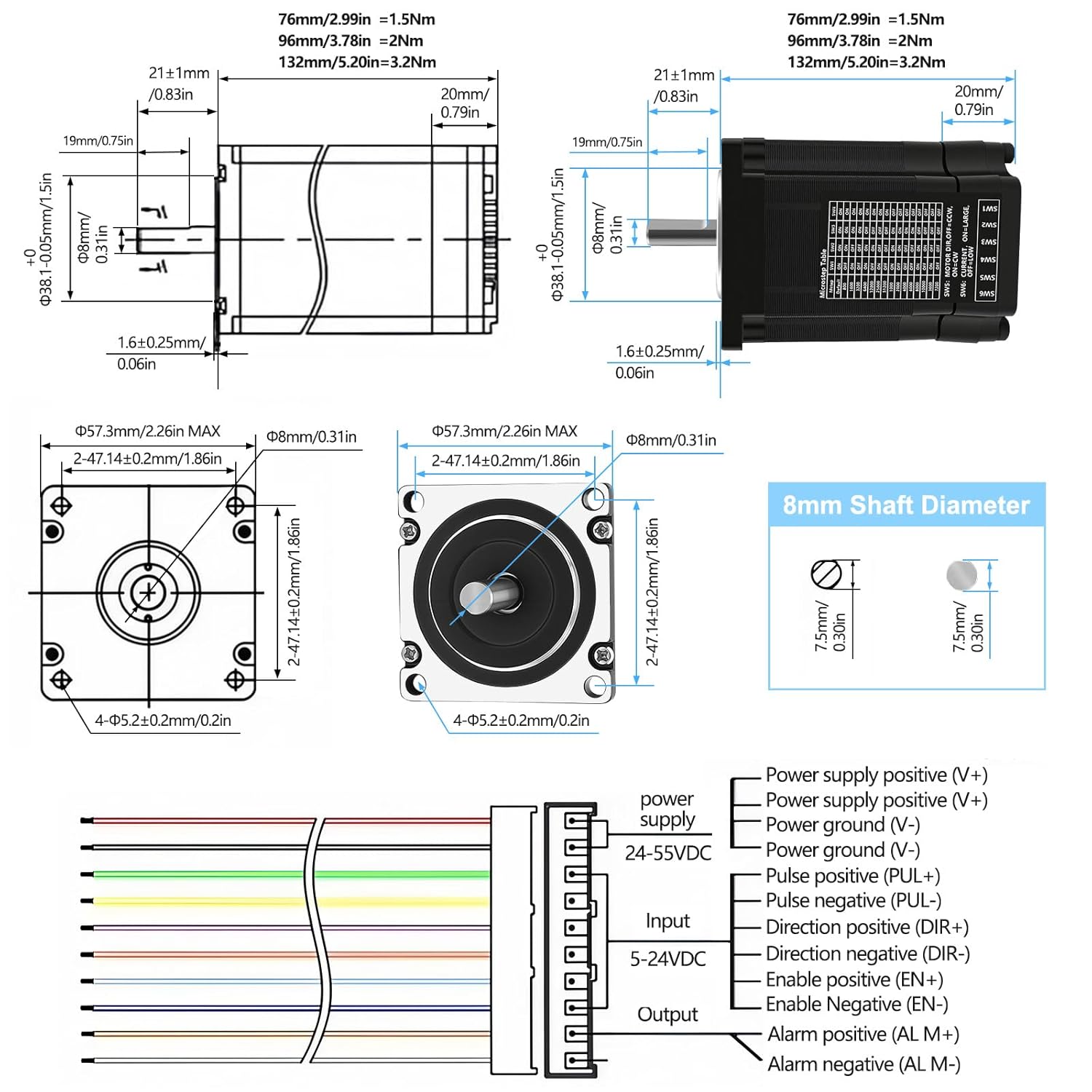

- SPECIFICATIONS: Type: Hybrid; Encoder line number: 1000; Motor length: 57x57x132mm / 2.24*2.24*5.2 inch; Shaft Diameter:8mm; Lead wire: 4; Support DC Power Supply:DC24-55V; Current: 4A.
- HIGH PRECISION: It is a new motor-driven integrated hybrid servo drive system with communication function.Using a new generation of 32-bit DSP control and closed-loop control, it can prevent out-of-step and ensure the accuracy of the product.
- EXCELLENT DESIGN: Closed-loop motion, high positioning accuracy, fast response, and high speed to 1000 rpm. Supports speed control mode, position control mode, backlash compensation, stall detection, and many other control functions.
| Model | Integrated Nema23 Stepper Motor |
|---|---|
| Speed | 1000 RPM |
| Voltage | 24 Volts (DC) |
| Brand Name | TOSEASTARS |
| Manufacturer | TOSEASTARS |
| Material Type | Alloy Steel |
| Included Components | Integrated Servo System Smart Stepper Motors |
| Item Dimensions W x H | 2.24"W x 5.19"H |
