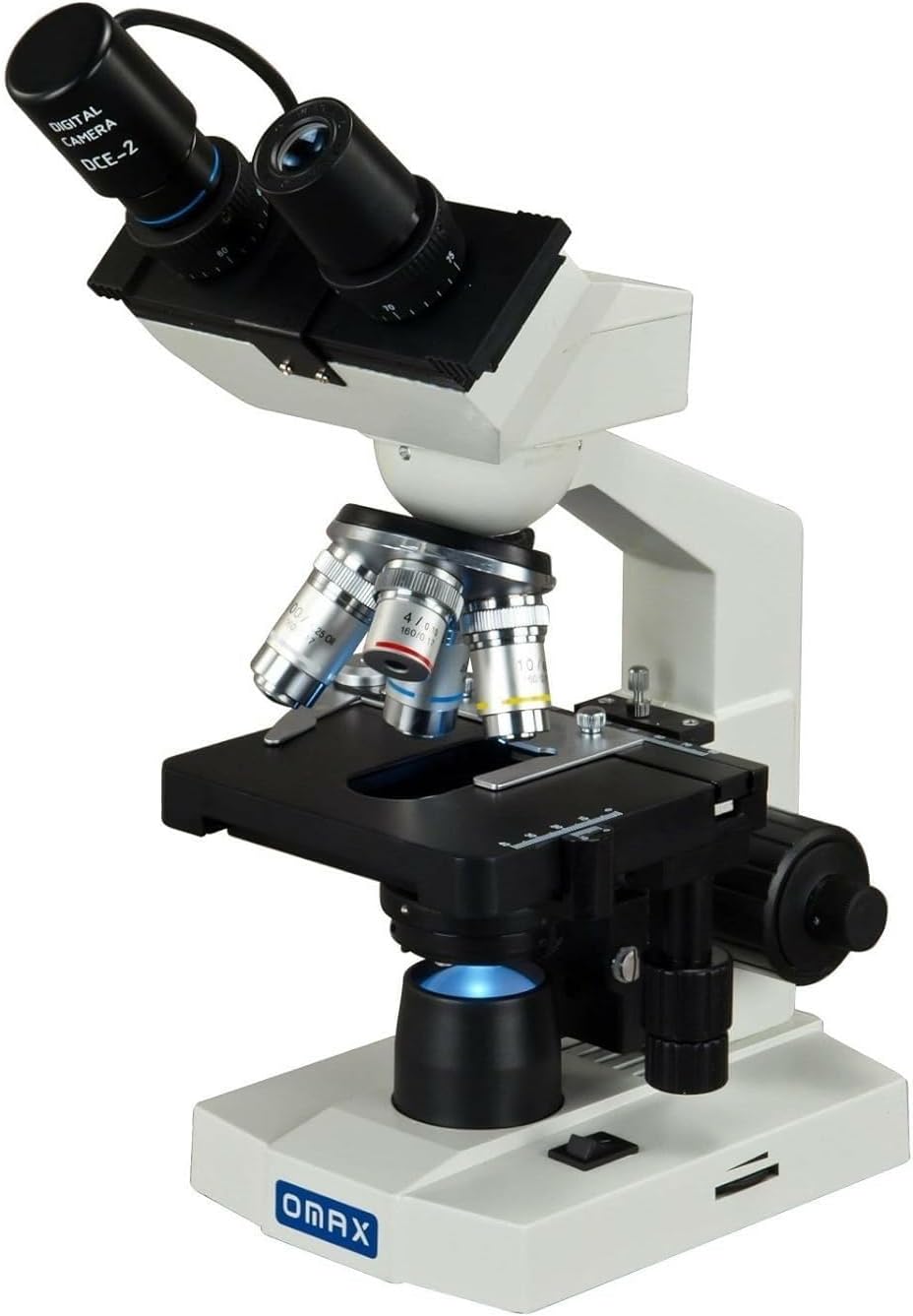

OMAX 40X-2500X Lab Binocular Compound LED Microscope with Double Layer Mechanical Stage and Digital Camera M82EZ-C02
5.0 (19 items)
Limited Time Sale$155.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211999138 | Release Date | 2026/04/06 | List Price | $104.00 | Model Number | 211999138 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: wide field WF10X and WF25X; Objective: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Sliding adjustable interpupillary distance: 2-3/16inch ~ 2-15/16inch(55~75mm); Ocular diopter adjustable on both eye tubes. Nosepiece: revolving quadruple; Stage: mechanical double layer size: 4-1/2inchx 4-15/16inch (115mm x 125mm); Stage x-y stroke (travel range): 2-13/16inch x 1-3/16inch (70mm x 30mm); Condenser and diaphragm: NA1.25 Abbe condenser with iris diaphragm; Transmitted (lower) illuminator: LED light, intensity adjustable. Focus adjustment: Coaxial coarse and fine knobs on both sides; All metal mechanical components; Power supply: AC/DC adapter, 7.5V/7.5W (UL approved) - Input: 100-240VAC, 50/60Hz, 0.5A Max - Output: DC7.5V, 1000mA. Digital camera: - true color 640 x 480 pixels - 0.45X reduction lens to get larger field of view - Software compatible with Windows XP/Vista/7/8/10, and Mac OS - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images.
- Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: wide field WF10X and WF25X; Objective: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Sliding adjustable interpupillary distance: 2-3/16inch ~ 2-15/16inch(55~75mm); Ocular diopter adjustable on both eye tubes
- Nosepiece: revolving quadruple; Stage: mechanical double layer size: 4-1/2inchx 4-15/16inch (115mm x 125mm); Stage x-y stroke (travel range): 2-13/16inch x 1-3/16inch (70mm x 30mm); Condenser and diaphragm: NA1.25 Abbe condenser with iris diaphragm; Transmitted (lower) illuminator: LED light, intensity adjustable
- Focus adjustment: Coaxial coarse and fine knobs on both sides; All metal mechanical components; Power supply: AC/DC adapter, 7.5V/7.5W (UL approved) - Input: 100-240VAC, 50/60Hz, 0.5A Max - Output: DC7.5V, 1000mA
- Digital camera: - true color 640 x 480 pixels - 0.45X reduction lens to get larger field of view - Software compatible with Windows XP/Vista/7/8/10, and Mac OS - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images
- 5-year warranty against manufacturing defects
| UPC | 670541476161 |
|---|---|
| Brand | OMAX |
| Color | Black, Silver, White |
| Voltage | 7.5 Volts |
| Model Name | M82EZ |
| Unit Count | 1.0 Count |
| Manufacturer | OMAX |
| Model Number | M82EZ-C02 |
| Power Source | Corded Electric |
| BuiltIn Media | science-lab-compound-microscopes |
| Light Source Type | LED |
| Enclosure Material | Metal |
| Real Angle Of View | 45 Degrees |
| Warranty Description | 5 Year Manufacturer |
| Magnification Maximum | 2500 x |
| Manufacturer Part Number | M82EZ-C02 |
| Objective Lens Description | Achromatic |
