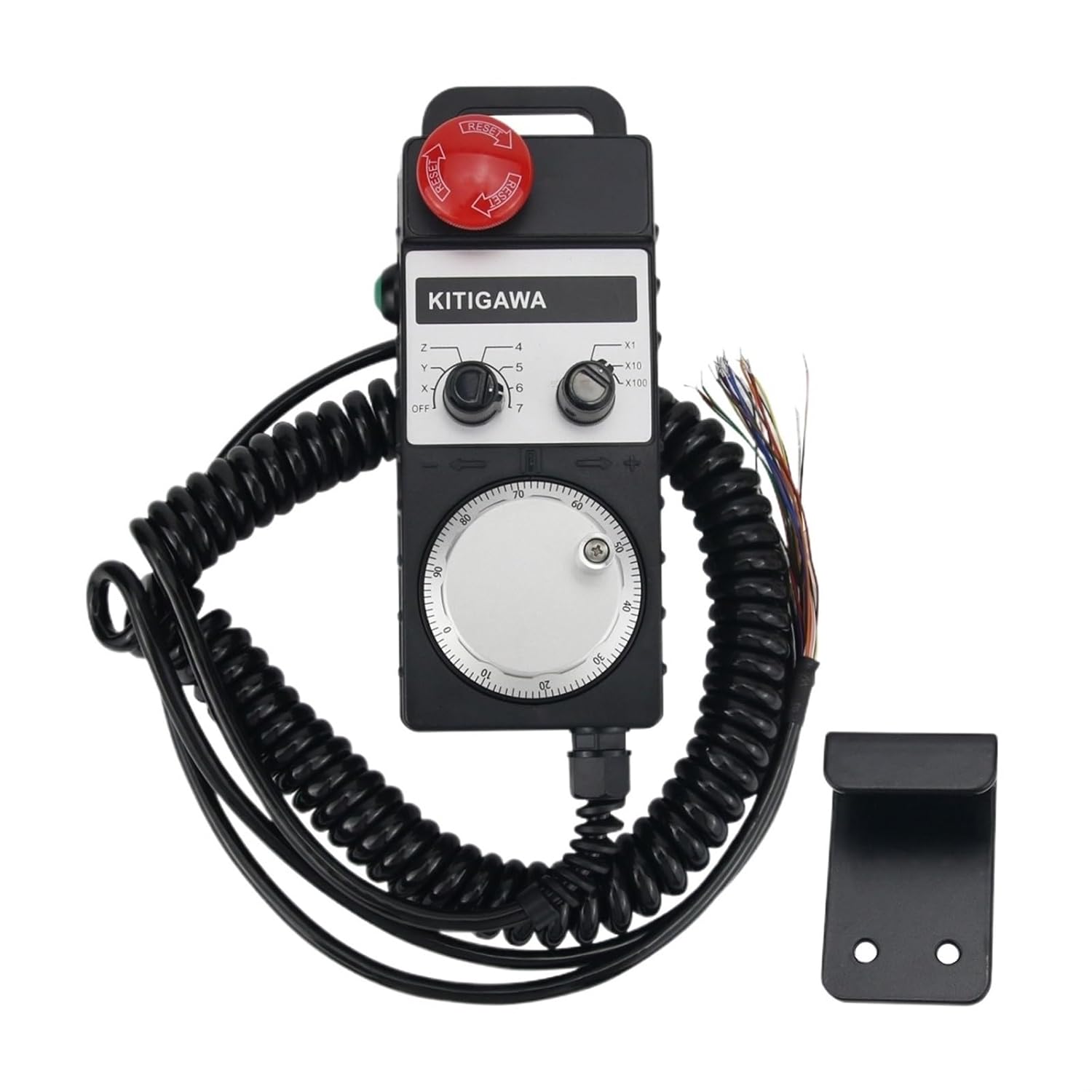

OMT004 7Axis Manual Pulse Generator Handwheel 100PPR 5V with Emergency Stop Button Universal Type

Pulse GeneratorsOMT004 7Axis Manual Pulse Generator Handwheel 100PPR 5V with Emergency Stop Button Universal Type Features:- 7-Axis MPG manual pulse generator- Comes with emergency stop button- Voltage 5V 100PPR, Output Phases A A- B B-: It fits for 98% of Chinese systems - Its switch is provided by well-known producers- Light weight and metal panel- Elegant appearance and fine workmanship- Perfect for manual pulse input such as NC line board, machines, zero correction and division of printing machineryTechnical Parameters:Electrical Parameters:- Output Waveform: Square Wave- Output Phase: AB Phases- Current Consumption: 100mA- Response Frequency: 0 to 20KHz- Duty Ratio: 0.5T±0.1T- Phase Difference: 90°±45°- Power Supply Voltage: 5V- Output Voltage: High Level 85%Vcc, Low Level 0.3V- Number of Pulses: 100 PPRMechanical Specifications:- Position Signal: 2 Kinds- Max. Speed: 500rpm- Starting : 2 x 10 -2 to 6 x 10-2 Nm (+25)- Shock Resistance: 980m/s2, 6ms, twice in X Y Z directions- Anti-Vibration: 50m/s2, 10 to 200Hz, 2h for X Y Z directions separately- Life Span: MTBF 10000hg (+25, 2000rpm)- Weight: approx. 640gEnvironmental Specifications:- Operating Humidity: 30% to 85% (Without condensation)- Storage Temperature: -30 to 85- Operating Temperature: -10 to 70- Protection: Waterproof, Oil-proof, Dust-proof IP54Package Included:- 1 x Manual Pulse Generator w/ 1.6m Spring CableNote: Please not that this MPG comes with emergency stop button.
